New ContributorCannot Generate Timing Report in TimeQuest Timing Analyzer

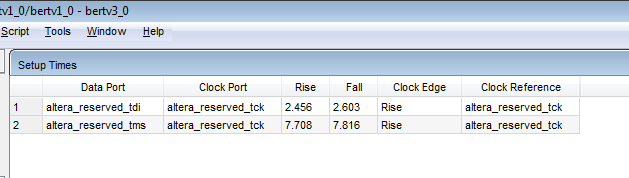

Hi, I'm looking to investigate the setup times for a design I have. However, despite following AN 775 as best I as I can, I am not generating any outputs from my design. Instead all I see are two Data ports which I haven't declared myself in my design...
Here is the pin planner - it shows these extra pins, but also my own data ports.
Furthermore here are my declared ports in my top level file.
module bertfront(
input clk,
input inbitstream,
input [1:0] control, //[1] start, [0] reset
output outbitstream,
output reg ledstatus,
output reg [31:0] totalbits,
output reg [31:0] incorrectbits
);Can anyone shed some light as to why I'm not seeing my own data ports in the timing analysis? If you need any more code I would be happy to share the entire project.
1 Reply
AnandRaj_S_IntelRegular Contributor
Hi Ted,
When we debug your design with the JTAG interface, the JTAG signals TCK, TMS, TDI, and TDO are implemented as part of the design.
The altera_reserved_tck/tms/tdi pin is automatically generated for a design that uses a JTAG accessible module such as the Nios II debugger, SignalTap II logic analyzer, and In-System Memory Content Editor.
For timing constraint those pins
To constrain this JTAG clock, apply a 33-MHz clock constraint to this pin.
For the TimeQuest Timing Analyzer, use the following command:
create_clock -period "30.303 ns" -name {altera_reserved_tck} {altera_reserved_tck}
Reference
https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/solutions/rd04282008_867.html
https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/manual/mnl_timequest_cookbook.pdf
Let me know if this has helped resolve the issue you are facing or if you need any further assistance.
Regards
Anand
