Barrel shifter coding using mux

--- Quote Start ---

What help do you need? what problems are you having doing it yourself?

--- Quote End ---

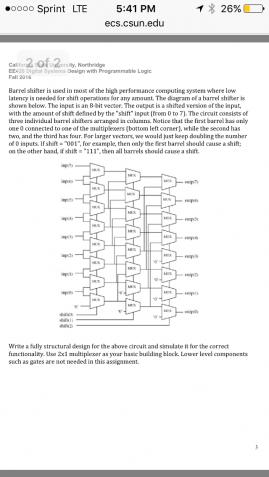

Yes I am new to VHDL and don't quite understand all the commands I have one barrel shifter constructed but I don't know how to combine the other two barrel shifters with the signal command and I don't know exactly how I would write the code to get all barrels to shift. I know I probably need to select a signal that acts like a switch.

--- Quote Start ---

Thats sounds plausible - have a go and come back here when you're having problems with your code.

--- Quote End ---

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

use IEEE.NUMERIC_STD.all;

entity barrel_shifter_8bit is

Port (

data: in std_logic_vector(7 downto 0);

data_out: out std_logic_vector(7 downto 0);

ctrl: in std_logic_vector(2 downto 0)

);

end barrel_shifter_8bit;

architecture Behavioral of barrel_shifter_8bit is

begin

with ctrl select

data_out<= data(0)& data(7 downto 1) when "001",

data(1 downto 0)& data(7 downto 2) when "010",

data(2 downto 0)& data(7 downto 3) when "011",

data(3 downto 0)& data(7 downto 4) when "100",

data(4 downto 0)& data(7 downto 5) when "101",

data(5 downto 0)& data(7 downto 6) when "110",

data(6 downto 0)& data(7) when "111",

data when others;

end architecture Behavioral;

-----This is what I have so far I'm stuck on transfering the output to the next column of the barrel shifter.

library IEEE;

use IEEE.STD_LOGIC_1164.ALL;

use IEEE.NUMERIC_STD.all;

entity barrel_shifter_8bit is

Port (

data: in std_logic_vector(7 downto 0);

data_out: out std_logic_vector(7 downto 0);

ctrl: in std_logic_vector(2 downto 0)

);

end barrel_shifter_8bit;

architecture Behavioral of barrel_shifter_8bit is

component barrel_shifter_8bit1 is

Port (

input: in std_logic_vector(15 downto 0);

data_out: out std_logic_vector(7 downto 0);

ctrl: in std_logic_vector(2 downto 0)

);

end component;

component barrel_shifter_8bit2 is

Port (

input: std_logic_vector(15 downto 0);

data_out: out std_logic_vector(7 downto 0);

ctrl: in std_logic_vector(2 downto 0)

);

end component;

component barrel_shifter_8bit3 is

Port (

input: in std_logic_vector(15 downto 0);

data_out: out std_logic_vector(7 downto 0);

ctrl: in std_logic_vector(2 downto 0)

);

end component;

signal sig1, sig2: std_logic_vector;

begin

unit1: barrel_shifter_8bit1

port map (data7 =>input0, data6=>input1 and input2, data5=>input3 and input4,data4=>input5 and input6,

data3=>input7 and input8, data2=>input9 and input10, data1=>input11 and input12, data0=>input13 and input14,

input0 => 0);

unit2: barrel_shifter_8bit2

port map(

unit3: barrel_shifter_8bit3

port map()

end str_arch;

with ctrl select

data_out<= data(0)& data(7 downto 1) when "001",

data(1 downto 0)& data(7 downto 2) when "010",

data(2 downto 0)& data(7 downto 3) when "011",

data(3 downto 0)& data(7 downto 4) when "100",

data(4 downto 0)& data(7 downto 5) when "101",

data(5 downto 0)& data(7 downto 6) when "110",

data(6 downto 0)& data(7) when "111",

data when others;

end architecture Behavioral;

---- what it looks like now working on port mapping the three columns of barrel shifters. The last part is from some help I got earlier for the first column dont know how to use it yet.
