All code not being run every time

I have a verilog module designed to process an encoder signal, I have been having problems so have cut it down to a minimum that demonstrates the kind of problem. File is attached (and cited below).

The code receives a clk signal (25MHz output of a PLL), and a time (now, count of a 1MHz clock). enc is an input from an encoder on a motor (provides pulses approximately 20kHz).

The if block is activated on a negative edge of the encoder. For the majority of pulses the code behaves correctly and all code in the block is executed. Occasionally, some or none of the code is executed. I do not understand how this can be the case.

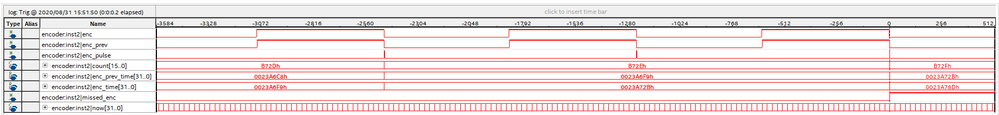

This image shows a signal tap of most of the block's signals. At just after t=-1280, there is a negative edge, the enc_pulse is taken high, but the count is not incremented, the enc_prev_time and enc_time are not updated.

The image also shows a 'well-behaving' edge just after t=-2560.

Could someone explain how this can be?



module encoder (
	input clk,
	input enc,
	input [31:0] now,
	output reg [15:0]	count,
	output reg enc_pulse,
	output missed_enc
	);

reg enc_prev;
reg marker_prev;
reg new_marker;

reg [31:0] enc_time;
reg [31:0] enc_prev_time;

initial begin
	count <= 16'd512;	// Start count mid rev.  First rev will be invalid.
	enc_pulse <= 0;
end

assign missed_enc = (enc_time - enc_prev_time) > 64;

always @ (posedge clk) begin

	if (enc == 0 && enc_prev == 1) begin	// trigger on encoder falling edge
		enc_pulse = 1;
		count = count + 16'd1;
		enc_prev_time = enc_time;
		enc_time = now;
	end
	else begin
		enc_pulse = 0;
	end
	enc_prev = enc;
end
endmodule
  • sstrell's avatar
    sstrell
    5 years ago

    It's hard to tell without zooming in, but it looks like enc and enc_prev are going low simultaneously, so they wouldn't trigger the if statement at all. You might be seeing glitches because enc is not registered. It looks like a truly asynchronous input, so there's no guarantees with that if statement. I'd register enc and then do the if check.

    If you do, you might also think about doing negedge enc in the sensitivity list.

    #iwork4intel

4 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    5 years ago

    It's hard to tell without zooming in, but it looks like enc and enc_prev are going low simultaneously, so they wouldn't trigger the if statement at all. You might be seeing glitches because enc is not registered. It looks like a truly asynchronous input, so there's no guarantees with that if statement. I'd register enc and then do the if check.

    If you do, you might also think about doing negedge enc in the sensitivity list.

    #iwork4intel

    • DBarn22's avatar
      DBarn22
      Icon for New Contributor rankNew Contributor
      5 years ago

      Thanks for the reply.

      The enc and enc_prev are not quite simultaneous, since enc_prev is enc clocked at the next clock edge.

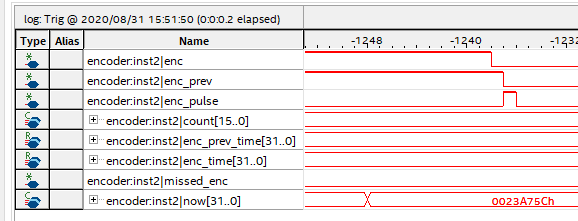

      I have zoomed in to show it more clearly.
