Using NiosV to do Uart coomunication on the DE1 Nano SOC

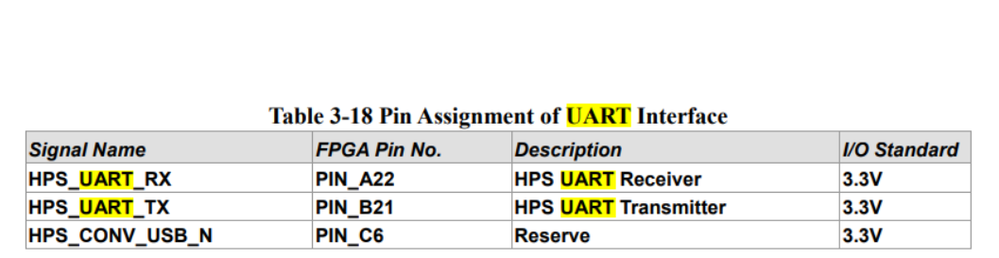

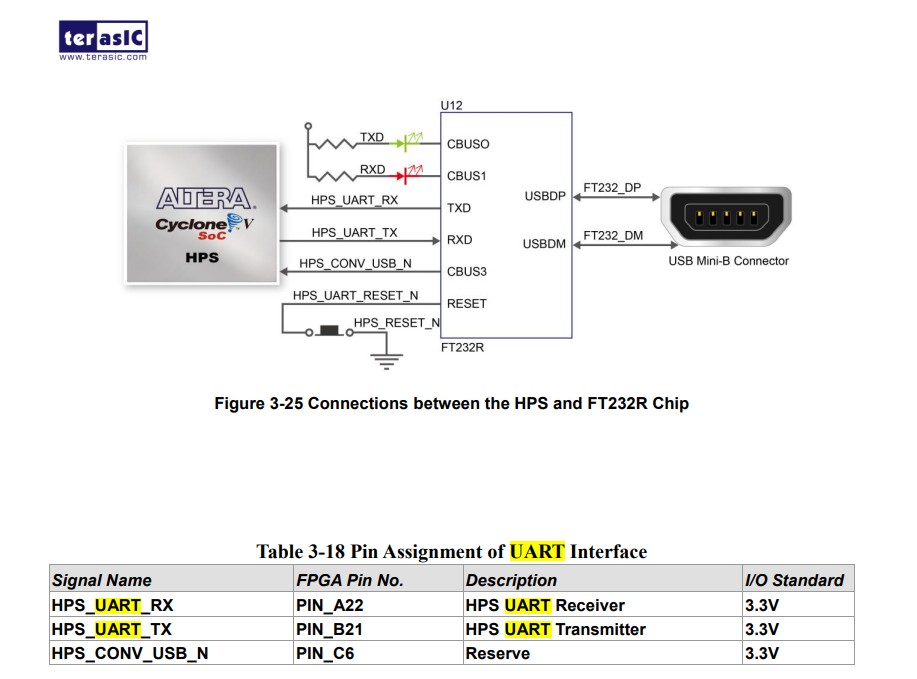

Hello, I am trying to do Uart Communication on the DE1 nanosoc board, but the pins to assign the Uart say unassignable on Quartus according to the instruction manual:

Cyclone® V SE 5CSEMA4U23C6N device

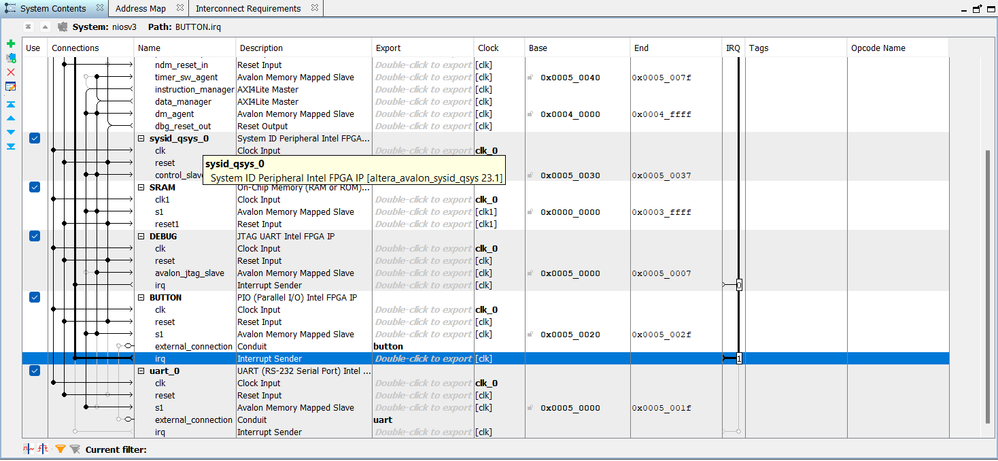

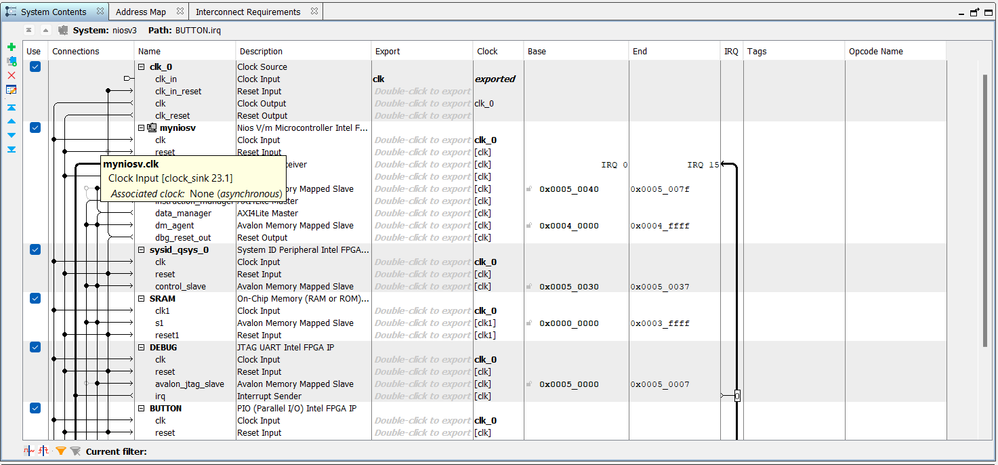

I am wondering if there is a way to assign these pins to the Quartus pin planner, as I am lost on how to do it. I will include my project details here.

I already tried including both the HPS and the NIOS V, but it didn't work. I just want to know if it is possible or not. Thank you

Nios Cpu

5 Replies

  • KianHinT_altera's avatar
    KianHinT_altera
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi David,

    I will look into the case and will feedback to you later.

    Thanks

    Regards

    Kian

  • KianHinT_altera's avatar
    KianHinT_altera
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi David,

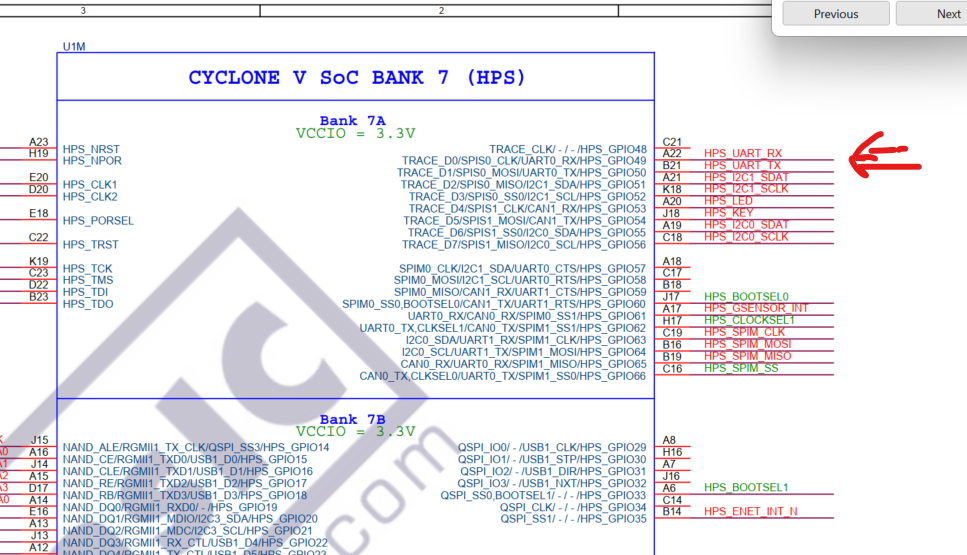

    Sorry for the delay, I checked the schematic and saw that the pins are already connected , don't think you can modify it

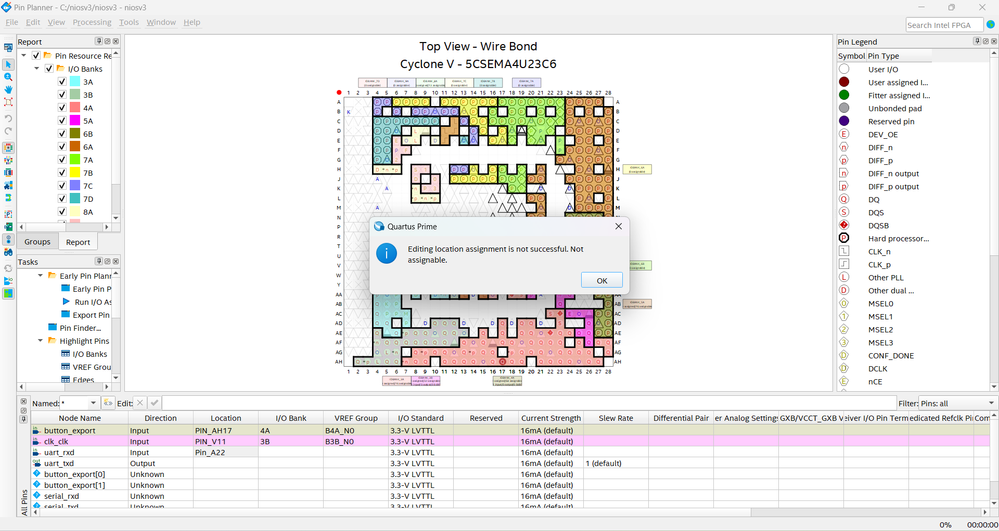

    You got the error when you try to edit/enter the location Pin_A22 right?

    Thanks

    Regards

    Kian

  • KianHinT_altera's avatar
    KianHinT_altera
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi David,

    Is there any update on this case whether the issue been resolved?

    Just to add on , though you cant edit the HPS_UART_<TX/RX> since it is already fixed to pin A22,21 (same as the rest of the UART) , you will still need to configure the pin functionality A22,B21 to use as UART0_RX/TX

    Thanks

    Regards

    Kian

  • KianHinT_altera's avatar
    KianHinT_altera
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi

    As I did not hear any reply back , I will set the case to close-pending and transition it to community support.

    If there is further issues, please do raise another thread and we will respond back to you .

    Thanks

    Regards

    Kian
