I want to design bcd to decimal decoder using structural style. I did it successfully but the problem when I simulate it in Modelsim it does not meet with the truth table.

The truth table:

Input (ABCD) Output

0000 =>0111111111

0001 => 1011111111

0010 => 1101111111

0011 => 1110111111

......

......

library ieee;

use ieee.std_logic_1164.all;

entity nandg1 is

port(A,B,C,D: in std_logic;

y: out std_logic);

end nandg1;

architecture df of nandg1 is

begin

y<= (a nand b) nand (c nand d);

end df;

library ieee;

use ieee.std_logic_1164.all;

entity notg is

port(x: in std_logic;

xbar: out std_logic);

end notg;

architecture df of notg is

begin

xbar<= not(x);

end df;

library ieee;

use ieee.std_logic_1164.all;

entity nandg is

port(A,B,C,D: in std_logic;

Y0,y1,y2,y3,y4,y5,y6,y7,y8,y9: out std_logic);

end nandg;

Architecture df of nandg is

component notg

port (x : in std_logic; xbar : out std_logic);

end component;

component nandg1

port (a,b,c,d : in std_logic ; y : out std_logic);

end component;

signal abar,ain,bbar,bin,cbar,cin,dbar,din: std_logic;

begin

A1: NOTG port map (A,Abar);

A2: NOTG port map (Abar,Ain);

B1: NOTG port map (B,Bbar);

B2: NOTG port map (Bbar,Bin);

C1: NOTG port map (C,Cbar);

C2: NOTG port map (Cbar,Cin);

D1: NOTG port map (D,Dbar);

D2: NOTG port map (Dbar,Din);

L0: NANDG1 port map (Abar,bbar,cbar,dbar,y0);

L1: NANDG1 port map (Ain,bbar,cbar,dbar,y1);

L2: NANDG1 port map (Ain,bin,cbar,dbar,y2);

L3: NANDG1 port map (Ain,bin,cbar,dbar,y3);

L4: NANDG1 port map (Abar,bbar,cin,dbar,y4);

L5: NANDG1 port map (Ain,bbar,cin,dbar,y5);

L6: NANDG1 port map (Abar,bin,cin,dbar,y6);

L7: NANDG1 port map (Ain,bin,cin,dbar,y7);

L8: NANDG1 port map (Abar,bbar,cbar,din,y8);

L9: NANDG1 port map (Ain,bbar,cbar,din,y9);

end df;

5 Replies

  • Abe's avatar
    Abe
    Icon for Frequent Contributor rankFrequent Contributor

    Change the 4-input NAND implementation as it is incorrect. Use the following and then check your BCD to Decimal ckt.

    library ieee;
    use ieee.std_logic_1164.all;

    entity nandg1 is
    port(A,B,C,D: in std_logic;
            y: out std_logic);
    end nandg1;

    architecture df of nandg1 is
    begin
     --y<= (a nand b) nand (c nand d);
        y <= not (a and b and c and d);
    end df;
  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi ab4,

    The changes proposed in my previous post should work. Which also communicated in private forum message.

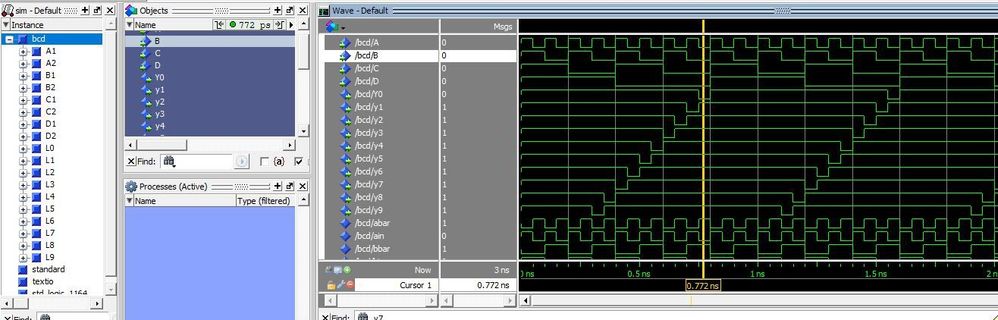

    Attaching the simulation output for forum ​users.

    you can copy past the code from my post or from Abe post and try.

    Regards

    Anand

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi,

    Have you implemented 4input NAND gate in entity nandg1?

    y<= (a nand b) nand (c nand d);

    should be like y<= (a nand b) or (c nand d);

    Also check portmap L2.

  • ab4's avatar
    ab4
    Icon for New Contributor rankNew Contributor

    Mr. Raj I did the amendment but the outputs still dose not meet the truth table.

  • Pvand1's avatar
    Pvand1
    Icon for Occasional Contributor rankOccasional Contributor

    Does the gate do what you expect when simulating? What is your expectation of the output and where do you think the simulation of one gate is wrong?
