Auto Negotiation FAILED : Nios II Simple Socket server

I have been trying to implement NIOS II simple socket server for Cyclone V GT from the reference design from the link: https://fpgacloud.intel.com/devstore/platform/16.0.0/Standard/nios-ii-simple-socket-server-ethernet-example-for-cvgt/

We are trying to use static IP instead of DHCP client where the ethernet port of FPGA is connected to the CPU port along with the JTAG. We are getting the following display on the NIOS console:

*****************************************************************************

InterNiche Portable TCP/IP, v3.1

Copyright 1996-2008 by InterNiche Technologies. All rights reserved.

altera_eth_tse_init 0

prep_tse_mac 0

Your Ethernet MAC address is 00:07:ed:ff:e2:d0

Static IP Address is 192.168.1.234

prepped 1 interface, initializing...

tse_mac_init 0

speed : 1

duplex : 1

result : 5

ALT_TSE_E_INVALID_SPEED by LG : 65536

List of PHY profiles supported (Total profiles = 5)...

Profile No. 0 :

PHY Name : Marvell 88E1111

PHY OUI : 0x005043

PHY Model Num. : 0x0c

PHY Rev. Num. : 0x02

Status Register : 0x11

Speed Bit : 14

Duplex Bit : 13

Link Bit : 10

Profile No. 1 :

PHY Name : Marvell Quad PHY 88E1145

PHY OUI : 0x005043

PHY Model Num. : 0x0d

PHY Rev. Num. : 0x02

Status Register : 0x11

Speed Bit : 14

Duplex Bit : 13

Link Bit : 10

Profile No. 2 :

PHY Name : National DP83865

PHY OUI : 0x080017

PHY Model Num. : 0x07

PHY Rev. Num. : 0x0a

Status Register : 0x11

Speed Bit : 3

Duplex Bit : 1

Link Bit : 2

Profile No. 3 :

PHY Name : National DP83848C

PHY OUI : 0x080017

PHY Model Num. : 0x09

PHY Rev. Num. : 0x00

Status Register : 0x00

Speed Bit : 0

Duplex Bit : 0

Link Bit : 0

Profile No. 4 :

PHY Name : Intel PEF7071

PHY OUI : 0x355969

PHY Model Num. : 0x00

PHY Rev. Num. : 0x01

Status Register : 0x00

Speed Bit : 0

Duplex Bit : 0

Link Bit : 0

INFO : TSE MAC 0 found at address 0x08000800

INFO : Multi Channel = No

INFO : MDIO Shared = No

INFO : MAC Type = 10/100/1000 Ethernet MAC

INFO : MAC Address = 0x08000800

INFO : MAC Device = tse_mac_device[0]

INFO : I am here

mac_group_count : 1

INFO : PHY Marvell 88E1111 found at PHY address 0x00 of MAC Group[0]

INFO : PHY OUI = 0x005043

INFO : PHY Model Number = 0x0c

INFO : PHY Revision Number = 0x2

INFO : PHY[0.0] - Automatically mapped to tse_mac_device[0]

INFO : PHY[0.0] - Advertisement of 1000 Base-T Full Duplex set to 1

Created "Inet main" task (Prio: 2)

INFO : PHY[0.0] - Advertisement of 1000 Base-T Half Duplex set to 1

INFO : PHY[0.0] - Advertisement of 100 Base-T4 set to 0

INFO : PHY[0.0] - Advertisement of 100 Base-TX Full Duplex set to 0

INFO : PHY[0.0] - Advertisement of 100 Base-TX Half Duplex set to 0

INFO : PHY[0.0] - Advertisement of 10 Base-TX Full Duplex set to 0

INFO : PHY[0.0] - Advertisement of 10 Base-TX Half Duplex set to 0

INFO : PHY[0.0] - Restart Auto-Negotiation, checking PHY link...

INFO : PHY[0.0] - Auto-Negotiation PASSED

INFO : Applying additional PHY configuration of Marvell 88E1111

INFO : Applying additional user PHY configuration

MARVELL : Mode changed to RGMII/Modified MII to Copper mode

MARVELL : Enable RGMII Timing Control

MARVELL : PHY reset

INFO : PHY[0.0] - Restart Auto-Negotiation, checking PHY link...

WARNING : PHY[0.0] - Auto-Negotiation FAILED

INFO : PHY[0.0] - Capability of PHY :

INFO : 1000 Base-X Full Duplex = 0

INFO : 1000 Base-X Half Duplex = 0

INFO : 1000 Base-T Full Duplex = 1

INFO : 1000 Base-T Half Duplex = 1

INFO : 100 Base-T4 = 0

INFO : 100 Base-X Full Duplex = 1

INFO : 100 Base-X Half Duplex = 1

INFO : 100 Base-T2 Full Duplex = 0

INFO : 100 Base-T2 Half Duplex = 0

INFO : 10 Base-T Full Duplex = 1

INFO : 10 Base-T Half Duplex = 1

INFO : PHY[0.0] - Link Partner Capability :

INFO : 1000 Base-T Full Duplex = 0

INFO : 1000 Base-T Half Duplex = 0

INFO : 100 Base-T4 = 0

INFO : 100 Base-TX Full Duplex = 1

INFO : 100 Base-TX Half Duplex = 1

INFO : 10 Base-TX Full Duplex = 1

INFO : 10 Base-TX Half Duplex = 1

INFO : PHY[0.0] - Checking link...

INFO : PHY[0.0] - Link established

*******************************************************************************

The second Auto Negotiation is failing. We have tried to vary the speeds and do all sorts of experiments but in vain. Kindly Help!!

8 Replies

  • Eliath_G_Intel's avatar
    Eliath_G_Intel
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Hi Avinash,

    Thank you for reaching us to help you with this issue.

    I'm Eliath Guzman and I'm going to help you with it.

    I can see in the link of the reference design you are working with, use Quartus version 16.0.0 standard, is the one you're using, the same version or it is a newer version?

    Regards,

    -Eliath Guzman

    • APaga1's avatar
      APaga1
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hello Eliath,

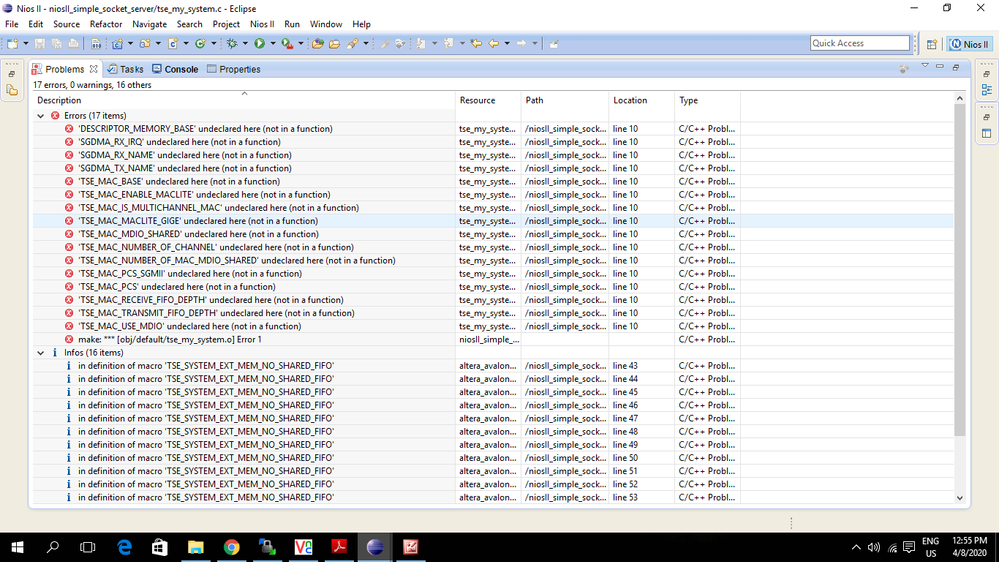

      So, Initially, we tried using the reference design for 16.0 in Quartus 16.0. We got many errors as shown in the screenshot.

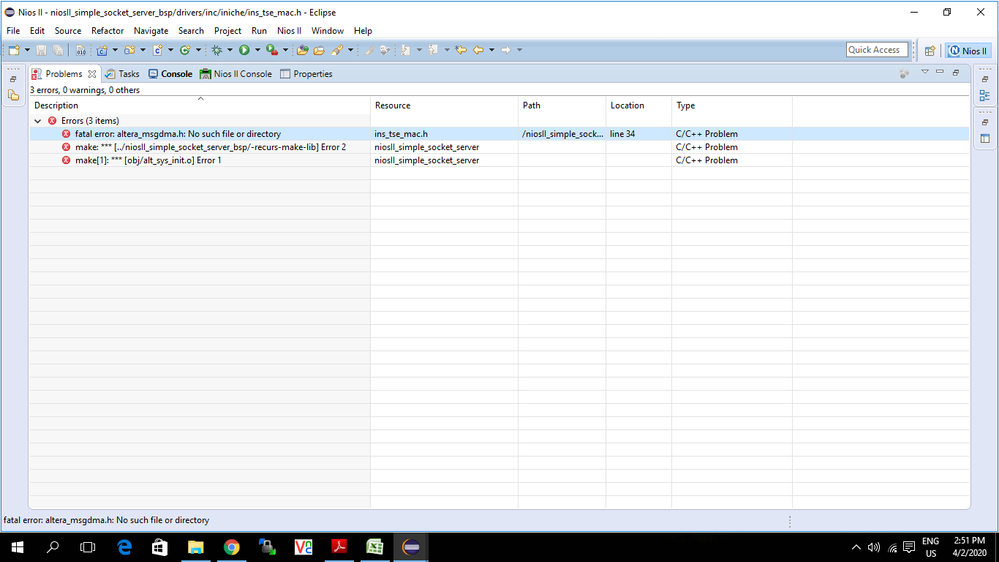

      When we tried the same reference design in later versions of Quartus i.e. 17.1 and 18.1, some of the errors have been reduced and other errors have appeared related to SGDMA IP used in the ethernet system qsys. The ELF file was not generated. I am attaching the screenshot.

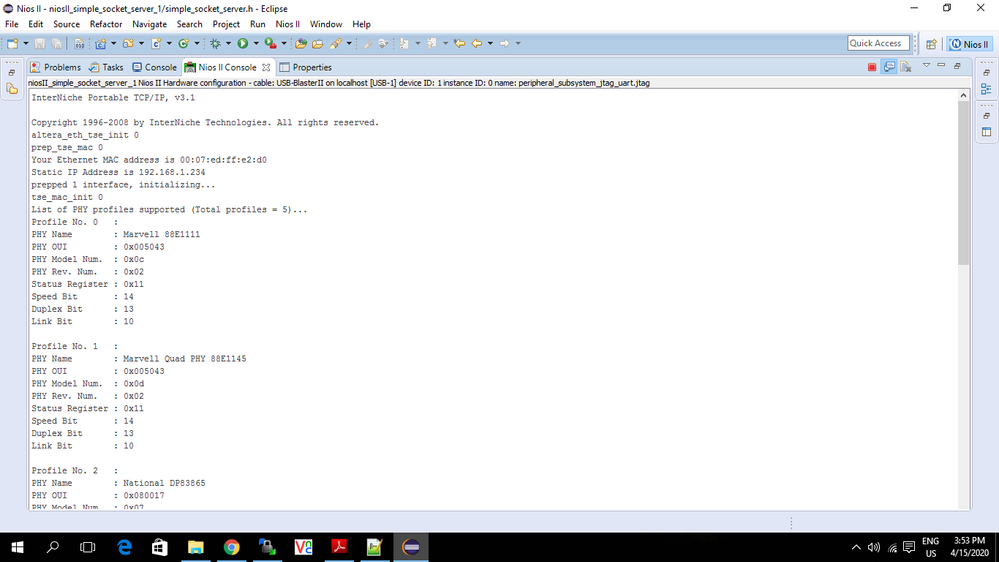

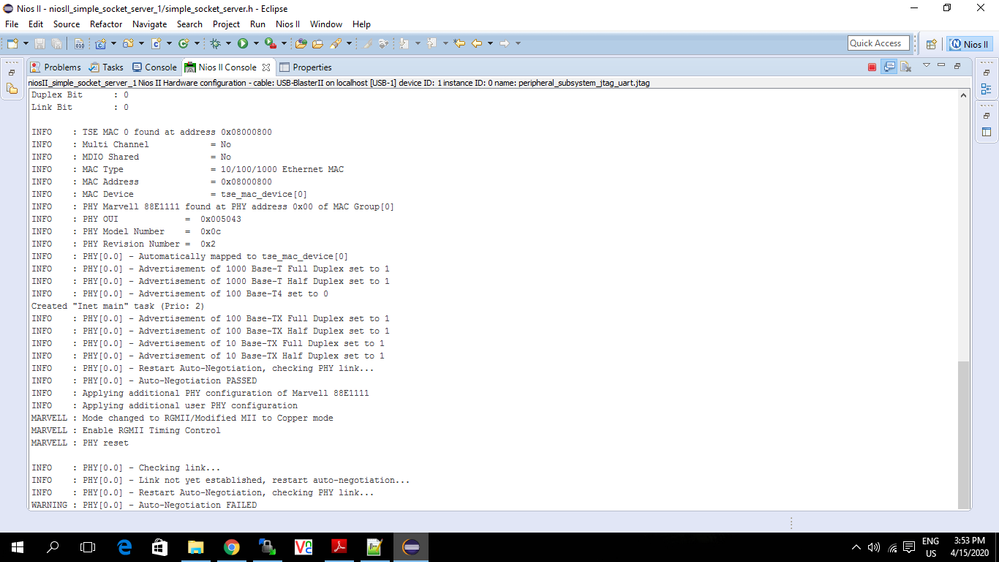

      So, we got an assistance from a Field Applications Engineer from Intel, where he gave us a new project in which the SGDMA was removed and replaced by MSGDMA. By this, the ELF file was generated. But when we are trying to establish the communication, AUTO NEGOTIATION FAILED error is popping up. I am attaching a screenshot for this.

      Even the reference design does not contain the required main sdc file i.e niosii_ethernet_standard_5CGTFD9E.sdc file to do the timing analysis. I feel that the design present in the website needs a major overhaul to make it working. Kindly help us. We are stuck with this issue for the past 2 months.

      Regards,

      Avinash

  • Eliath_G_Intel's avatar
    Eliath_G_Intel
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Hi Avinash!

    I have made an internal consult with my team and they told me that almost all of the errors your design is having are known as typical of the reference design you're using to work. Just as a comment, we asked the corresponding area to remove this design...

    We do not have an example design for Cyclon V GT, but we have worked on one for Cyclone V E which I consider you could use as a base to build a project that matches your needs. Considering what you have mentioned before, this could be a faster solution.

    I'm attaching the project, please take a look at it and do not hesitate to let me know any queries you may have.

    Thanks,

    -Eliath Guzman

  • Eliath_G_Intel's avatar
    Eliath_G_Intel
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Hi Avinash!

    Hoping you're doing well, I was wondering if the information and project I shared with you were useful to solve the issue.

    Please let me know if you have any concerns that I can help you with or if I can push the case to close pending, after do this you'd have a period of 15 days to comment something and it will be automatically opened again.

    Thanks,

    -Eliath Guzman

    • APaga1's avatar
      APaga1
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hello Eliath,

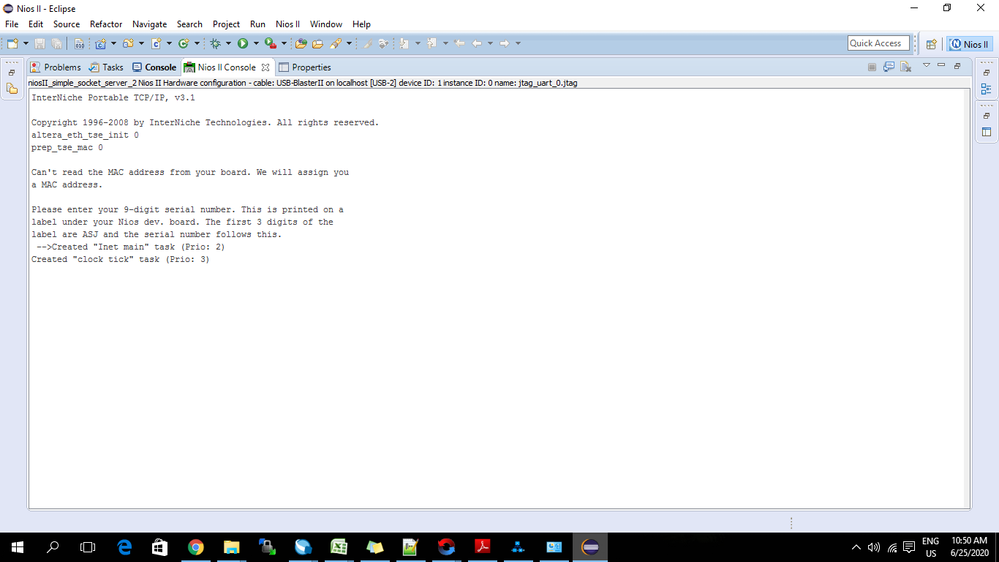

      Thank you for the fix that you have suggested regarding the name mismatch in the TSE_0. It worked. In the NIOS console, I was being asked to provide the 9 digit serial number present at the back of my board (refer to the screenshot). Is this normal? Because I did not come across this pop up when I was working with the reference design present in the website. Kindly guide us. @Eliath_G_Intel

      • APaga1's avatar
        APaga1
        Icon for New Contributor rankNew Contributor
        5 years ago

        Hello Eliath,

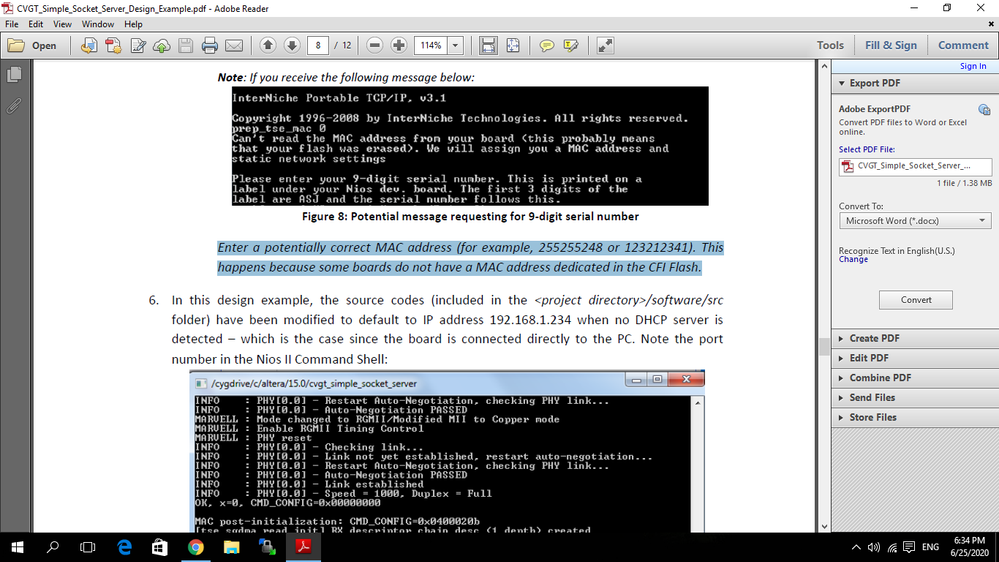

        In one of the documents present in the website for NIOS II Simple socket server, it was mentioned that in case of issues related to MAC address, we can try typing "255255248".

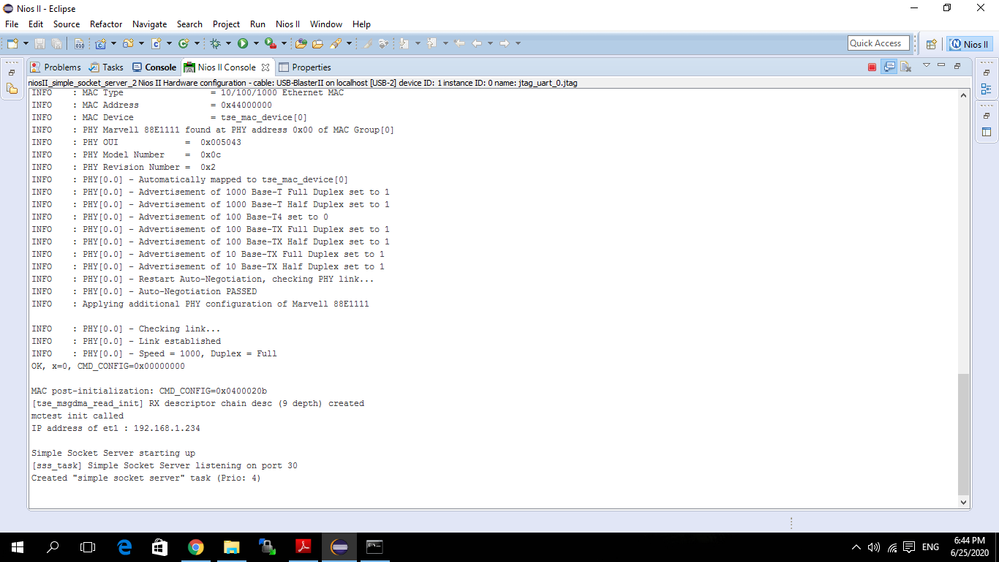

        I have typed that address and it seemed to be working. In fact, any non zero 9-digit address seems to be working. So It shows that the Simple socket server is listening in port no.30 as shown in the screenshot.

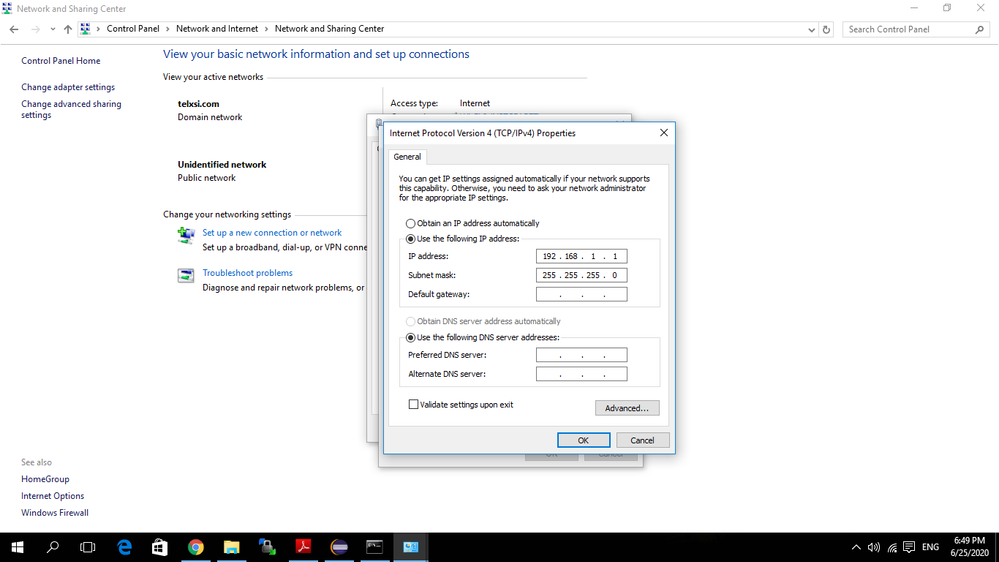

        But now, when I am trying to open a Telnet server with the IP address 192.168.1.234 and port 30, the connection is not established. I've even tried with 192.168.1.1 but no success.

        Kindly help.

        Regards,

        Avinash Paga
