adc alt_sys_init.c build error

Quartus 21.1

MAX 10 10M08

Created an NIOS II with ADC, PLL, JTAG UART, TIMER. design builds fine in Quartus.

Creating an application in Eclipse with the hello_world_small template. Build the project and I am getting errors in alt_sys_inti.c that I cannot figure out how to fix:

-----------------------------------------------------------------------------------------------------

in file included from alt_sys_init.c:65:
alt_sys_init.c:75:31: error: 'MODULAR_ADC0_NAME' undeclared here (not in a function)
75 | ALTERA_MODULAR_ADC_INSTANCE ( MODULAR_ADC0, modular_adc0);
| ^~~~~~~~~~~~
./drivers/inc/altera_modular_adc.h:97:5: note: in definition of macro 'ALTERA_MODULAR_ADC_INSTANCE'
97 | name##_NAME, \
| ^~~~
alt_sys_init.c:75:31: error: 'MODULAR_ADC0_DUAL_ADC_MODE' undeclared here (not in a function); did you mean 'MODULAR_ADC0_SEQUENCER_CSR_DUAL_ADC_MODE'?
75 | ALTERA_MODULAR_ADC_INSTANCE ( MODULAR_ADC0, modular_adc0);
| ^~~~~~~~~~~~
./drivers/inc/altera_modular_adc.h:110:4: note: in definition of macro 'ALTERA_MODULAR_ADC_INSTANCE'
110 | name##_DUAL_ADC_MODE \
| ^~~~
alt_sys_init.c: In function 'alt_sys_init':
alt_sys_init.c:101:31: error: 'MODULAR_ADC0_IRQ_INTERRUPT_CONTROLLER_ID' undeclared (first use in this function); did you mean 'PLLFORADC0_IRQ_INTERRUPT_CONTROLLER_ID'?
101 | ALTERA_MODULAR_ADC_INIT ( MODULAR_ADC0, modular_adc0);
| ^~~~~~~~~~~~
./drivers/inc/altera_modular_adc.h:119:32: note: in definition of macro 'ALTERA_MODULAR_ADC_INIT'
119 | altera_modular_adc_init(&dev, name##_IRQ_INTERRUPT_CONTROLLER_ID, name##_IRQ);
| ^~~~
alt_sys_init.c:101:31: note: each undeclared identifier is reported only once for each function it appears in
101 | ALTERA_MODULAR_ADC_INIT ( MODULAR_ADC0, modular_adc0);
| ^~~~~~~~~~~~
./drivers/inc/altera_modular_adc.h:119:32: note: in definition of macro 'ALTERA_MODULAR_ADC_INIT'
119 | altera_modular_adc_init(&dev, name##_IRQ_INTERRUPT_CONTROLLER_ID, name##_IRQ);
| ^~~~
alt_sys_init.c:101:31: error: 'MODULAR_ADC0_IRQ' undeclared (first use in this function)
101 | ALTERA_MODULAR_ADC_INIT ( MODULAR_ADC0, modular_adc0);
| ^~~~~~~~~~~~
./drivers/inc/altera_modular_adc.h:119:68: note: in definition of macro 'ALTERA_MODULAR_ADC_INIT'
119 | altera_modular_adc_init(&dev, name##_IRQ_INTERRUPT_CONTROLLER_ID, name##_IRQ);
| ^~~~
Makefile:583: recipe for target 'obj/alt_sys_init.o' failed
make: *** [obj/alt_sys_init.o] Error 1

------------------------------------------------------------------------------------------------------

Was there a step I could have missed Platform Builder?

  • hareesh's avatar
    hareesh
    3 years ago

    Hi @SeanAB ,

    it's a software bug, I will raise ticket about this issue. if i get any alternate solution i will forward to you.

    if you don't have any quires I'll close the case. please confirm

    If any answer from the community or Intel Support are helpful, please feel free to give best answer or rate 9/10 survey.

    Thanks,

7 Replies

  • hareesh's avatar
    hareesh
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi SeanAB,

    I tried duplicating the issue but its not reproducible in our system. What is the Quartus edition you are using. Also Can you please share platform design and SOPC information file.


    Kind regards,



  • SeanAB's avatar
    SeanAB
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    Quartus Prime Lite Ver 21.1.0 Build 842 10/21/21 - Windows 10 Host system

    Eclipse Mars.2 rel 4.5.2

    After spending a few more hours digging into the code, it appears the project wizard doesn't set up everything correctly. Two corrections need to be made to get the application to build.

    1. altera_modular_adc.h contains the following, form lines 92 to lines 120:

    #define ALTERA_MODULAR_ADC_INSTANCE(name, dev) \
    static alt_modular_adc_dev dev = \
    { \
    { \
    ALT_LLIST_ENTRY, \
    name##_NAME, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    }, \
    NULL, \
    NULL, \
    0, \
    0, \
    name##_DUAL_ADC_MODE \
    }


    /*
    * The macro ALTERA_MODULAR_ADC_INIT is called by the auto-generated function
    * alt_sys_init() to initialize a given device instance.
    */
    #define ALTERA_MODULAR_ADC_INIT(name, dev) \
    altera_modular_adc_init(&dev, name##_IRQ_INTERRUPT_CONTROLLER_ID, name##_IRQ);

    After going through system.h, I modified this file to add the correct constant names.

    #define ALTERA_MODULAR_ADC_INSTANCE(name, dev) \
    static alt_modular_adc_dev dev = \
    { \
    { \
    ALT_LLIST_ENTRY, \
    name##_SEQUENCER_CSR_NAME, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    NULL, \
    }, \
    NULL, \
    NULL, \
    0, \
    0, \
    name##_SEQUENCER_CSR_DUAL_ADC_MODE \
    }


    /*
    * The macro ALTERA_MODULAR_ADC_INIT is called by the auto-generated function
    * alt_sys_init() to initialize a given device instance.
    */
    #define ALTERA_MODULAR_ADC_INIT(name, dev) \
    altera_modular_adc_init(&dev, name##_SAMPLE_STORE_CSR_IRQ_INTERRUPT_CONTROLLER_ID, name##_SAMPLE_STORE_CSR_IRQ);

    2. The second problem is that the application doesn't resolve the paths to all the libraries in the BSP. I modified the application's makefile to include the following at line 131:

    APP_INCLUDE_DIRS += ../anotherADC_bsp/
    APP_INCLUDE_DIRS += ../anotherADC_bsp/drivers/inc/

    Once these corrections are made the application builds successfully. Attached is the SPOC information file.

    • hareesh's avatar
      hareesh
      Icon for Frequent Contributor rankFrequent Contributor
      3 years ago

      Can please share your platform design screen shot

      • SeanAB's avatar
        SeanAB
        Icon for Occasional Contributor rankOccasional Contributor
        3 years ago

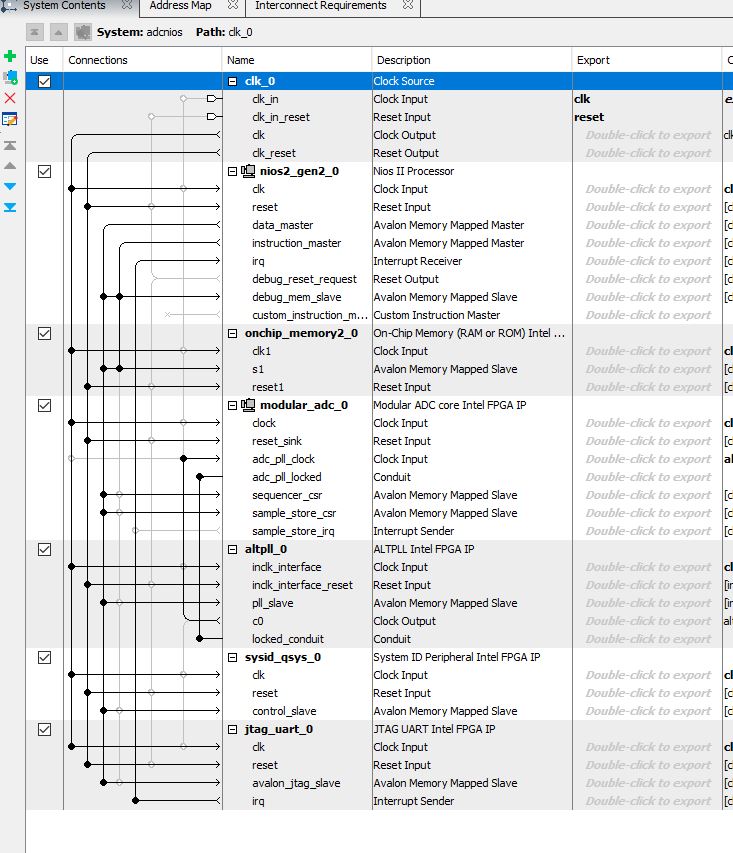

        Here is the screen shot.
