Why does the E-Tile transceiver PHY IP get zero eye height in some cases?

We have tested many devices and only a few environments where the Eye Height value is 0 for 2.5G read and the data is normally sent and received. This causes a lot of problems.

So, I would like to ask what causes this phenomenon. Is there any solution?

Transceiver

5 Replies

  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi BarryT,


    May I know that your TTK using which Quartus version?


    Best regards,

    Zi Ying


  • BarryT's avatar
    BarryT
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hi Zi Ying,

    it's Quartus Prime Version 20.1.0.

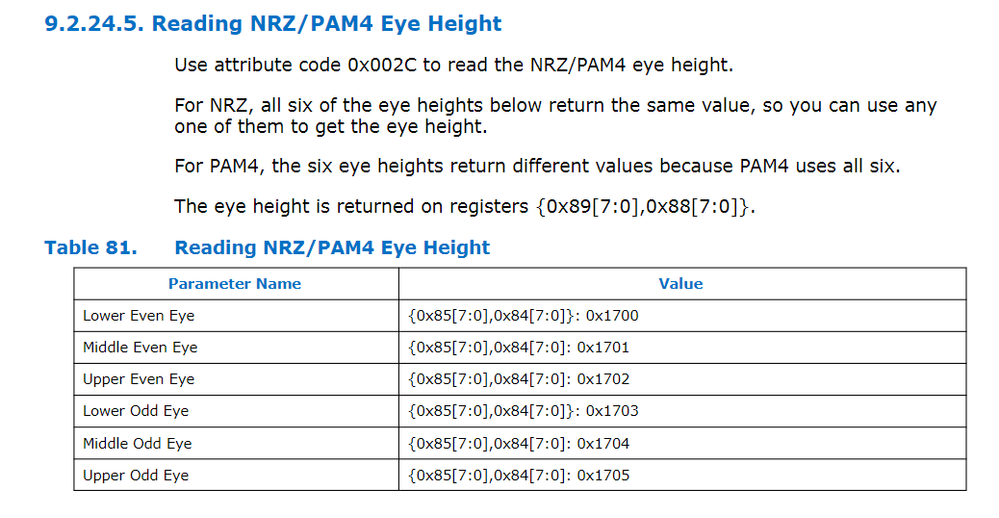

    But we don't use TTK to get the eye height, we use attribute code to get it.

    Best regards,

    BarryT

  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi BarryT,


    Can you try to use TTK to see eye viewer still got 0 height?


    Best regards,

    Zi Ying


  • ZiYing_Intel's avatar
    ZiYing_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    2 years ago

    Hi BarryT,


    Is there any update from your side?


    Best regards,

    Zi Ying


    • BarryT's avatar
      BarryT
      Icon for New Contributor rankNew Contributor
      2 years ago

      Hi Zi Ying,

      I do not have the conditions to use TTK to get eye height, maybe I need to think about other ways.

      Thanks for your help.

      Best regards,

      BarryT
