Using Altera PLL make 500Khz or below

When i Using ALTPLL, i Usually make 500khz and below xx kHz Frequency Clock. @ 50Mhz / 100Mhz Input clock.

But Cyclone 5, Different PLL IP Core.

- ALTPLL → Altera PLL, so it doesn't support for Low Frequency Clock.

does have any way to make 500kHz or 10kHz frequency Clock?

Ethernet
  • FvM's avatar
    FvM
    2 years ago

    Hi,
    just read PLL Intel FPGA IP messages thoroughly. It instructs you to enable physical output clock pararameters to configure cascaded output counters.

4 Replies

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    2 years ago
    Hi,
    all Intel FPGA starting with Cyclone III have a post-scale counter cascading feature and can generate output frequencies down to a few kHz, also Cyclone V.

    Regards,
    Frank
  • jjang's avatar
    jjang
    Icon for New Contributor rankNew Contributor
    2 years ago

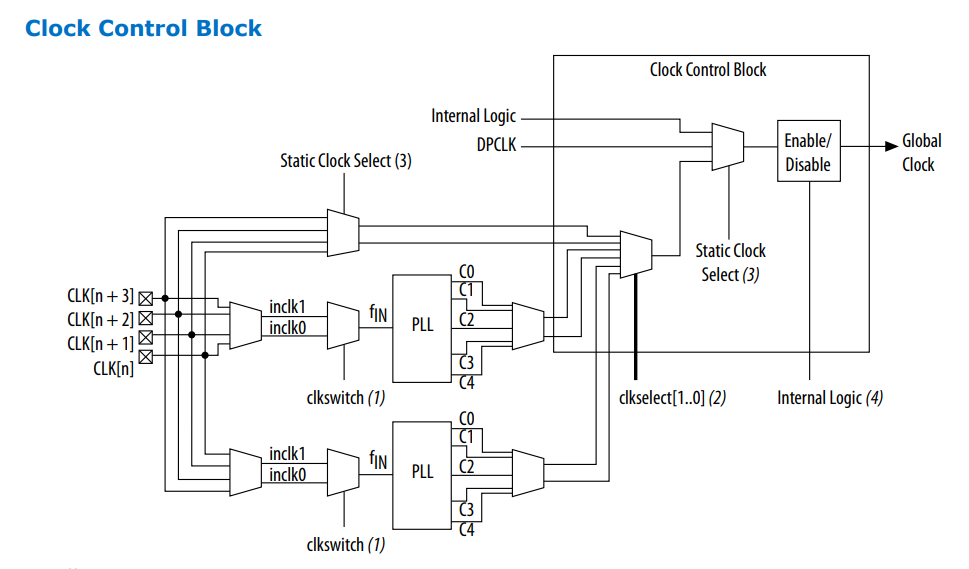

    As Clocking and PLL User Guide..

    Using PLL Clock (C1, C2. C3.C4), then that can though Global clock.

    but to make a Clock as a Logic (such as Counter).. will not connect to Global clock . .isn't it?

    • FvM's avatar
      FvM
      Icon for Super Contributor rankSuper Contributor
      2 years ago

      Hi,
      just read PLL Intel FPGA IP messages thoroughly. It instructs you to enable physical output clock pararameters to configure cascaded output counters.

  • AqidAyman_Altera's avatar
    AqidAyman_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 years ago

    Hi,


    I wish to follow up on this issue. Have you able to use the cascading feature to generate the low frequencies output clock?


    Regards,

    Aqid
