JTAG to Avalon MM Bridge

Figure 1

Hi Syafieq,

So here are another 3 links that applied the same JTAG to Avalon M Bridge. Basically it is the same with the JTAG to Avalon MM Bridge.pdf (attached in question post). And I am having the same problems at the same steps.

In the pdf tutorial, as in Figure 1, when I tried to run the command, it shows

"java.lang.Exception: master_read_32: This transaction did not complete in 60 seconds. System Console is giving up."

And in link (3),under Exercise the On Chip RAM, when I tried wrote

"master_read_32 $c_path $ocram 1" same error show up.

(1) https://www.intel.com/content/www/us/en/develop/articles/intel-cyclone-10-lp-fpga-board-how-to-program-your-first-fpga.html

(2) https://www.i1ntel.com/content/www/us/en/develop/articles/build-a-custom-hardware-system.html

(3) https://software.intel.com/content/www/us/en/develop/articles/debug-intel-fpga-hardware-with-system-console.html

I think it came from the part where I cannot create the header file in (2), because I run below code

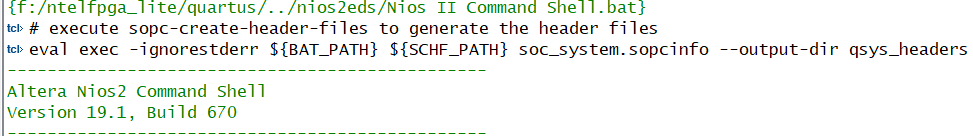

"# execute sopc-create-header-files to generate the header files

eval exec -ignorestderr ${BAT_PATH} ${SCHF_PATH} soc_system.sopcinfo --output-dir qsys_headers"

The only things came out is

In link (2), it said using the tcl console in the Quartus, under Generate the Header Files section , I need to create the header file but when I tried to run code in line 21, it shows errors about "invoke while executing"

p/s Hope my reply can make you clear of what I am facing now.

Hi @SyafieqS_Intel​ , I'm using jtag-mm-bridge in my project now, would you please send me a copy file of " tutorial related to write and read avalon mm using jtg to avalon master bridge ..."

Thanks in Advance

Thanks Syafieq, I will have a look.

Regards

Hello @SyafieqS_Intel​ ,

I see that this thread is a couple of years old. However, could you send me these zip with the tutorials? It would be really useful for me.

Thanks in advance and regards,

Enrico

Hello there,

So I am following this tutorial

https://www.intel.com/content/www/us/en/develop/articles/intel-cyclone-10-lp-fpga-kit-build-a-custom-hardware-system.html

Everything can easily followed but up until "Generate header file", I started getting error when I tried to enter this command line

BAT_PATH {}

tcl> if {$tcl_platform(platform) == "windows"} {

> set BAT_PATH [glob -join $quartus(quartus_rootpath) .. nios2eds {Nios II Command Shell.bat}]

> }

Alternatively it worked when I generate it using NIOS II shell but the problem is for the next line where there is need for global join

# execute sopc-create-header-files to generate the header files

tcl> eval exec -ignorestderr ${BAT_PATH} ${SCHF_PATH} soc_system.sopcinfo --output-dir qsys_headers

# read the header file for master_0 into a TCL variable

tcl> set master_0_header [read [open [glob -join qsys_headers master_0.h] r]]

I cannot find any suggestion on the web so I proceed with the next tutorial in this link

https://www.intel.com/content/www/us/en/develop/articles/intel-cyclone-10-lp-fpga-kit-debug-hardware-with-system-console.html

When I tried to insert master read and write command, the error said

"Jun 01, 2020 8:04:30 PM com.altera.debug.coreWARNING: This transaction has not completed in 10 seconds. System Console will keep trying for 50 more seconds.

----after 50 seconds----

java.lang.Exception: master_read_32: This transaction did not complete in 60 seconds. System Console is giving up.

Someone told me that it is because of the IP (JTAG to Avalon) is not responding and the clock is missing.

Can you advice me on this? Here I attached the Platform Designer .qsys that I worked on based on the links above. Thanks

Regards

Sayed
