How to generate ALLPLL in S10 ?

Question

Hi,

I am tried to converter old pll in quartus 13.1 to quartus pro 21.x

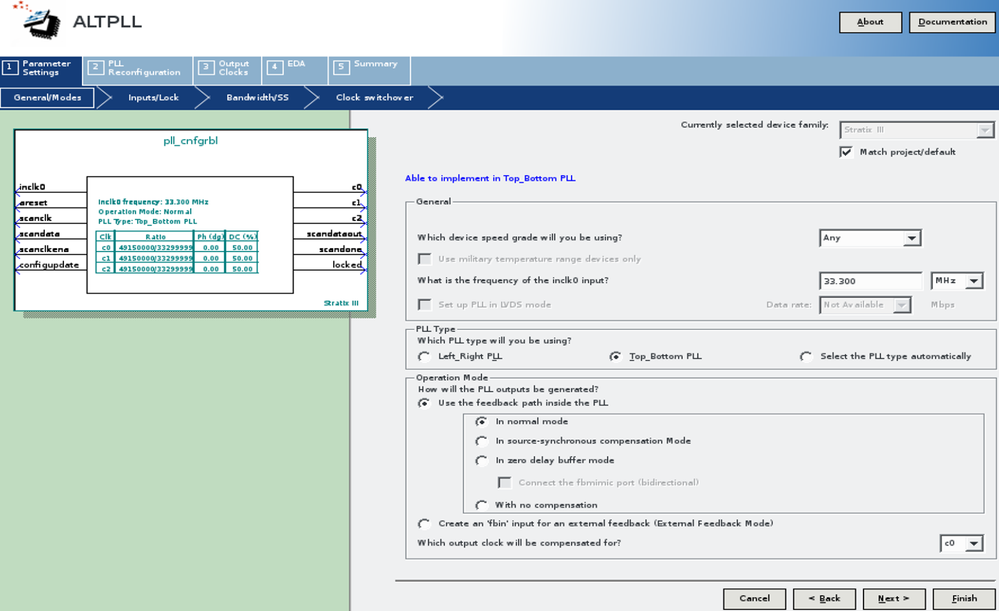

OLD ALLPLT has scanclk/scandataout port from tool .

// synopsys translate_off`timescale 1 ps / 1 ps// synopsys translate_onmodule pll_cnfgrbl (areset,configupdate,inclk0,scanclk,scanclkena,scandata,c0,c1,c2,locked,scandataout,scandone);
input arese

how to generate same PLL for s10 ?
I can't see scanclk/scankena/scnadata pin option in quartus pro 21.x

sstrell · Answer

That IP is not compatible with S10.  You have to create a new Intel PLL IP for it and copy over the settings.  The options you mention may not be available for the newer PLL.

minjoolee · Answer

I know that I have to generate,

but how to do  for ALLPLL.

in IOLL itel FPGA IP from quatur pro,

doesn't have

scanclk,scanclkena,scandata,

these pins.
That is why I don't re-generation.

ash_r_intel · Answer

In ALTPLL the scanclk, scandata etc are used for Dynamic Reconfiguration. In S10, PLL is different and the reconfiguration functionality can be achieved using IOPLL Reconfig Intel® FPGA IP Core: https://www.intel.com/content/www/us/en/docs/programmable/683195/20-3/core-references-14991.html

Also, the Dynamic phase shift ports are different: https://www.intel.com/content/www/us/en/docs/programmable/683195/20-3/dynamic-phase-shift-ports-in-the-ip-core.html

Regards
