How to disable watchdog timer on MAX10 Dual Configuration IP?

I am using Dual Boot feature of MAX10, where CFM0 contains factory image (failsafe) and CFM1 contains operational image. I have enabled reconfiguration watchdog timer in Quartus 19., but when I set relevant bit in the control register of the Dual Configuration IP to reset the watchdog, MAX10 re-configures to the previous image. How to stop the watchdog timer with Dual Configuration IP?

3 Replies

  • ShafiqY_Intel's avatar
    ShafiqY_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    5 years ago

    Hi PStep10,

    There is no option/setting in Dual configuration IP to disable the watchdog timer.

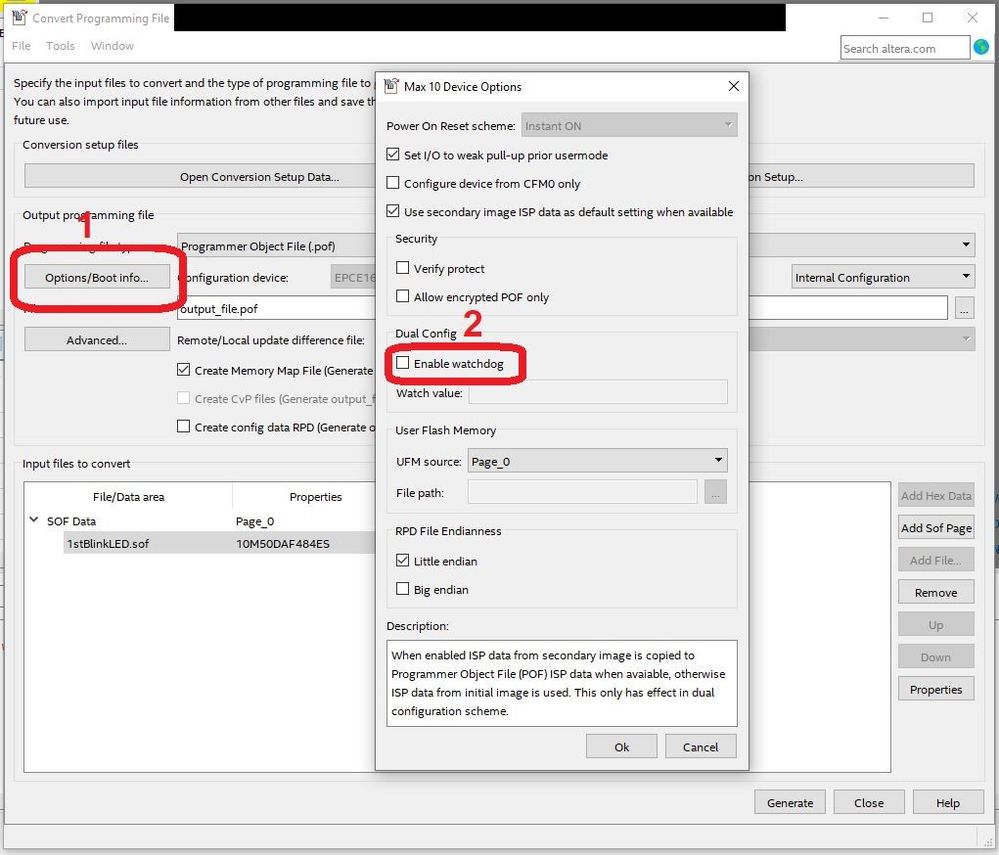

    There only way to disable it through Convert Programming File setting (in Quartus): 

     

    Regards,

    Matt

    • PStep10's avatar
      PStep10
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hi Matt,

      I am aware, that watchdog timer can only be enabled from File Convert settings. I was referring to reset watchdog register. Once the watchdog has been enabled it will count down and then trigger reconfiguration.

      I am looking for an option to stop/reset watchdog through the registers. There is a bit 1 in register offset 0x00 (ug_m10_config.pdf) named "reset watchdog timer", but when I set this register MAX10 does reconfigure to a different CFM. I think this is not the correct behavior.

      What is the method of stopping watchdog timer without triggering reconfiguration?

      Kind regards,

      Piotr

      • ShafiqY_Intel's avatar
        ShafiqY_Intel
        Icon for Frequent Contributor rankFrequent Contributor
        5 years ago

        Hi Piotr,

        The IP register can only reset the watchdog timer. If you want to disable it, you can disable it in File Convert Programming File tools.

        May I know how you reset the watchdog using the register? If possible, send me the screenshot of your command or write it down.

        Regards,

        Shafiq
