How to configure the dsp ip core to make a 16-bit 3-input adder with good timing

Hi, I want to use DSP to do the internet checksum offloading. I want to do a+b+c (16 bits) in one clock and I am using Agilex7 AGFB023R25A2E2V.

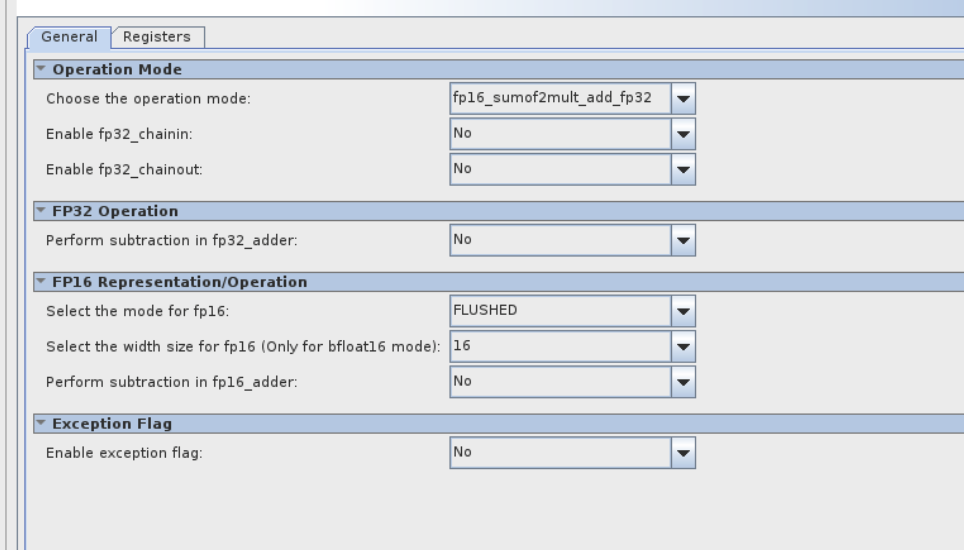

I selected Native Floating Point DSP and configured to "Sum of two FP16 multiplication with FP32 addition mode" using "fp16_mult_top_a*fp16_mult_top_b(16'b1) + fp16_mult_bot_a*fp16_mult_bot_b(16'b1) + fp32_adder_a".

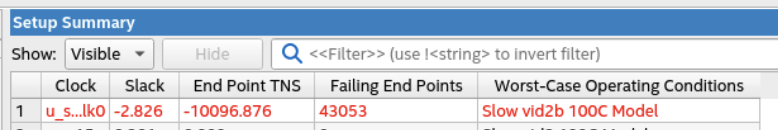

However, the timing of my project changed from 0 ns to -2 ns with about 18 DSP enabled. Do you know how to configure the DSP to have a better timing performance? Do I have a better choice for the IP core?

Ethernet

4 Replies

  • Kshitij_Intel's avatar
    Kshitij_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,


    Please add the pipeline registers. If still not solved, please share your project I will have a look once.


    Thank you,

    Kshitij Goel


  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    1 year ago

    Unfortunately you don't even tell the intended clock frequency, so we can't determine if 1 clock latency could be feasible. Apparently it's not.

    Don't see that internet checksum uses float numbers.

  • Kshitij_Intel's avatar
    Kshitij_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    1 year ago

    Hi,

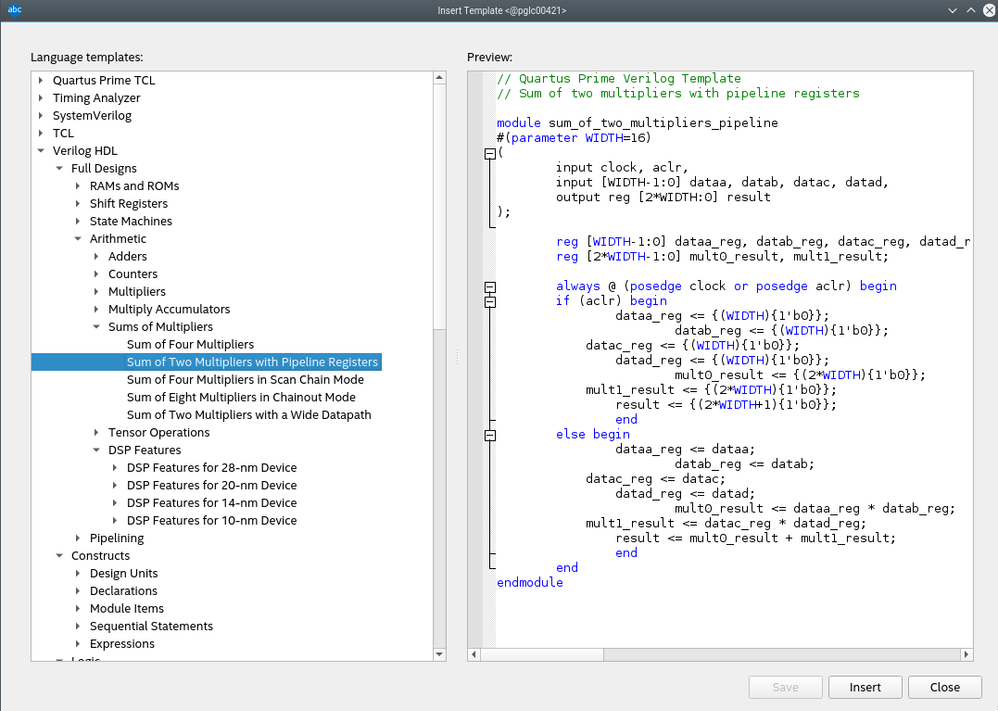

    Best you use the template available within the Quartus for multiplication and addition. Sharing the screenshot below.

    The Maximum frequency of operation depends on the multiple factors and configuration and pipelining and device speed grade and Quartus version as well.

    Language Templates

    Thank you,

    Kshitij Goel
