How can be Generate Accurate 622.08MHz(For STM-4 application) clock in ArriaV PLL with the help of input clock 77.76 Mhz

This is regarding the clock (622.08 M) generation issue from ArriaV PLL.

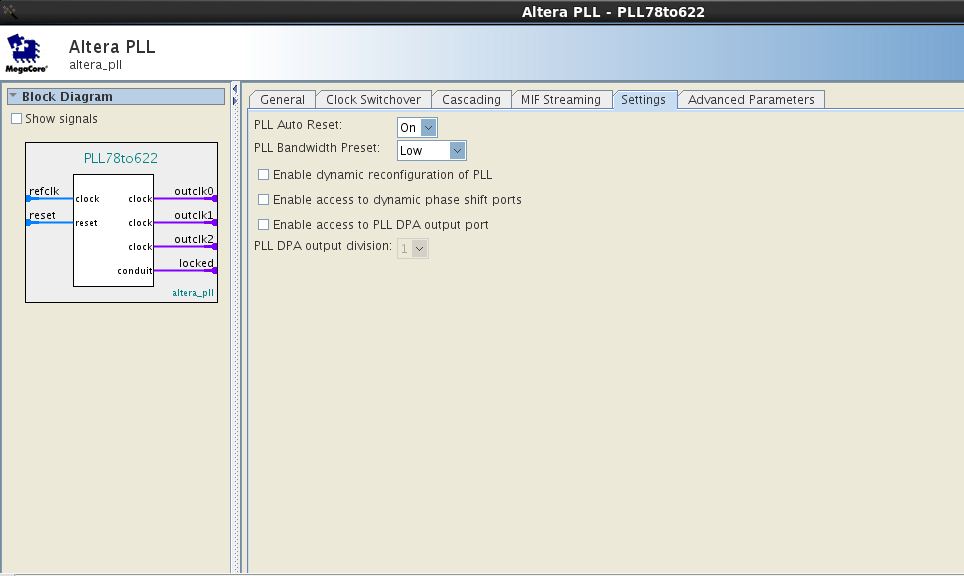

Input clock is 77.76 Mhz to PLL block. Expected PLL output clock is = 622.08 Mhz, But Actual generated clock is 622.28 Mhz. Pll clock is constraint by using “derive_pll_clocks”. Please see the attached screen sort for PLL configuration
