HDMI IP - YCrCb 4:2:2 pixels mapping + color depth indication

Any response?

Hi amildm,

Apologize for the delayed response.

>As for the YCrCb 4:2:2 video format, what's mapping of the pixels on the port vid_data of the HDMI IP (two pixels per clock config)?

>As for 10-bits color depth format, how can I receive this indication from the HDMI IP? What indication about the

>pixel color depth does the HDMI IP provide?

For YCbCr 4:2:2 input format , you may refer to Chapter 5.1.2. Source Video Resampler of the HDMI Intel® FPGA IP User Guide that shows a diagram on how the pixel data is mapped.

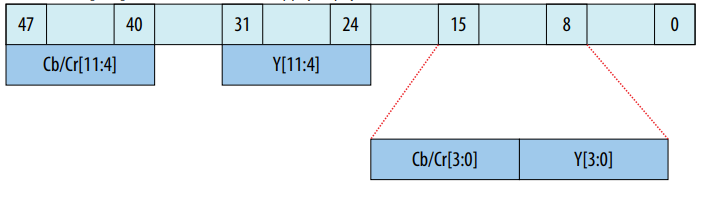

Below picture shows the YCbCr 4:2:2 color space pixel bit-field mappings per symbol, this is an example for YCbCr422 is transmitted using 24bpp (8 bpc) HDMI transport:

For Intel HDMI IP, the most significant bit (MSB) will be fill first with pixel data and the unused Least-significant bit (LSBs) are set to zero. The placement of Y and Cb/Cr data is as shown in above figure. For 10bpc case, the placement of Y and Cb/Cr will be the same.

You may refer below link for more information:

HDMI Intel® FPGA IP User Guide - 5.1.2. Source Video Resampler

Thank you for your patience.

Best Regards,

ZulsyafiqH_Intel

Hi amildm,

Good day.

I wish to follow up with you about this case.

Hoping to hear back from you so that we can proceed for next step.

Thank you.

Best Regards,

ZulsyafiqH_Intel

Hi amildm,

Good day.

Based on your latest response, you are actually using 16bpc, not 10 bpc.

For 10 bpc it should be as below:

Cb/Cr[47:38], Y[31:22], Cb/Cr[15:11] , Y[10:6].

For HDMI, it receive any color formats from the source which means need to set it from source side.

Basically for HDMI, there's a correlation between bpc setting and TMDS clock. Generally, sending higher bpc setting would mean TMDS clock runs faster.

HDMI IP User Guide

You may refer to the link below for more information:

HDMI Intel® FPGA IP User Guide - 4.3.1.2. PLL Intel FPGA IP Cores

Thank you.

Best Regards,

ZulsyafiqH_Intel

Hi amildm,

Good day.

I wish to follow up with you on this case. Do you still have further inquiries on this issue? I will remain this loop open for 2 days.

If we do not receive any response from you to the previous answer that I have provided.

This thread will be transitioned to community support.

If you have a new question, feel free to open a new thread to get support from Intel experts.

Otherwise, the community users will continue to help you on this thread.

Thank you.

Best Regards,

ZulsyafiqH_Intel

Hi amildm,

We do not receive any response from you to the previous answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread.

Thank you.

Best Regards,

ZulsyafiqH_Intel
