Error when running pin_assignment tcl script

Hi everyone,

After I used IP catalog to generate my DDR3 controller, the system will automatically generate pin_assignment tcl script.

However, when I ran the tcl the console showed the error messages below.

Error:Info: *******************************************************************

Error:Info: Running Quartus Prime TimeQuest Timing Analyzer

Error:  Info: Version 17.1.0 Build 590 10/25/2017 SJ Standard Edition

Error:  Info: Copyright (C) 2017 Intel Corporation. All rights reserved.

Error:  Info: Your use of Intel Corporation's design tools, logic functions

Error:  Info: and other software and tools, and its AMPP partner logic

Error:  Info: functions, and any output files from any of the foregoing

Error:  Info: (including device programming or simulation files), and any

Error:  Info: associated documentation or information are expressly subject

Error:  Info: to the terms and conditions of the Intel Program License

Error:  Info: Subscription Agreement, the Intel Quartus Prime License Agreement,

Error:  Info: the Intel FPGA IP License Agreement, or other applicable license

Error:  Info: agreement, including, without limitation, that your use is for

Error:  Info: the sole purpose of programming logic devices manufactured by

Error:  Info: Intel and sold by Intel or its authorized distributors. Please

Error:  Info: refer to the applicable agreement for further details.

Error:  Info: Processing started: Wed Oct 24 01:21:35 2018

Error:Info: Command: quartus_sta -t D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_pin_assignments.tcl ddr3_test_v2

Error:Info: Quartus(args): ddr3_test_v2

Error:Error (23031): Evaluation of Tcl script D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_pin_assignments.tcl unsuccessful

Error:Error: Quartus Prime TimeQuest Timing Analyzer was unsuccessful. 1 error, 0 warnings

Error:  Error: Peak virtual memory: 468 megabytes

Error:  Error: Processing ended: Wed Oct 24 01:21:37 2018

Error:  Error: Elapsed time: 00:00:02

Error:  Error: Total CPU time (on all processors): 00:00:02

Error:------------------------------------------------

Error:ERROR: Unable to find active revision name. Make sure there is an open, active revision name.

Error:  while executing

Error:"get_micro_node_delay -micro WL_DCD -parameters {IO VPAD} -in_fitter"

Error:  (file "D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_timing.tcl" line 105)

Error:  invoked from within

Error:"source "$script_dir/DDR3_p0_timing.tcl""

Error:  (file "D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_pin_assignments.tcl" line 179)

Error:------------------------------------------------

Error:  while executing

Error:"exec $cmd -t [ info script ] $project_name "

Error:  invoked from within

Error:"if { ![info exists quartus(nameofexecutable)] || ($quartus(nameofexecutable) != "quartus_sta" && $quartus(nameofexecutable) != "quartus_map") } {

Error:	pos..."

Error:  (file "D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_pin_assignments.tcl" line 129)

Error:  invoked from within

Error:"_source D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_pin_assignments.tcl"

Error:  ("uplevel" body line 1)

Error:  invoked from within

Error:"uplevel 1 $cmd "

Error:  (procedure "source" line 5)

Error:  invoked from within

Error:"source "D:/Quartus/projects/18.1/ddr3_test_v2/DDR3_controller/DDR3/DDR3_p0_pin_assignments.tcl""

I spend about 2 days on this problem but still can't find the solution.

It would be very help if anyone have similar experience or just give me some hint.

Thanks!

1 Reply

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor

    Hi,

    Have you performed analysis and synthesis of the design by clicking Processing > Start > Analysis and Synthesis?

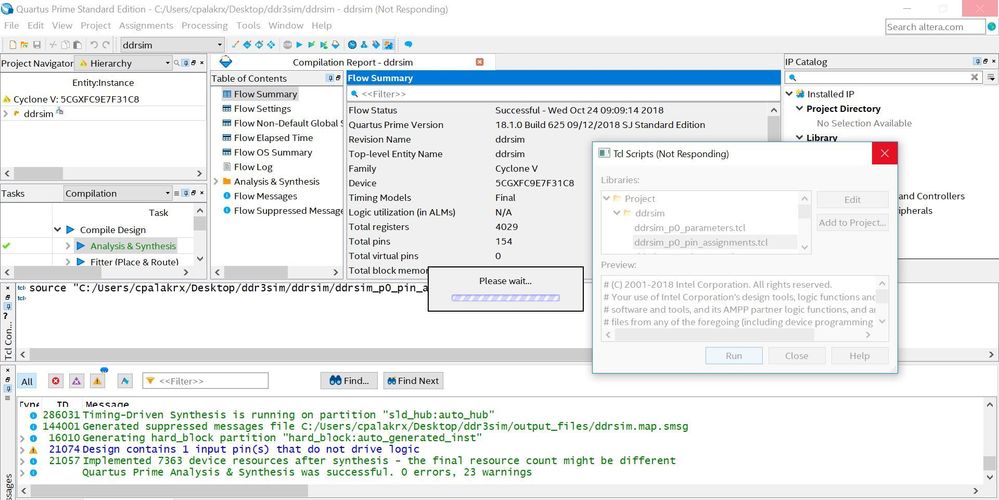

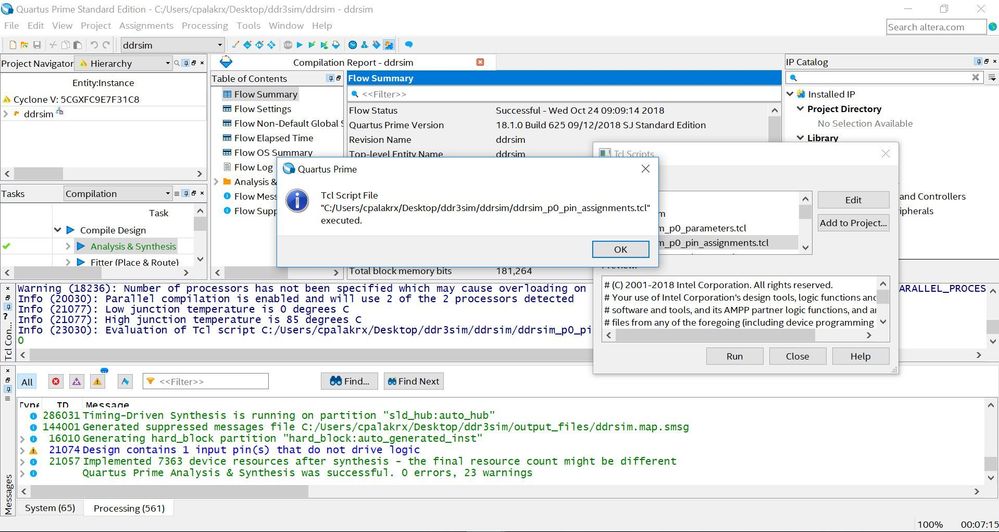

    I have successfully run xx_pin_assignment.tcl script attached the image and tcl console log.

    I have used Quartus 18.1 std.

    Let me know if this has helped resolve the issue you are facing or if you need any further assistance.

    Best Regards,

    Anand Raj Shankar

    (This message was posted on behalf of Intel Corporation)
