EMIF ip fetches error while simulating in vcs

I tried to simulate the emif IP, but it shows below error:

227213 ns: ERROR: iossm_bf_cpu_cpu_test_bench/ihp_read is 'x'

$stop at time 227212598000 Scope: unex_block_design.emif_s10_0.emif_s10_0.arch.arch_inst.io_ssm_inst.io_ssm.inst.PROTECTED File: PROTECTED Line: 0

i used vcs 2019 sp2

generated for device 1SD280PT2F55E2VGS1 from quartus 19.4

steps used :

1.generated the default IP

2.go to sim folder>synopsys vcs

3.run command sh vcs_setup.sh

7 Replies

  • NurAida_A_Intel's avatar
    NurAida_A_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Dear DChak3,

    Thank you for joining this Intel Community.

    I believed your design contain Intel® Stratix® 10 HPS EMIF thus you will see this error is generated. It is a known issue as Stratix 10 HPS EMIF simulation is not supported.

    You may refer to this KDB link for more details -->

    https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/emif/2018/error--iossm_bf_cpucputestbench-ihpread-is--x-.html

    Thanks

    Regards,

    Aida

    • DChak3's avatar
      DChak3
      Icon for New Contributor rankNew Contributor
      6 years ago

      Hi nuraidaA

      I am not using Intel® Stratix® 10 HPS EMIF instead I am using External Memory Interfaces Intel stratix 10 FPGA IP. It is simulating if I am using this IP with other bunch of IP's. But while I was trying to create libraries using the script provided by quartus. When i select the option from tools>Generate simulator script for IP.

      I ran the script and it shows error mentioned above when it reaches to simulate EMIF IP.

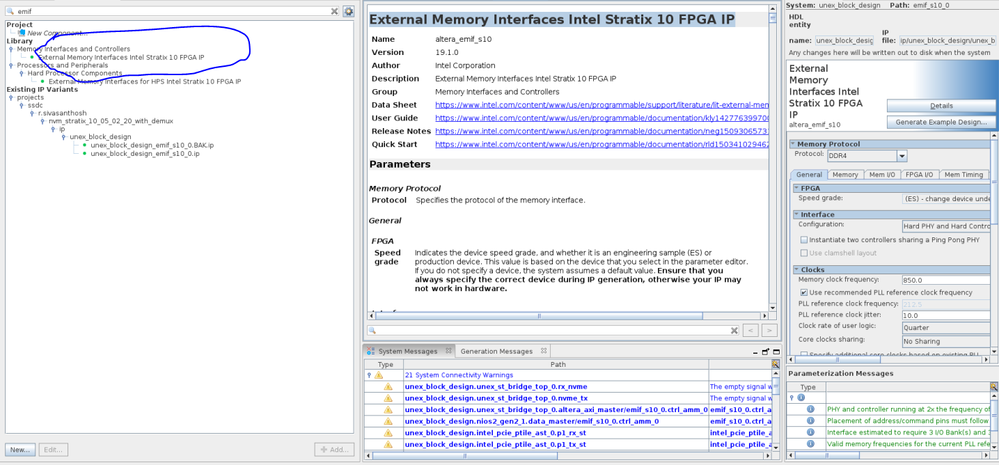

      Reference snapshot attached. The blue circled one is used in the design.

  • NurAida_A_Intel's avatar
    NurAida_A_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    6 years ago

    Hi,

    I did internal searching and found that the simulation tools supported for VCS Quartus version 19.4 is O-2018.09-SP2-2 (64-bit Linux only).

    Can you try to swicth to vcs 2018 sp2 and see if the error still replicate ?

    Regards,

    Aida

    • alinave's avatar
      alinave
      Icon for New Contributor rankNew Contributor
      5 years ago

      Hi Aida,

      I see the same problem while simulating the EMIF design which does not contain the HPS core. I am using xcelium2019.09_s007 and here is the error I see during configuration:

      170038 ns: ERROR: iossm_bf_cpu_cpu_test_bench/ihp_read is 'x'

      Simulation stopped via $stop(1) at time 170037750 PS + 3

      xcelium> exit

      Can you help with this?

      Thanks,

      Naved

      • alinave's avatar
        alinave
        Icon for New Contributor rankNew Contributor
        5 years ago

        PS: The device is Stratix 10 GX which anyway does not have HPS and the Quartus version is 19.4.
