EMIF ip fetches error while simulating in vcs

I tried to simulate the emif IP, but it shows below error: 227213 ns: ERROR: iossm_bf_cpu_cpu_test_bench/ihp_read is 'x' $stop at time 227212598000 Scope: unex_block_design.emif_s10_0.emif_s10_0.ar...
NurAida_A_Intel's avatar
NurAida_A_Intel
Icon for Frequent Contributor rankFrequent Contributor
6 years ago

Hi,

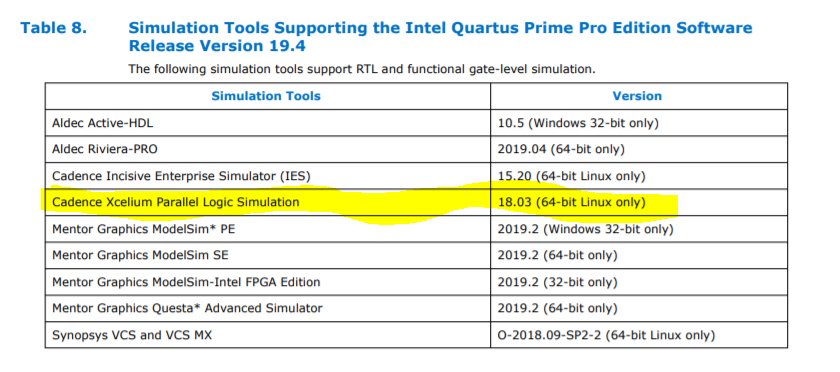

I did internal searching and found that the simulation tools supported for VCS Quartus version 19.4 is O-2018.09-SP2-2 (64-bit Linux only).

Can you try to swicth to vcs 2018 sp2 and see if the error still replicate ?

Regards,

Aida

  • alinave's avatar
    alinave
    Icon for New Contributor rankNew Contributor
    5 years ago

    Hi Aida,

    I see the same problem while simulating the EMIF design which does not contain the HPS core. I am using xcelium2019.09_s007 and here is the error I see during configuration:

    170038 ns: ERROR: iossm_bf_cpu_cpu_test_bench/ihp_read is 'x'

    Simulation stopped via $stop(1) at time 170037750 PS + 3

    xcelium> exit

    Can you help with this?

    Thanks,

    Naved

    • alinave's avatar
      alinave
      Icon for New Contributor rankNew Contributor
      5 years ago

      PS: The device is Stratix 10 GX which anyway does not have HPS and the Quartus version is 19.4.

    • NurAida_A_Intel's avatar
      NurAida_A_Intel
      Icon for Frequent Contributor rankFrequent Contributor
      5 years ago

      Hi @alinave​ ,

      Sincerely sorry for the delay due to long holiday in my region.

      Have you try to used this supported tools version for Xcelium for Quartus 19.4?

      Regards,

      Aida

    • NurAida_A_Intel's avatar
      NurAida_A_Intel
      Icon for Frequent Contributor rankFrequent Contributor
      5 years ago

      Also may I know which memory simulation model are you using (for example Micron or etc)?
