ContributorHello,
I am looking for dynamic reconfiguration of C10 GX fPLL.
But from the parameter editor, I was referenced to xcvr user guide.
The guide only explain the structure of the pll.
But how could I reconfigure it?
BRs,
Johnson
Hi ,
For confidentiality purpose the communication is taken to private conversation
Frequent ContributorHi ,
Kindly requesting to refer the below document page no: 87 for the reconfiguration
https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/cyclone-10/c10gx-51003.pdf
ContributorHi Rahul,
Thank you!
I searched the document and not able to find the register address of M/N counter..
https://www.intel.com/content/www/us/en/programmable/documentation/hki1486507600636.html
or what's the definition of register address 0x12B, 12C, 133, 134, 13 and 136....
I checked the xcvr_phy, neither..
BRs,
Johnson
Frequent ContributorIs it possible to follow the below application note
https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/an/an728.pdf
ContributorHi Rahul,
Thank you for the update.
This AN provides some useful information but can not directly mapped to FPLL.
My question is related to the C10 GX VIP reference design,
https://fpgacloud.intel.com/devstore/platform/18.0.1/Pro/cyclone-10-gx-hdmi-4kp60-with-video-and-image-processing-pipeline-reference-design/

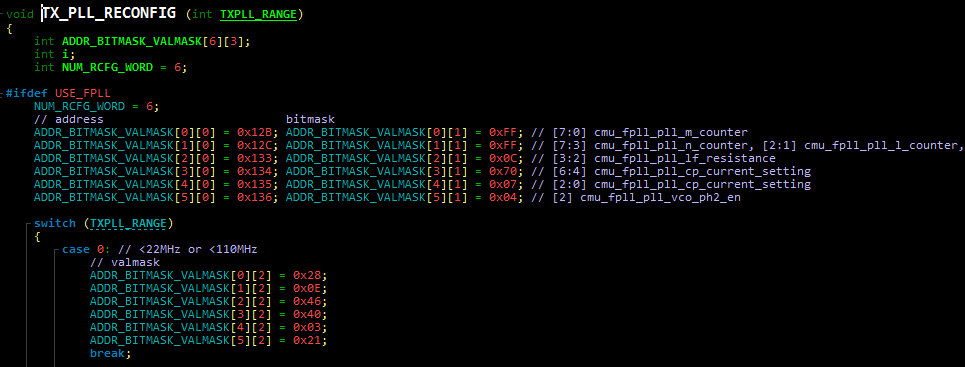

Inside the project, we noticed the fPLL was reconfigured to different parameters by function "TX_PLL_RECONFIG'.
And we need understand and modify this function to make the product work.
Please help!
BRs,
Johnson
Frequent ContributorHi Johson ,
Can you please help me to understand further on the issue , what is the issue you are facing exactly , is the reference design is not working .
Or , you could not able to change the setting on the fpll of the reference design.
The reason for the ask , is that i can contact the designer owner to solve the issue
ContributorHi Rahul,
My problem is I need to dynamically change the output settings for different resolutions.
That meas the fPLL output clock rate must following my settings. e.g. 1080p60, 1080p30, 2160p30.....
Therefore I need the know how to do that..
Unfortunately, I did not find any document reference to the fPLL register definitions nor the user guide..
BRs,
Johnson
