Board_skew_parameter_in_ddr3_controller

Question

Hi Team,

I have to add skew for dq, dqs and dqm signals for dddr3 from SI analysis report.

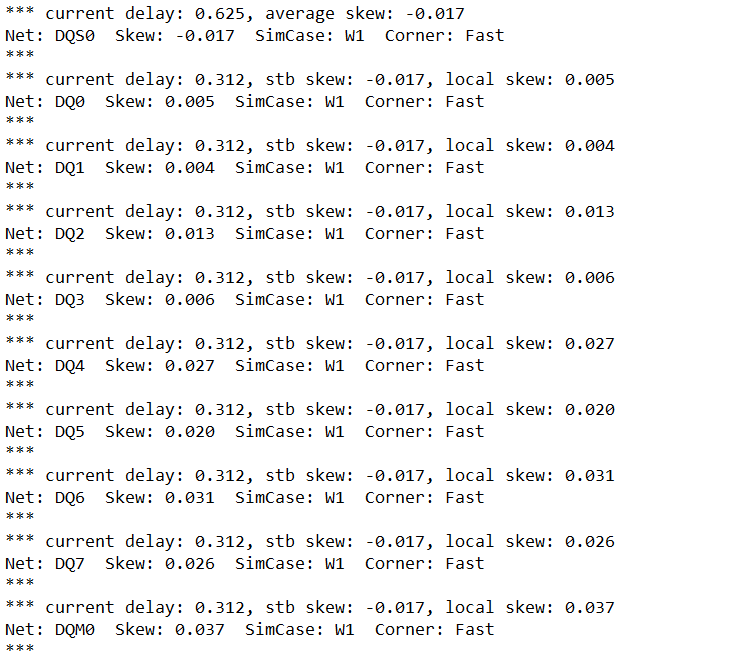

The following image contains the report sample,

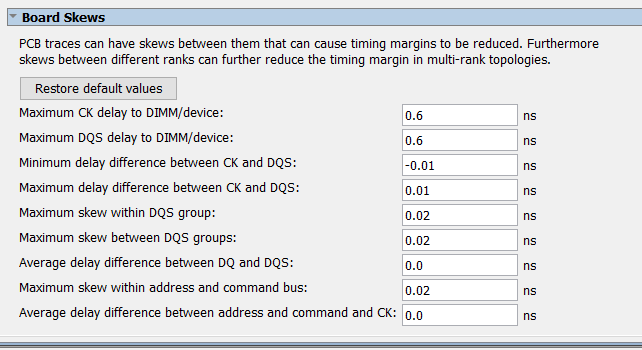

how to configure the above skew setting in the below controller skew settings,

adzimzm_altera · Answer

Hello,You can use Board Skew Parameter Tool to do the calculation.Here the guideline: https://community.intel.com/t5/FPGA-Wiki/Board-Skew-Parameter-Tool-Guide/ta-p/735276Regards,Adzim
