ASMII parallel read dataout is all zeros

Hello,

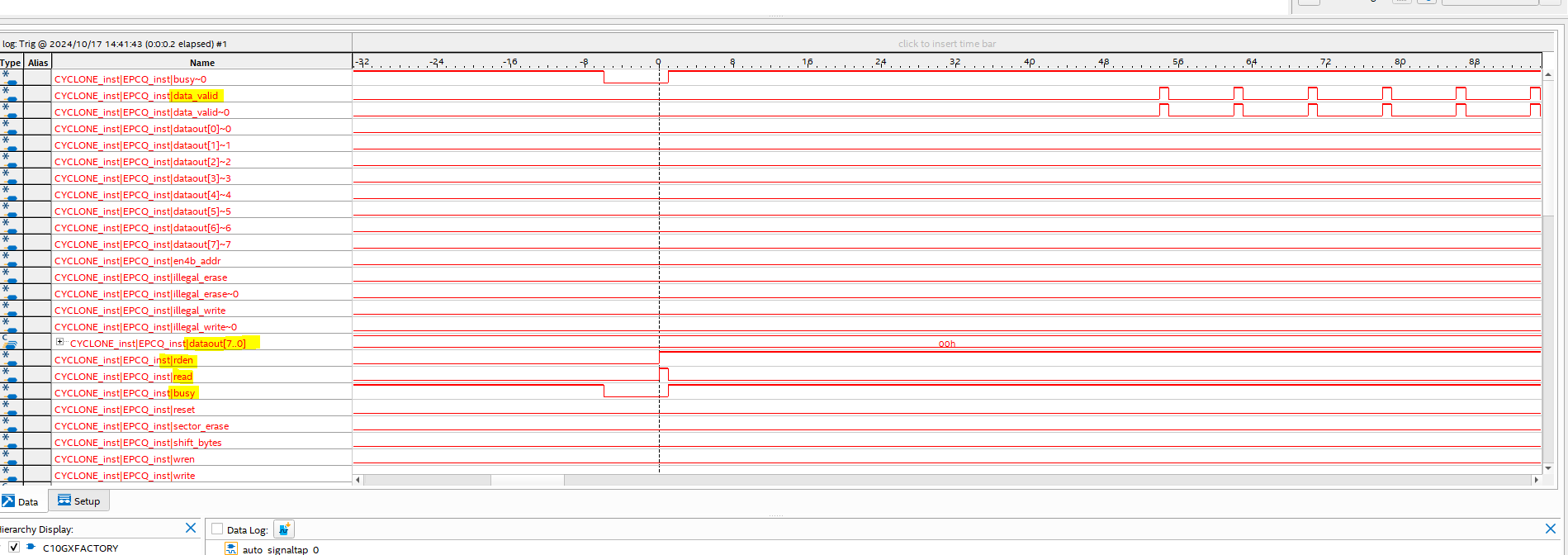

I am using the ASMII parallel IP core for my cyclone GX device. I am attempting to read data off of the flash chip. I used the JTAG chain /byte blaster to program the flash chip (so I know that something is written to memory). Whenever I try to read from the flash chip using the IP core, the dataout is stuck at all zeros (see the below signalTap picture).

I do not have any warnings that the dataout is being driven to a constant or being synthisized away and I believe the contents of the flash chip are not all zeros.

Do you have any suggestions for debugging this issue?

I am going to start adding synth noprune/preserve and see if this helps.

Kind Regards,

James

Video

7 Replies

  • justj's avatar
    justj
    Icon for New Contributor rankNew Contributor
    2 years ago

    Hello,

    I noticed this issue for all addresses on the first 2 pages (starting at 0x0).

    I eventually determined that the root of this problem seems to be related to Altera's IP core. For whatever reason, the ASMII parallel IP core has terrible fanout and key signals are easily synthesized away signals (even though the physical QSPI pins are interfaced within the module). Adding synthesis attribute noprunes and adding additional registers to help reduce this fanout helped and prevented key registers from being synthesized away.

    An example of this would be the ASMII parallel IP core's busy signal. This busy signal is connected to an actual busy pin on the flash chip, yet it can be synthesized away without proper noprune synthesis attributes. Any ideas as to why this could be happening? Does this have something to do with the way the IP core is synthesized (the pins aren't called out in the QSF/pin assigner)?

    Kind Regards,

    James

  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    2 years ago

    Hi,


    Please check the signal at the top level port. Are they connected to the correct pin?

    Also, is the board connected to any output?


    Regards,

    Aiman


  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    2 years ago
    • As we do not receive any response from you on the previous question/reply/answer that we have provided. Please login to ‘ https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.
