Why does PTA show zero W for F-tiles in Hierarchical Design Editor

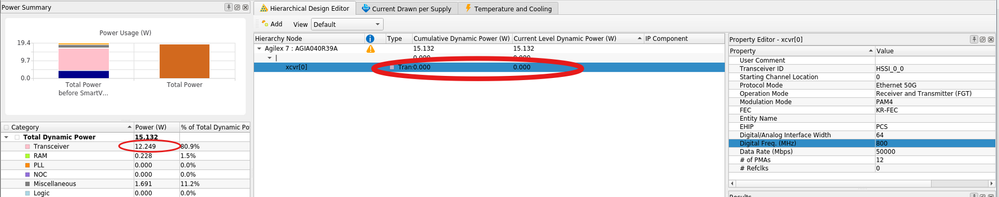

Why is there no power shown in the Hierarchical Design Editor(25.3: Current Level Dynamic Power, 26.1: Self Dynamic Power) when adding a fully utilized F-tile?

The Total Power does however show the expected power.

Is it a bug or a feature?



Power

2 Replies

  • Farabi_Altera's avatar
    Farabi_Altera
    Icon for Regular Contributor rankRegular Contributor
    3 months ago

    Hello,



    Do you have the ptc file you can share? I can verfy in Altera environment.



    regards,

    Farabi



  • Farabi_Altera's avatar
    Farabi_Altera
    Icon for Regular Contributor rankRegular Contributor
    2 months ago

    Hello,



    You need to run full compilation and assign all pins correctly, then PTA will show the correct power report. I tried in Altera environment and can see all the power rails reported correctly.



    regards,
    Farabi
