Whether Winbond Flash supported by Quartus Programmer?

We are using ArriaV 5AGXMB1G4F40 FPGA in our design.Earlier,the flash device used was “S25FL512”.Since the part is not available , we have replaced “W25Q512JVFIM”.

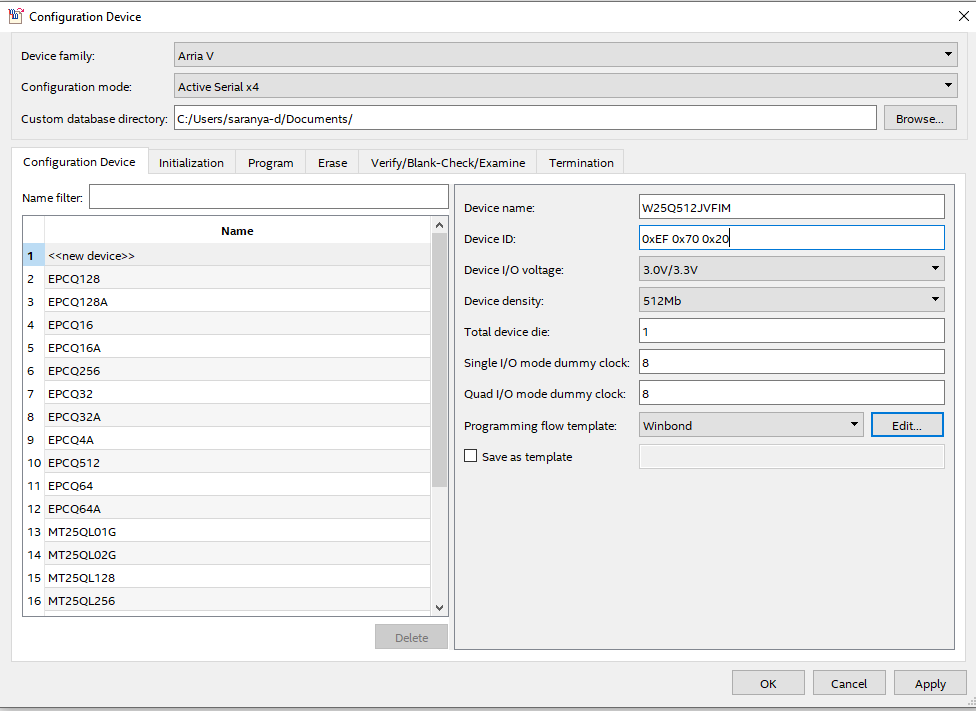

While converting .sof to .jic using Quartus,the above mentioned flash has not listed as default.Therby,we have add the flash in the wizard under ” add device” category.

After conversion,tried to flash .jic.We could able to program .jic successfully[Quartus programmer displays the status as successful].But config_done has not set.

Kindly help us on this issue.

1 Reply

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Seems like the setting on the flash is not correct. Just want to check if you are putting the correct command as per winbond datasheet? Also, have you probe the signal during configuration? We can get more clue there.
