Video Clock Output to SDI II in Agilex 5

I'm trying to output a video chain using the VVP cores but I can't figure out how to connect the VCO to the SDI II. on Quartus 18.1, the VCO core would output vid_data[19..0], vid_trs, and vid_ln[10...
Core Logic
aucamera1's avatar
aucamera1
Icon for New Contributor rankNew Contributor
8 days ago

Hi Wincent,

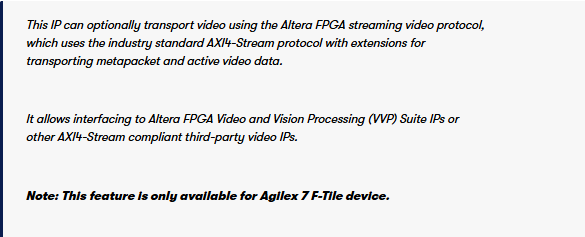

unfortunately, as I stated earlier, there are no similar pins between the two IP cores.

Wincent_Altera's avatar
Wincent_Altera
Icon for Regular Contributor rankRegular Contributor
7 days ago

Hi aucamera1​ ,

I check with our design team - the VVP for GTS SDI II connection is available in newer release of Quartus v25.3.1.

So that features is supported in v25.3.1 for GTS SDI II - Agilex 5.
You just need to create a design based on Agilex 5 OPN number, By right the connection shall be ready there. Let me know if you still no getting it.

Regards,
Wincent
