VCCIO_PIO on the agilex7 datasheet

Hello

about Single-Ended I/O Standards Specifications on Agilex 7 :

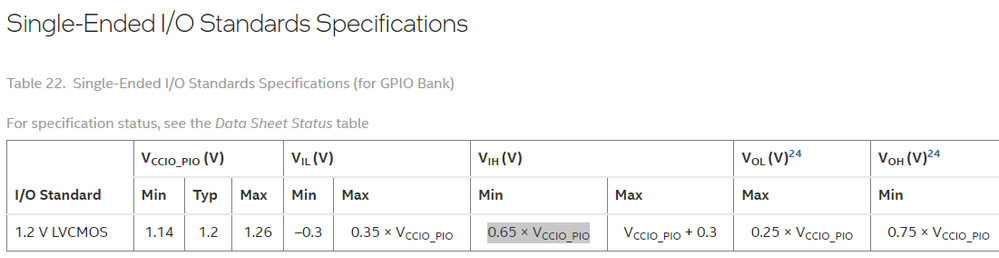

it mentioned on datasheet that VIN_H = 0.65 × VCCIO_PIO
https://www.intel.com/content/www/us/en/docs/programmable/683301/current/single-ended-i-o-standards-specifications.html

My question is about the VCCIO_PIO value : what's its value ?

I am working on 3rd part board . should I ask the vendor ? or its a value that i can set /view from Quartus prime tool ?

Thx

Kikoss

Generic Io
  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    1 year ago

    Hello,

    Sorry for the delay. For your information the value of the VCCIO_PIO as stated in the table from the datasheet is 1.2V for I/O standard 1.2V LVCMOS.

    Hope that answers your question and do let me know if I can assist you further.

    Best regards,

    Nazrul Naim

4 Replies

  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    Hello,

    Good day

    Thank you for reaching out. I'm Nazrul Naim looking into your issue and allow me some time to look into your issue. I shall come back to you with findings.

    Thank you for your patience.

    Best Regards,

    Nazrul Naim


  • NazrulNaim_Intel's avatar
    NazrulNaim_Intel
    Icon for Regular Contributor rankRegular Contributor
    1 year ago

    Hello,

    Sorry for the delay. For your information the value of the VCCIO_PIO as stated in the table from the datasheet is 1.2V for I/O standard 1.2V LVCMOS.

    Hope that answers your question and do let me know if I can assist you further.

    Best regards,

    Nazrul Naim
