Using ghrd.v setting GPIO question

Can you show your code? Did you make the change in the Pin Planner? More details needed.

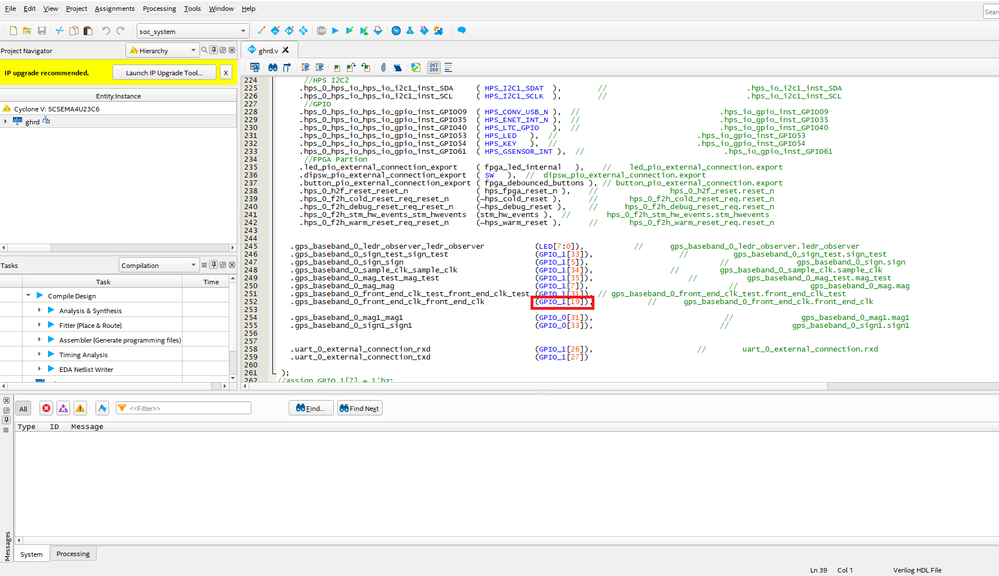

I don't change the Pin Planner. I change the conduct gpio place in ghrd and compile like the graph below I changing GPIO_1[2] to GPIO_1[19], but when execute the code in board,it still maintain old pin in board. I tried the IP upgrade but it don't fix the problem.

Hi syuanyou,

Do you still need help on this?

May I know did you check with any other GPIO pins which having signals which you can observe?

Thanks.

Regards,

Aik Eu

Hi,

The problem still exist. The other GPIO pins have the same problem. I replaced the GPIO in the pin planner with a new variable and reconnected, but it didn't improve the issue. I also tested it using SignalTap, and the GPIO operation on SignalTap is working correctly, just like the settings in GHRD.

Thank you

Hi syuanyou,

I think can try with any GPIO LED indicators which you can use to observe the signal as reference to the issue on your design which you are facing:

For your reference:

https://www.intel.com/content/www/us/en/design-example/715027/cyclone-v-simple-pwm-design-w-cyclone-de0-cv.html

Thanks.

Regards,

Aik Eu

Hi,

I found the issue. the path to the .sof file in the programmer was incorrectly set to the previous file. After correcting it, everything is working fine now.

Thank you.

Hi syuanyou,

Glad to hear that the issue has been resolved. I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
