Honored ContributorTo generate Pulse signals with Generic tri-state controller
Hi !

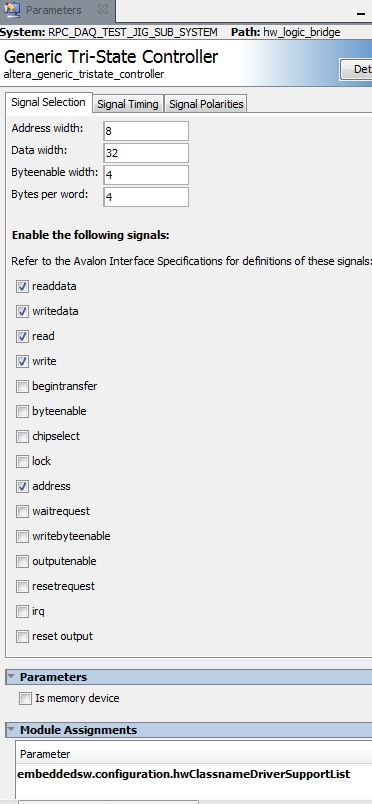

My task is to generate pulse and trigger signals using Quartus and NIOS Processor. I'm using Generic tri-state controller to communicate with registers in Quartus from NIOS to enable the signals. Registers are below. But in In A_OUT_REG2, i am not getting any value, can anyone go through below code and suggest me.-- Register Address Map
constant A_IN_REG0 : std_logic_vector(7 downto 0)
constant A_OUT_REG0 : std_logic_vector(7 downto 0)
constant A_IN_REG1 : std_logic_vector(7 downto 0)
constant A_IN_REG2 : std_logic_vector(7 downto 0)
constant A_IN_REG3 : std_logic_vector(7 downto 0)
constant A_IN_REG4 : std_logic_vector(7 downto 0)
constant A_IN_REG5 : std_logic_vector(7 downto 0)
constant A_IN_REG6 : std_logic_vector(7 downto 0)
constant A_IN_REG7 : std_logic_vector(7 downto 0)
constant A_OUT_REG1 : std_logic_vector(7 downto 0)
constant A_OUT_REG2 : std_logic_vector(7 downto 0)
eve_stop_flag = IORD_32DIRECT(HW_LOGIC_BRIDGE_BASE, A_OUT_REG2); /
if(eve_stop_flag == 1)
{
eve_cnt = IORD_32DIRECT(HW_LOGIC_BRIDGE_BASE, A_OUT_REG1);
Pac_cmd = 0x00CF;
Pac_data = (unsigned short)eve_cnt;
Pac_data = (eve_cnt & 0xFFFF0000) >> 16;
Pac_size = 2;
printf("%d\n",eve_cnt); // Not getting any values
udp_Ack_Process();
eve_stop_flag = 0;
SW_system_rst();
}
entity logic is
port
(
RPC_OUT : out std_logic_vector(127 downto 0);
TRIGGER_OUT : out std_logic;
LCLK : in std_logic;
MCU_ADDR : in std_logic_vector(7 downto 0);
MCU_nRD : in std_logic;
MCU_nWR : in std_logic;
MCU_DATA : inout std_logic_vector(31 downto 0);
nRST : in std_logic
);
end logic;
architecture behav of logic is
signal RPC_OUT_AUX : std_logic_vector(127 downto 0);
signal RPC_OUT_AUX_1 : std_logic_vector(127 downto 0);
signal MCU_DINs : std_logic_vector(31 downto 0);
signal MCU_DOUTs : std_logic_vector(31 downto 0);
signal OUT_REG0s : std_logic_vector(31 downto 0);
signal command_reg_0 : std_logic_vector(31 downto 0);
signal command_reg_1 : std_logic_vector(31 downto 0);
signal command_reg_2 : std_logic_vector(31 downto 0);
signal command_reg_3 : std_logic_vector(31 downto 0);
signal command_reg_4 : std_logic_vector(31 downto 0);
signal command_reg_5 : std_logic_vector(31 downto 0);
signal command_reg_6 : std_logic_vector(31 downto 0);
signal RPC_OUT1s:STD_LOGIC;
signal RPC_OUTs : std_logic_vector(127 downto 0);
signal eve_freq : std_logic_vector(31 downto 0);
signal eve_cnt : std_logic_vector(31 downto 0);
signal RAW_COUNTs : std_logic_vector(31 downto 0);
signal Triggers:STD_LOGIC;
signal eve_enables:STD_LOGIC;
signal trig_enables:STD_LOGIC;
signal eve_test_end_flag:STD_LOGIC;
MCU_DATA <= MCU_DOUTs when MCU_nRD = '0' else (others => 'Z');
MCU_DINs <= MCU_DATA;
------------------------------------------------------------------------------
-- Read and write to registers
------------------------------------------------------------------------------
process(LCLK, nRST)
begin
if(nRST = '0')
then
--LED_OUT(0) <= '0';
OUT_REG0s <= X"44445555";
trig_enables <= '0';
-- Read from registers
elsif(LCLK'event and LCLK = '1')
then
if(MCU_nRD = '0') -- read pulse from CPU
then
case MCU_ADDR is
when A_OUT_REG0 => MCU_DOUTs(31 downto 0) <= OUT_REG0s;
when A_OUT_REG1 => MCU_DOUTs(31 downto 0) <= RAW_COUNTs;
when A_OUT_REG2 => MCU_DOUTs(0) <= eve_test_end_flag; /////
when others => MCU_DOUTs <= X"FFFFFFFF";
end case;
end if;
-- Write to registers
if(MCU_nWR = '0') -- write pulse from MCU
then
case MCU_ADDR is
--when A_IN_REG0 => LED_OUT(0) <= MCU_DINs(0);
when A_IN_REG1 => command_reg_0 <= MCU_DINs;
when A_IN_REG2 => command_reg_1 <= MCU_DINs;
when A_IN_REG3 => command_reg_2 <= MCU_DINs;
when A_IN_REG4 => eve_freq <= MCU_DINs; --notice one offset
when A_IN_REG5 => eve_cnt <= MCU_DINs;
when A_IN_REG6 => command_reg_5 <= MCU_DINs;
when A_IN_REG7 => command_reg_6 <= MCU_DINs;
--eve_enables <= MCU_DINs(0);
trig_enables <= '1';
when others => NULL;
end case;
else
--trig_enables <= '0';
--LED_OUT(0) <= '0';
end if;
end if;
end process;
----------------------------------------------------------------------------
---- pulse generator AIM to Generate PULSE and TRIGGER
----------------------------------------------------------------------------
process(LCLK)
variable count1 : std_logic_vector(31 downto 0);
variable count2 : std_logic_vector(31 downto 0);
begin
if(nRST = '0')
then
count1 := (others => '0');
eve_enables <= '1';
RPC_OUTs <= X"00000000000000000000000000000000";
eve_test_end_flag <= '0';
elsif(LCLK'event and LCLK = '1')
then
if(trig_enables = '1' and eve_enables = '1')then
eve_test_end_flag <= '0';
if(count1 < (eve_freq + 2))
then
count1 := count1 + '1';
end if;
if(count1 = 1)
then
RPC_OUTs <= X"FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF";
end if;
if(count1 = 3)
then
RPC_OUTs <= X"00000000000000000000000000000000";
end if;
-- generate trigger
if(count1 = 15)
then
Triggers <= '1';
end if;
if(count1 = 40)
then
Triggers <= '0';
end if;
if(count1 = eve_freq) -- frequency
then
count2 := count2 + '1';
count1 := (others => '0');
end if;
if(count2 >= eve_cnt) -- event counter
then
count2 := (others => '0');
eve_enables <= '0';
RPC_OUTs <= X"00000000000000000000000000000000";
eve_test_end_flag <= '1';
end if;
end if;
end if;
end process;
