STRATIX 10 JTAG Configure problem

Device: Stratix 10 ​1SX280HH3F55E2VG

SOFTWARE: Quartus 19.1

Encounter a configuration problem, as follows:

Can identify the JTAG chain, where FPGA0 can download the sof file normally, FPGA1 fails to download the sof file, stuck at 2%

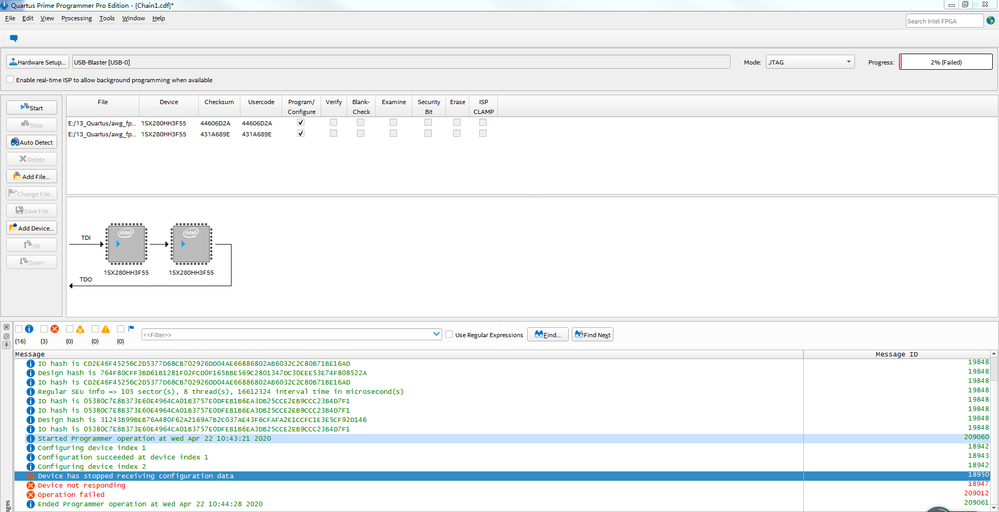

The prompt is as follows: (specifically as shown in the figure below)

Error (18950): Device has stopped receiving configuration data

Error (18947): Device not responding

Error (209012): Operation failed

At present, only one of the several boards has such a problem.

Tried changing MSEL to JTAG ONLY mode has no effect.

May I ask what may be the cause.

3 Replies

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    May i know what USB Blaster you are using? II or I? Can you change the TCK frequency to 6MHz and try again?

    Thank You

  • hzhan133's avatar
    hzhan133
    Icon for New Contributor rankNew Contributor
    6 years ago

    USB Blaster I.

    It is difficult to determine the specific error from the error message. Please try these two methods first:

    1. Quartus project do not bring GXB, DDR, or EMIF, only do the simplest lighting project

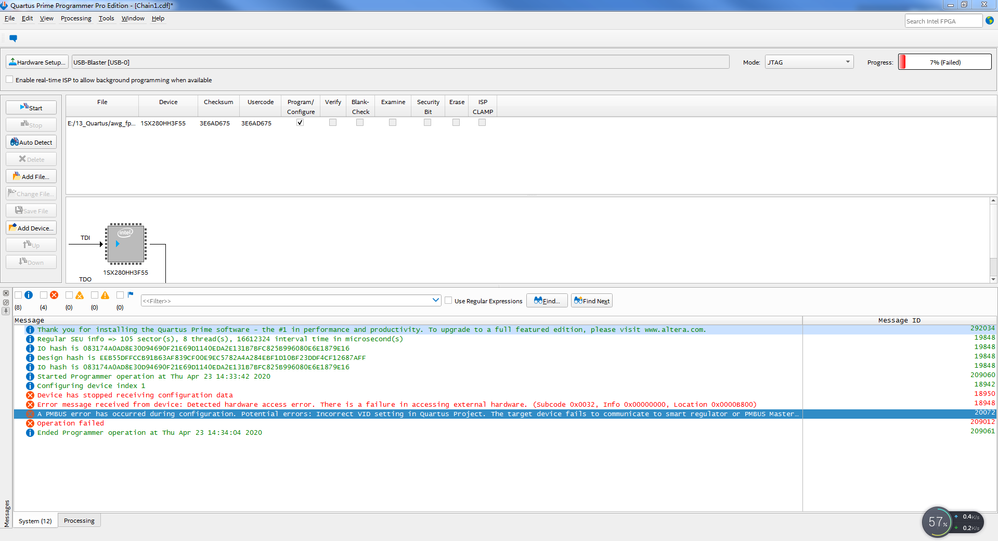

    A: The error has changed. The prompt may be a PMBUS configuration problem, but this SOF configuration file is OK on other boards or different FPGAs of the same board. For details, please refer to the attachment
