Some issue with "ASMI IP parallel ip"

Hi ,

I am currently trying to use PCI-E to transfer data(8byte/once) and write the data to EPCQ through ASMI(page write), but unexpected phenomena appeared in the result, as shown in Fig.

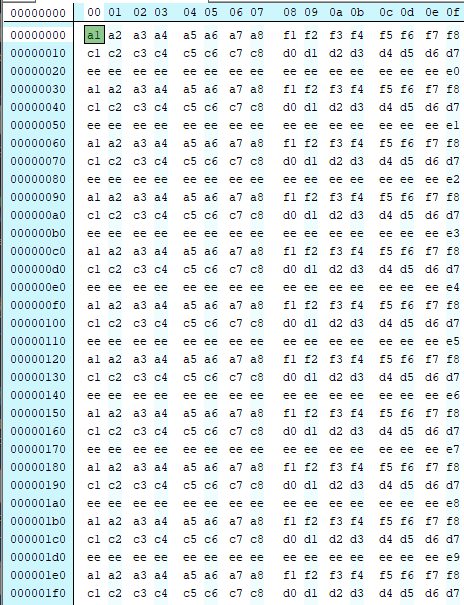

Here is the data I transferred:

And when I use SignalTap to check the input waveform of "ASMI IP", the status is all good, as shown in Fig(The beginning data matches the data I transmitted, in order A1h, A2h, A3h, A4h, A5h, A6h, A7h, A8h):

But when I checked the data from EPCQ, I found that the data was wrong.

So why does SignalTap look good, but the result is wrong?

Does anyone have some ideas to share with me?

Thanks for your answers.

  • open01's avatar
    open01
    4 years ago

    Hi,

    Thanks for your response.

    Finally I know where the problem is.....

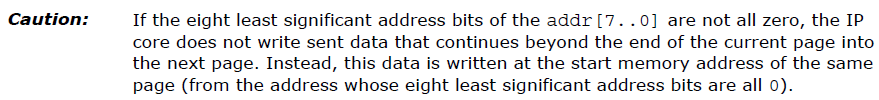

    Because when I use page write, I have to pay attention to the relevant regulations of start address as shown in user guide,

    Thanks again for your assistance.

2 Replies

  • YuanLi_S_Intel's avatar
    YuanLi_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hi,


    Can you try to remove the sector before writing into it? Also, you might need to have some delay after executing write operation.


    Regards,

    Bruce


    • open01's avatar
      open01
      Icon for Occasional Contributor rankOccasional Contributor
      4 years ago

      Hi,

      Thanks for your response.

      Finally I know where the problem is.....

      Because when I use page write, I have to pay attention to the relevant regulations of start address as shown in user guide,

      Thanks again for your assistance.
