Questions about RapidIO II IP core

Hello!

I am trying to use Rapidio II IP core to establish SRIO communication between FPGA and DSP. Here are some questions I have met:

Question 1

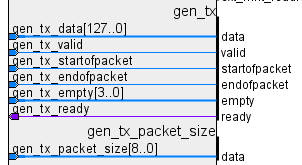

Are these signals used by users to transmit data packets?

Question 2

I notice that these signals belongs to an avalon-st sink. Should I create an avalon-st source by myself to send the data packets to him? If so, must this avalon-st source be created by Qsys or platform designer?

Question 3

The signal gen_tx_data is 128bits. Is the maximum bit width of a data packet only 128 bits?

4 Replies

  • paveetirrasrie_Altera's avatar
    paveetirrasrie_Altera
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi,


    Below is the answers for your questions:


    1. Yes, those are the Pass-Through Interface Signals
    2. The Avalon-ST pass-through interface is an optional interface that is generated when you select the Avalon-ST pass-through interface in the Transport and Maintenance page of the RapidIO II parameter editor.
    3. Yes, only 128 bits.


    For more details, please refer to Rapid IO II UG.
