Quartus Prime Timing Analyzer Tcl console windows - command result

Hi

when using the Tcl window in the Timing Analyzer console.

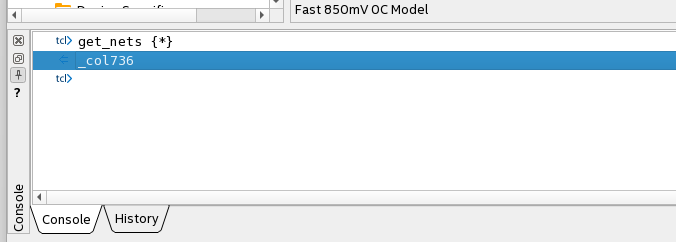

the output of the command get_nets{*} is _col736 (or any other number)

is it possible to see the list of the nets ?

  • OrF's avatar
    OrF
    3 years ago

    I understand my error .

    I'm used to the Synopsys tcl which prints the collection / string.

    here, in the timing analyzer , it returns collection and to print it need to use

    foreach_in_collection and get_net_info -name

3 Replies

  • OrF's avatar
    OrF
    Icon for Occasional Contributor rankOccasional Contributor
    3 years ago

    I understand my error .

    I'm used to the Synopsys tcl which prints the collection / string.

    here, in the timing analyzer , it returns collection and to print it need to use

    foreach_in_collection and get_net_info -name

  • Nurina's avatar
    Nurina
    Icon for Regular Contributor rankRegular Contributor
    3 years ago

    Hi,


    I can see that your question has been addressed, I now transition this thread to community support. If you have a new question, Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a feed/response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.


    p/s: If any answer from community or Intel support are helpful, please feel free to mark as solution, give Kudos and rate 4/5 survey
