Protection diode for FPGA IO pins

Hi to all.

For my project I am using a Cyclone IV-E FPGA.

The lowest input voltage on its IO pins is -0.5V (as showed on Altera datasheet).

I have many input that can be lower that -0.5v (around -3v beacause its come from analog comparator) but for me their value condsidered as 0V.

Can I use a diode as protection of FPGA IO pins and to interpreted the negative voltage values as 0/GND?

7 Replies

  • AnandRaj_S_Intel's avatar
    AnandRaj_S_Intel
    Icon for Regular Contributor rankRegular Contributor
    6 years ago

    Hi,

    Yes, We can use external diode so that we can meet the devices absolute maximum DC input voltage and maximum allowed overshoot/ undershoot voltage requirements.

    Regards

    Anand

    • CLa_R's avatar
      CLa_R
      Icon for Occasional Contributor rankOccasional Contributor
      6 years ago

      Thank you.

      Even if it's not properly referring to FPGAs, could you tell me a suitable diode?

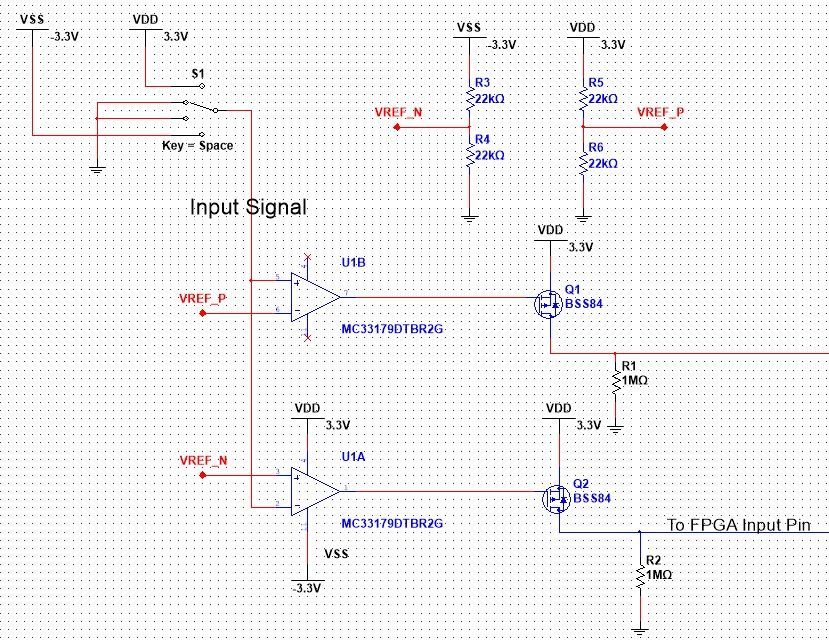

      In the meantime, I have come up with another solution, which uses a transistor and which should be both faster and safer than the diode. I enclose the scheme. What do you think?

      • AnandRaj_S_Intel's avatar
        AnandRaj_S_Intel
        Icon for Regular Contributor rankRegular Contributor
        6 years ago

        Hi,

        Even if it's not properly referring to FPGAs, could you tell me a suitable diode?

        >>Sorry we can'l recommend any part number However you can refer development kit schematics for it.

        In the meantime, I have come up with another solution, which uses a transistor and which should be both faster and safer than the diode. I enclose the scheme. What do you think?

        >>Yes, Design with MOSFE looks good, Even i have used it in my first project.

        Regards

        Anand

  • CLa_R's avatar
    CLa_R
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

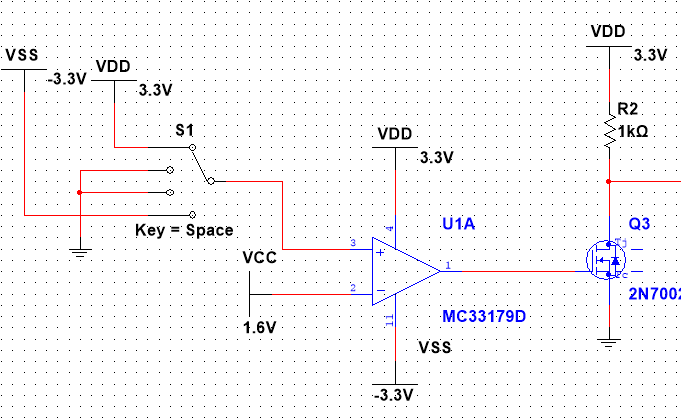

    I'm also trying this scheme, which uses a N type MOSFET.

    Which is the best solution?

    Also, what is the input impedance of IO PINs of the FPGA?

  • CLa_R's avatar
    CLa_R
    Icon for Occasional Contributor rankOccasional Contributor
    6 years ago

    Thanks for the reply.

    I still have some doubts concerning the input impedance, in my case, I use a 3.3V LVTTL level, but in table 6.2 I don't see any value of the input resistance.

    How should I interpret?
