Pin Planner does not have all options

Pin Planner and Assignment Editor do not have all the options available for I/O pins. like Pullup / Pulldown, Terminator Resistor, Bus Hold, Open Drain, Current Drive, DDR etc. Where does one go to get all these settings, I keep getting compile / synthesis warning saying

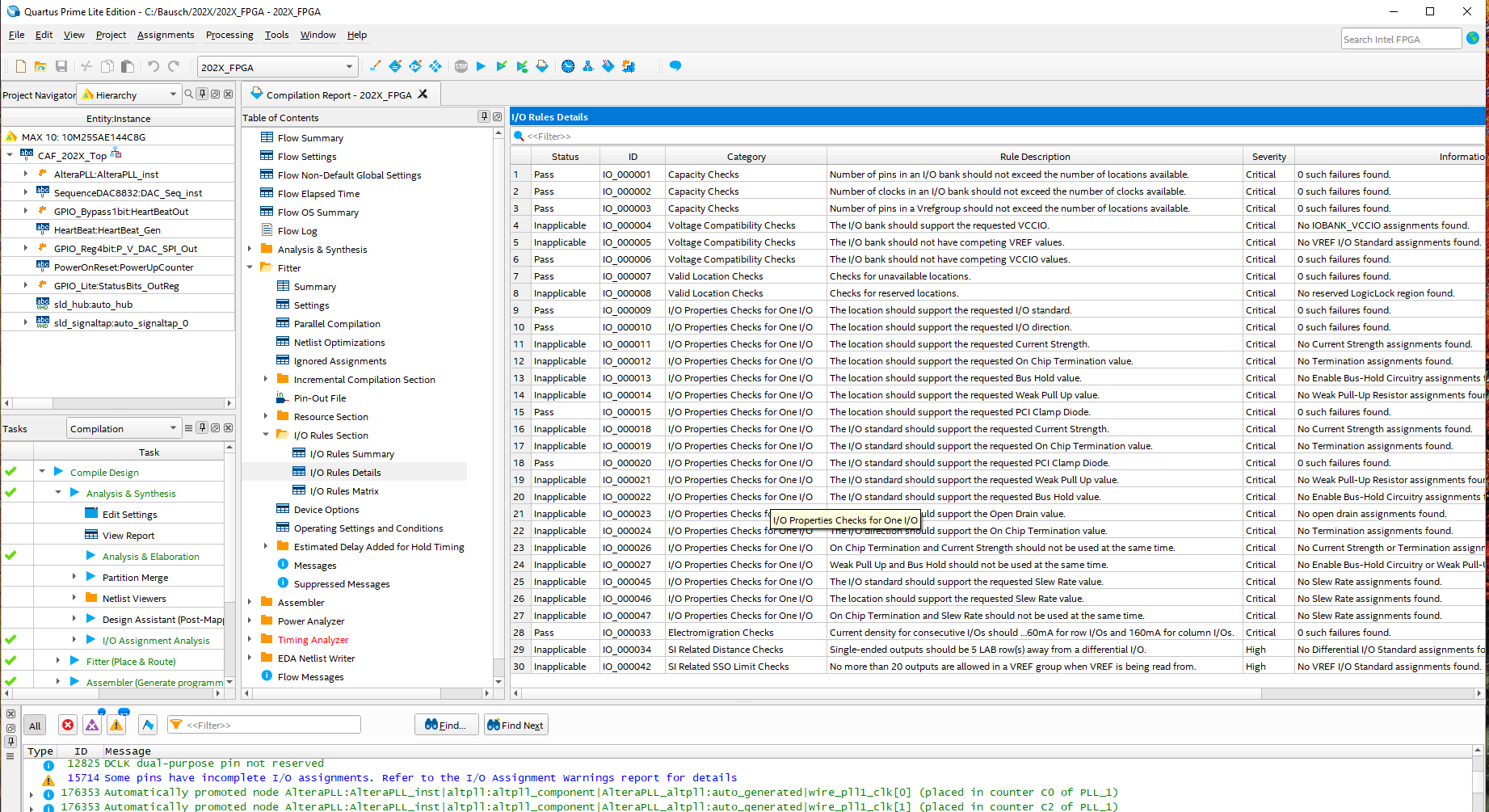

Warning 15714

"Some pins have incomplete I/O assignments. Refer to the I/O Assignments warnings report for details.

Warning 171167

"Invalid Fitter Assignments. See the Ignored Assignments panel in the Fitter Compilation Report for more information"

4 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    You can safely ignore that warning. To add additional I/O-related assignments in Pin Planner, you can right-click a column header in the All Pins list to enable viewing additional columns, each one being an assignment.

    You should see these assignments in Assignment Editor as well. I'm not sure why you're not.

  • AminT_Intel's avatar
    AminT_Intel
    Icon for Regular Contributor rankRegular Contributor
    4 years ago

    Hello,

    May I know which FPGA device are you using?

    Thank you.

    • AminT_Intel's avatar
      AminT_Intel
      Icon for Regular Contributor rankRegular Contributor
      4 years ago

      We do not receive any response from you to the previous question/reply/answer that I have provided. This thread will be transitioned to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.
