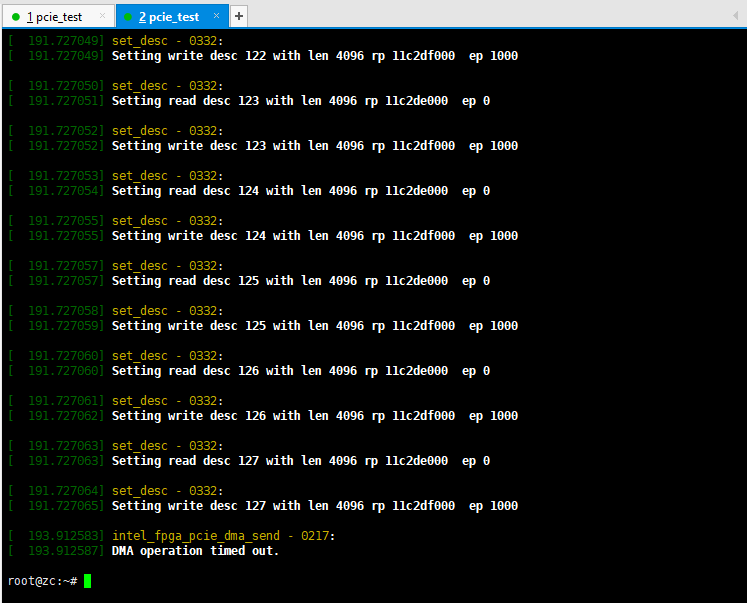

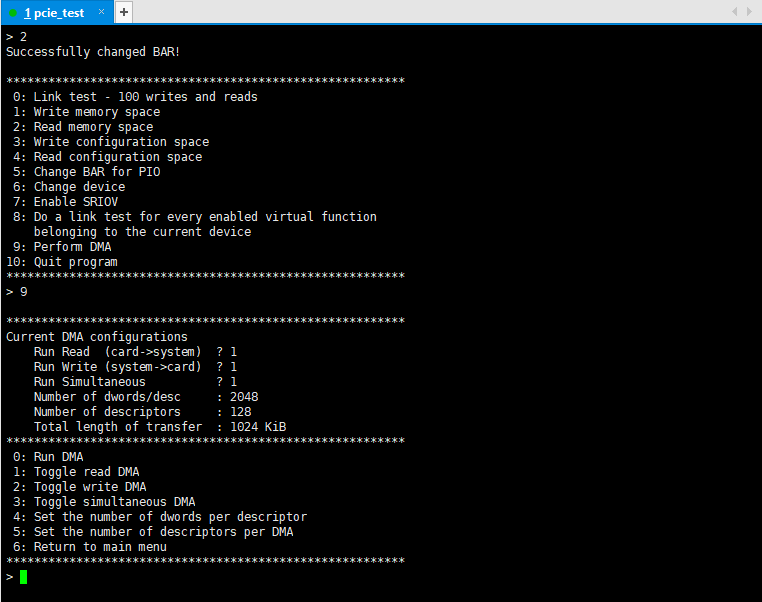

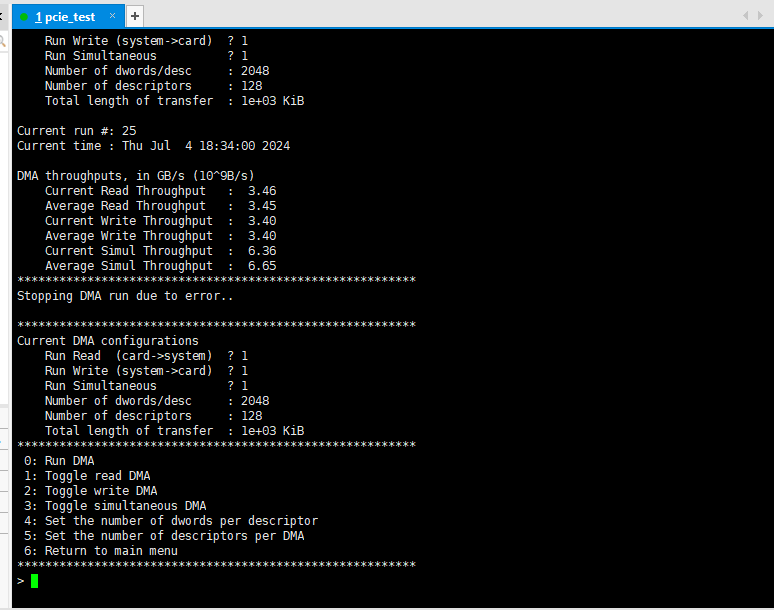

PCIe DMA transfer timeout

Hi @allen18,

Thanks for reaching out.

Allow me some time to investigate your issue. I shall come back to you with the findings.

Thanks.

Best Regards,

Ven

*Kindly note that 8 July 2024 is a national public holiday. Please expect a delay in response.

Hi @allen18,

May I check with you on the following items?:

1. Can you please check if the PCIe linked up successfully when the error occurred?

2. Are you using an Altera development kit or a custom board?

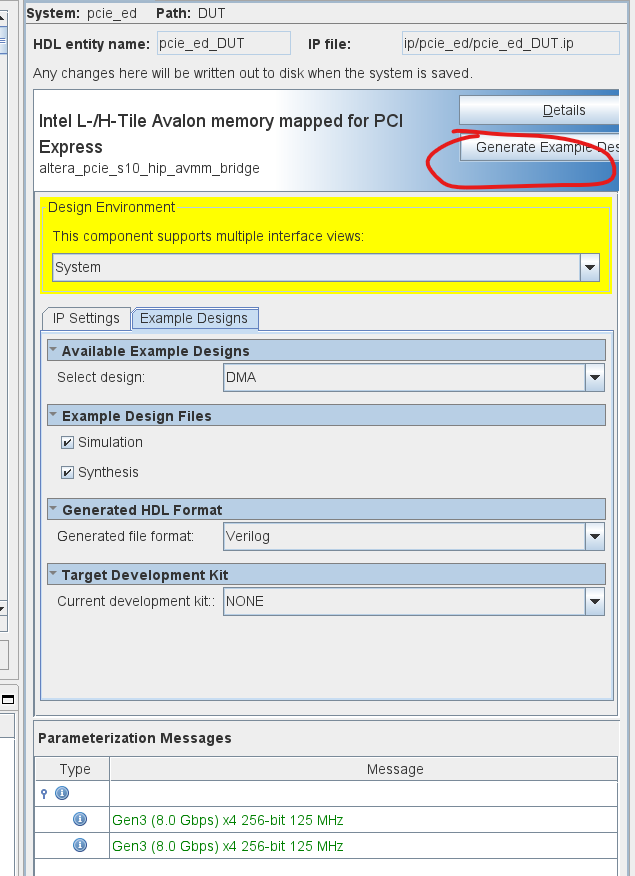

3. Could you please share the .ip file, so that I can generate the Example Design based on the parameters you specified?

4. Is this a root port or an endpoint design?

5. Are you using the 'DMA' Example Design?

6. Which PCIe Gen is used in the Example Design?

Thanks.

Best Regards,

Ven

Hi @allen18,

Thanks for attaching the files.

Could you please try to run the DMA test using S10 Dev Kit following the FPGA Wiki? This checks if the environment you are using is compatible with the example design.

Reference Design: Gen3x8 AVMM DMA - Stratix 10:

https://community.intel.com/t5/FPGA-Wiki/Reference-Design-Gen3x8-AVMM-DMA-Stratix-10/ta-p/735907

Another thing, since you're using a custom board, could you please confirm that the correct pin assignments have been made before compiling the project?

Thanks.

Best Regards,

Ven

Hi @allen18,

Do you have any updates?

Thanks.

Best Regards,

Ven

Hi @allen18,

Could you please file an Intel® Premier Support (IPS) case to enable us to further analyze and debug your issue?

You can do this by reaching out to your Distributor Field Application Engineer (DFAE), or you may follow the steps outlined in the KDB provided below.

KDB: https://www.intel.com/content/www/us/en/support/programmable/articles/000086520.html

Thanks.

Best Regards,

Ven

Hi @allen18,

Meanwhile, I will try to run the DMA test on my end to see if I can replicate your issue. Could you please address the following questions, and also please see the suggestions below?

1. Please provide the 'lspci' information.

2. Are you seeing the error in the latest version of QPP software, v24.2?

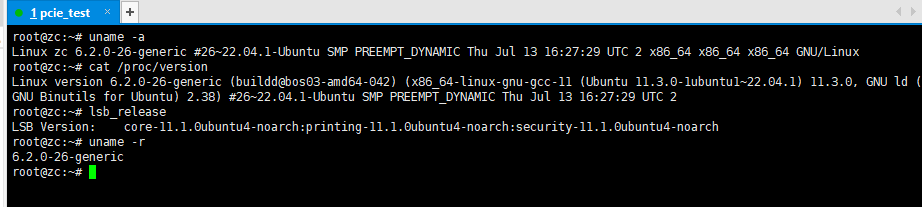

3. Please check the OS and the version used. We suggest you follow the OS requirement stated in ug-683616: https://www.intel.com/content/www/us/en/docs/programmable/683616/20-3/hardware-and-software-requirements.html

4. When running the DMA test, we suggest the CPU not run other tasks.

Thanks.

Best Regards,

Ven

Hi @allen18,

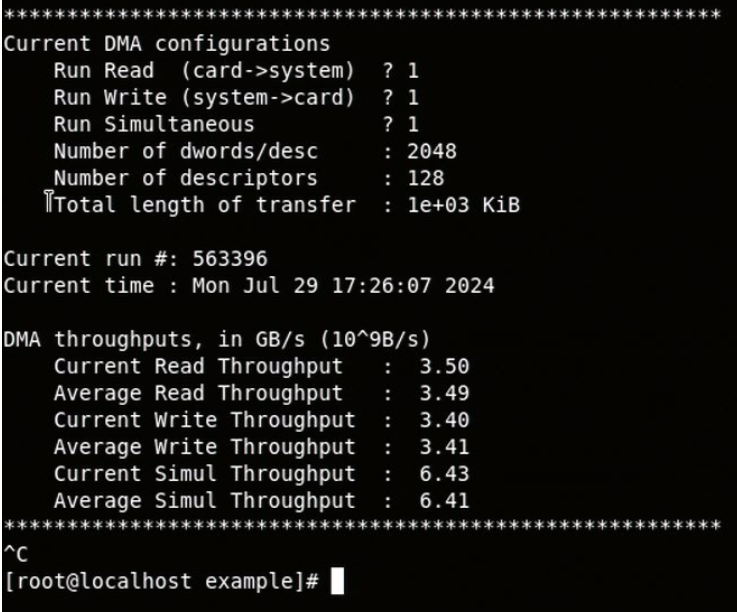

I was able to run the DMA test for over 50,000 iterations in my environment without encountering any DMA timeout issues, as shown in the attachment. The operating system used is CentOS 7. The software drivers generated from the design examples in both QPP v22.3 and v24.2 (the latest version) were tested and did not run into errors when performing the DMA test in an infinite loop.

May I ask which operating system you are using in your environment? Please ensure that it meets the requirements specified in the user guide, as the driver has been tested and verified with the OS.

Thanks.

Best Regards,

Ven

Hi @allen18,

Yes, I agree with you. The software driver generated with the design example has been tested in the environment (OS version etc.) as specified in the UG. If a different environment is used, there may be issues when running the test, and modifications to the code might be necessary.

With that said, do you have any further questions in this thread? If not, I will transition the thread to community support.

Thanks.

Best Regards,

Ven

Hi @allen18,

Since there are no further inquiries in this thread, I now transition this thread to community support. If you have a new question, please login to https://supporttickets.intel.com/, view details of the desire request, and post a feed or response within the next 15 days to allow me to continue to support you. After 15 days, this thread will transition to community support. The community users will be able to help you with your follow-up questions.
