My 2nd Intel FPGA design

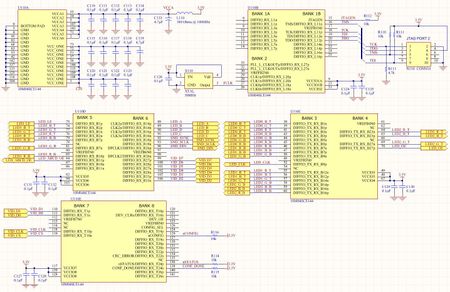

Hello everyone, This is my 2nd usage of an Intel FPGA on a board, and I just want to make sure I'm not making any mistake. On the previous board I used the MAX 10 10M02SC, and now that I need to up...
ChiaLing_T_Intel's avatar
ChiaLing_T_Intel
Icon for Contributor rankContributor
7 years ago

Hi,

By referring to Max 10 GPIO user guide, Figure 1, 10M02 and 10M04 devices are migratable. https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/max-10/ug_m10_gpio.pdf

However, there is no information available to confirm if it is exact drop in replacement part. You would need to further verify thru Quartus Prime software with migration feature enable. When the migration feature is enabled in your design, you should always follow the common pin placement as stated in the Quartus Prime software Pin Migration Window in the Pin Planner.

Thank you
