MAX10 Dual Configuration

I am using the MAX10 Dual Configuration. The device settings in the Quartus are shown in the image below.

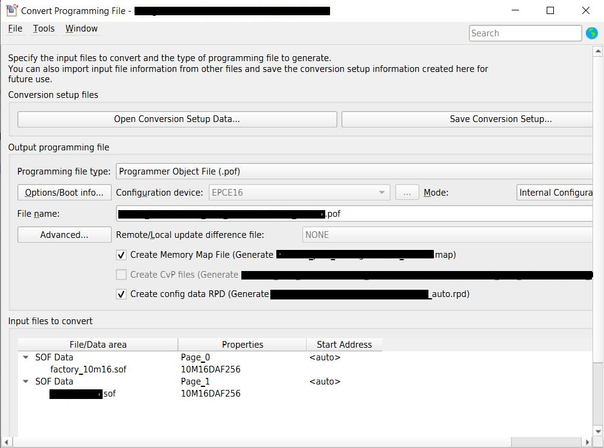

The settings for the generation of the .pof file and the .rpd files are shown below:

The CONFIG_SEL file is set by a jumper via a 10K resistors either high or low.

I can update the flash memory, but it appears that both CFM0 and CFM1 are programmed with the same image.

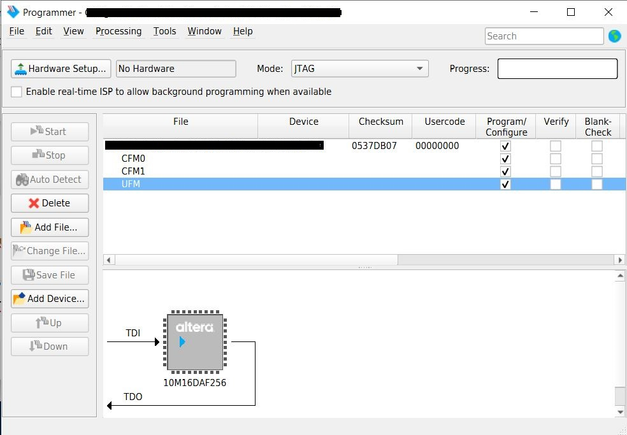

Also, when I use JTAG to program CFM0 and CFM1 with two different images, it seems that the programming of CFM1 overwrites the CFM0 image.

What could be wrong?



Configuration

1 Reply

  • FvM's avatar
    FvM
    Icon for Super Contributor rankSuper Contributor
    1 hour ago

    Hi,
    not quite clear how you are trying to program the configuration.

    Dual configuration .pof file is usually generated with CPF tool combining .sof data of factory and application image.

    When loaded into Quartus programmer, flash partitions are shown separately and can be individually programmed.

    Regards
    Frank
