max10 compile warning ID=169202 inconsistent VCCIO across multiple banks of configuration pins >> How to solve this ?

Dear, 10M08SCU169I7G with vccio1B=1.8v; vccio8=3.3V ​ (vccio1a=2.5v)Configuration pins are in banks 1B + 8 Quartus prime 18.0 standard build 614 Warning (169202): Inconsistent VCCIO across mult...
ShafiqY_Intel's avatar
ShafiqY_Intel
Icon for Frequent Contributor rankFrequent Contributor
5 years ago

Hi Stefan,

The problem of this warning ID because the configuration pins are powered by different Vccio in different banks.

Solution: Enforce a configuration voltage level in the Configuration tab

Cheers

  • SVran's avatar
    SVran
    Icon for New Contributor rankNew Contributor
    5 years ago

    Hello Shafiq,

    Pin-planner signal list shows vccio1b=1.8 and vccio8=3.3 because I defined these io-standards on their signals in assignment-editor.

    assignments > device > device and pin options > configuration : in this screen I tried with box checked/unchecked "Force Vccio to be compatible with configuration IO-voltage: but this gives no difference .... I don't see anything else I that relates to Vccio 0 config pins ? ?

    Regards,

    Stefan

    • ShafiqY_Intel's avatar
      ShafiqY_Intel
      Icon for Frequent Contributor rankFrequent Contributor
      5 years ago

      Hi Stefan,

      The issue is the configuration pins are powered by different Vccio.

      Have you tried use the same voltage for I/O bank 1B and I/O bank 8? If yes, is it able to solve the issue?

      Thanks

    • SVran's avatar
      SVran
      Icon for New Contributor rankNew Contributor
      5 years ago
      ​Hello shafiq, PCB-layout is ongoing and I need to be sure that Vccio-1b and Vccio-8 do NOT need to be the same volage. Why should banks 1b and 8 need to have the same voltage as they have different Vccio-pins ? Vccio-1b = 1.8V because jtag pins are wired to a 1.8V powered device. Vccio-8 = 3.3V because bank8 pins are wired to 3.3V devices Changing this will impact my design and pcb-layout. Either can you confirm that Vccio-1b and Vccio-8 are allowed to be different voltage ? Or tell me how to suppress this warning ID=169202 ? Regards, Stefan
    • ShafiqY_Intel's avatar
      ShafiqY_Intel
      Icon for Frequent Contributor rankFrequent Contributor
      5 years ago

      Hi Stefan,

      I'm apologize to take so much time to get the confirmation regarding to this issue. I tested on my side and get the further confirmation from my colleague.

      The rule of thumb: The VCCIO for bank 1B (bank 1 for 10M02 devices) and bank 8 must be powered up to a voltage between 1.5V – 3.3V during configuration.

      Thus, as long as your Bank 1B & Bank 8 is powered up between that range, you are allowed to have different voltage or same voltage.

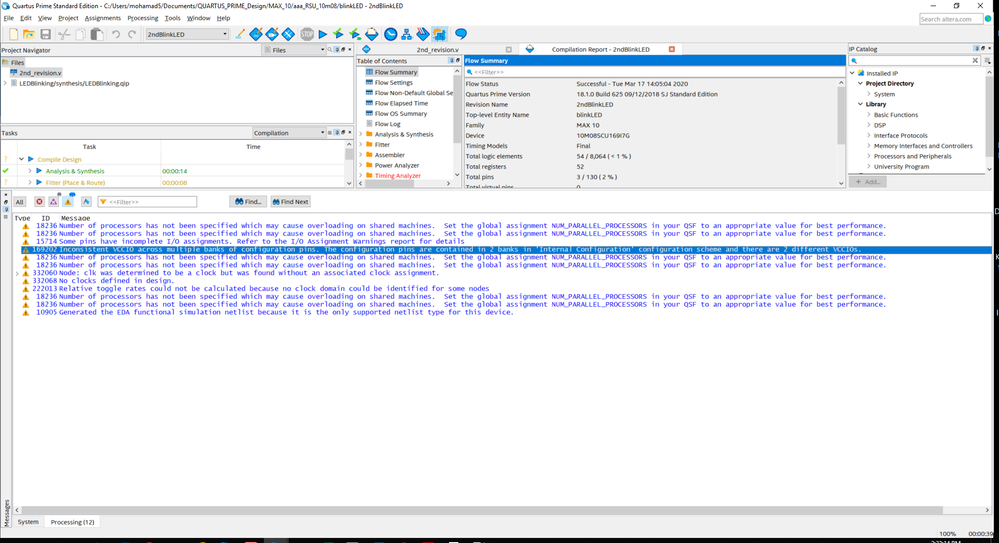

      When I did the duplication on my side, I also got the same warning as yours:

      Actually the warning that you get[Warning (169202)], is the false warning from Quartus. Quartus software Team will fixed it this false warning in future Quartus release.

      You may refer to this KDB:

      https://www.intel.com/content/www/us/en/programmable/support/support-resources/knowledge-base/tools/2018/-warning--169202---inconsistent-vccio-across-multiple-banks-of-c.html?wapkw=warning%20169202

      I'm apologize for inconvenience.

      Thanks
