JTAG Configure problem on Brand New STRATIX 10L DVK during Manual & BTS based Programming

We brought new S10 board and that reached Bangalore yesterday. DVK Mouser Link: https: //www.mouser.in/ProductDetail/Intel/DK-SOC-1SSX-L-D?qs=sGAEpiMZZMurtJ7VwBTl0eTtlnPkllW0UmtfpqDzeaJsCzBDaKA6dA...
YuanLi_S_Intel's avatar
YuanLi_S_Intel
Icon for Regular Contributor rankRegular Contributor
4 years ago

Hi,


Can you try to change the QSF setting to below?

set_global_assignment -name USE_PWRMGT_SCL SDM_IO0

set_global_assignment -name USE_PWRMGT_SDA SDM_IO16

set_global_assignment -name PWRMGT_BUS_SPEED_MODE "100 KHZ"


set_global_assignment -name PWRMGT_SLAVE_DEVICE_TYPE LTM4677

set_global_assignment -name PWRMGT_PAGE_COMMAND_ENABLE ON

set_global_assignment -name PWRMGT_VOLTAGE_OUTPUT_FORMAT "AUTO DISCOVERY"

set_global_assignment -name PWRMGT_TRANSLATED_VOLTAGE_VALUE_UNIT VOLTS


set_global_assignment -name PWRMGT_SLAVE_DEVICE0_ADDRESS 47

set_global_assignment -name PWRMGT_SLAVE_DEVICE1_ADDRESS 00

set_global_assignment -name PWRMGT_SLAVE_DEVICE2_ADDRESS 00

set_global_assignment -name PWRMGT_SLAVE_DEVICE3_ADDRESS 00

set_global_assignment -name PWRMGT_SLAVE_DEVICE4_ADDRESS 00

set_global_assignment -name PWRMGT_SLAVE_DEVICE5_ADDRESS 00

set_global_assignment -name PWRMGT_SLAVE_DEVICE6_ADDRESS 00

set_global_assignment -name PWRMGT_SLAVE_DEVICE7_ADDRESS 00


Regards,

Bruce


MIT_R_D's avatar
MIT_R_D
Icon for Occasional Contributor rankOccasional Contributor
4 years ago

Hi Bruce,

Thanks for the response.

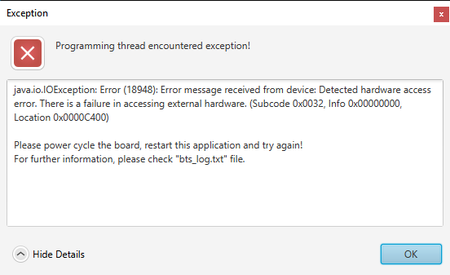

We changed the QSF setting and tried. But outcome is same(Still we are getting same errors during programming).
