Hello everyone my name is Paul,

At the moment I'm working on the DE0 nano soc card from Terasic and I'm trying very hard to program a frequency counter, to be clearer, I started to do it but I'm stuck because I don't get not the expected output results.

I come to you for assistance. I will post my vhdl file and the one in c below my question.

Thank you.

library ieee;
use ieee.std_logic_1164.all;
use IEEE.numeric_std.all;
use ieee.std_logic_signed.all;

entity Recepteur is
port (
RSTn : in std_logic;
CLK : in std_logic;
REG : out std_logic_vector(7 downto 0);
INPUT: in std_logic
);

end entity;

Architecture behavior of Recepteur is

signal clear: std_logic := '0';
begin
proc_clear : process(RSTn,CLK,INPUT)
variable val : std_logic := '0';
begin
if RSTn = '0' then
clear <= '0';
elsif (falling_edge(CLK)) then -- front descendant
clear <= '0';
if (INPUT = '1') and (val='0') then
clear <= '1';
end if;
val := INPUT;
end if;
end process;

proc_REG : process(RSTn,CLK)
variable COUNT : natural := 0;
constant MINVAL8 : std_logic_vector(7 downto 0) := "01010000";
constant MINVAL: natural := to_integer(unsigned(MINVAL8));
begin
if RSTn = '0' then
COUNT := 0;
REG <= (others =>'0');
elsif clear = '1' then
if (COUNT - MINVAL) >= 0 then
REG <= std_logic_vector(to_unsigned(COUNT - MINVAL,8));
end if;
COUNT := 0;
elsif (rising_edge(CLK)) then
if (COUNT - MINVAL) < 255 then
COUNT := COUNT + 1;
end if;
end if;

#define soc_cv_av
#define DEBUG
#include <stdio.h>
#include <unistd.h>
#include <stdint.h>
#include <fcntl.h>
#include <sys/mman.h>
#include "hwlib.h"
#include "soc_cv_av/socal/socal.h"
#include "soc_cv_av/socal/hps.h"
#include "soc_cv_av/socal/alt_gpio.h"
#include "hps_0.h"
#define HW_REGS_BASE ( ALT_STM_OFST )
#define HW_REGS_SPAN ( 0x04000000 ) //64 MB with 32 bit adress space this is 256 MB
#define HW_REGS_MASK ( HW_REGS_SPAN - 1 )

//setting for the HPS2FPGA AXI Bridge
#define ALT_AXI_FPGASLVS_OFST (0xC0000000) // axi_master
#define HW_FPGA_AXI_SPAN (0x40000000) // Bridge span 1GB
#define HW_FPGA_AXI_MASK ( HW_FPGA_AXI_SPAN - 1 )

int main() {

//pointer to the different address spaces
void *virtual_base;
void *axi_virtual_base;
int fd;
void *h2p_lw_reg3_addr;
void *h2p_led_addr; //led via AXI master

// map the address space for the LED registers into user space so we can interact with them.
// we'll actually map in the entire CSR span of the HPS since we want to access various registers within that span
//nous allons en fait cartographier l'ensemble de la plage CSR du HPS puisque nous voulons accéder à divers registres au sein de cette plage

if( ( fd = open( "/dev/mem", ( O_RDWR | O_SYNC ) ) ) == -1 ) {
printf( "ERROR: could not open \"/dev/mem\"...\n" );
return( 1 );
}
//lightweight HPS-to-FPGA bridge
virtual_base = mmap( NULL, HW_REGS_SPAN, ( PROT_READ | PROT_WRITE ), MAP_SHARED, fd, HW_REGS_BASE );

if( virtual_base == MAP_FAILED ) {
printf( "ERROR: mmap() failed...\n" );
close( fd );
return( 1 );
}

//HPS-to-FPGA bridge
axi_virtual_base = mmap( NULL, HW_FPGA_AXI_SPAN, ( PROT_READ | PROT_WRITE ), MAP_SHARED, fd,ALT_AXI_FPGASLVS_OFST );

if( axi_virtual_base == MAP_FAILED ) {
printf( "ERROR: axi mmap() failed...\n" );
close( fd );
return( 1 );
}
//the address of the two input (reg1 and reg2) registers and the output register (reg3)
h2p_lw_reg3_addr=virtual_base + ( ( unsigned long )( ALT_LWFPGASLVS_OFST + PIO_REG3_BASE ) & ( unsigned long)( HW_REGS_MASK ) );
printf( "\n\n\n----------- PIO_REG1_BASE -------------\n\n" );

while(1){
printf( "Recepteur REG %d\n", *((uint32_t *)h2p_lw_reg3_addr));
sleep(1);
}
if( munmap( virtual_base, HW_REGS_SPAN ) != 0 ) {
printf( "ERROR: munmap() failed...\n" );
close( fd );
return( 1 );
}
if( munmap( axi_virtual_base, HW_FPGA_AXI_SPAN ) != 0 ) {
printf( "ERROR: axi munmap() failed...\n" );
close( fd );
return( 1 );
}
close( fd );

return( 0 );
}

end process;
end behavior;

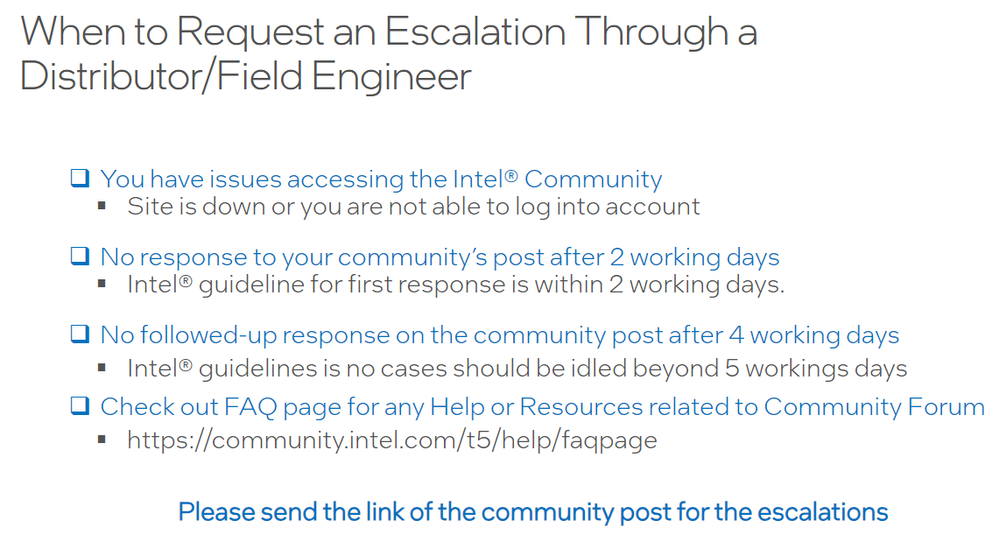

What recourse is there when there is no (first) response to (multiple) Community posts after 14 DAYS?
