Incorrectly wired JTAG for Cyclone V (5CSEBA4U23C8SN)

Hello,

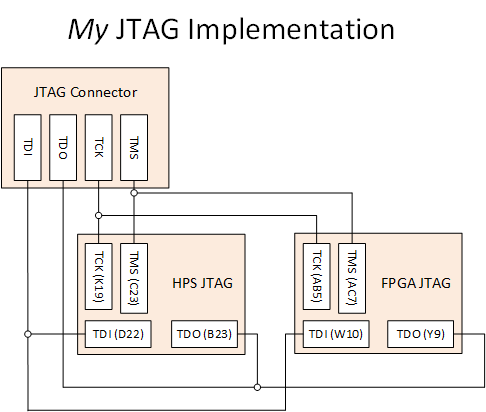

I am a board designer and have made a mistake wiring my JTAG. I have connected all of my TDIs together and all of my TDOs together. Below is a diagram of my incorrect JTAG connections:

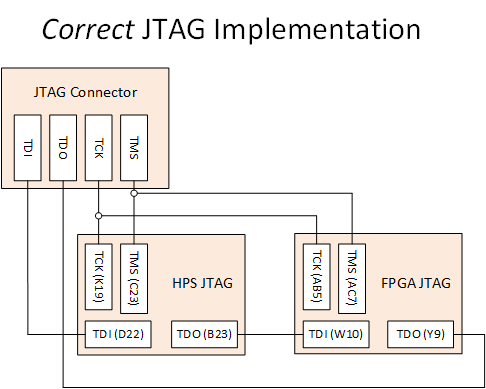

Below is a diagram of the correct JTAG implementation:

Is there a way to change the pin routing so I can connect TDO (B23) to TDI (W10)?

Thanks,

Ethan

  • WZ2's avatar
    WZ2
    2 years ago

    Hi there,

    The JTAG pin is stable, there is no way to change~
