How to use WYSIWYG primitive cycloneive_crcblock in EP4CE55F23I7?

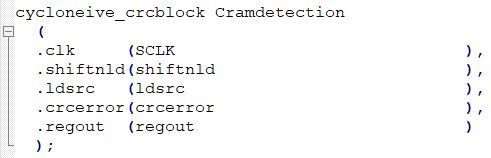

Recently, I want to analyze the SEU flip in the CRAM of the cyclone4 chip. I instantiated the cycloneive_crcblock primitive in my project, and the whole project synthesis successfully. But when I want to grab these input and output signals (shiftnld, ldsrc, crcerror, regout) in primitives in SingalTap, I find that these signals are not found at all. However I can find the signal named after this primitive block instantiation in SignalTap. For example, I named this primitive instantiation 'Cramdetection', and I can find a single bit signal called 'Cramdetection.

That's all my questions, thanks all.

3 Replies

  • ShengN_altera's avatar
    ShengN_altera
    Icon for Super Contributor rankSuper Contributor
    3 years ago

    Hi,


    Go to new instance -> add nodes -> node finder -> search for * -> list and you should see all the available signals. I don't think Cramdetection is equivalent to the signal crcerror because it's just a given block name. As for user logic you may check this link https://www.macnica.co.jp/business/semiconductor/support/faqs/intel/139528/


    Best Regards,

    Sheng
