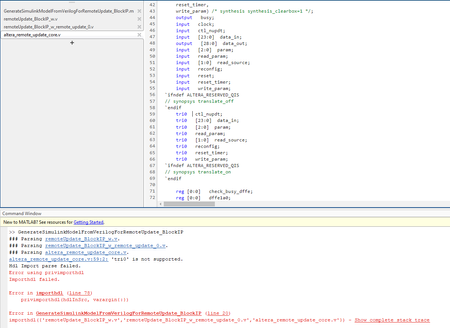

HDL import not supported for tri0

Hi, I am seeking some input for the following scenario. I have recently used Quartus to create a Remote Update module using Verilog. The plan was to import this into Simulink, because our firmware ...
Configuration
Generic Io
ShengN_altera's avatar
ShengN_altera
Icon for Super Contributor rankSuper Contributor
1 year ago

Hi,


The altera_remote_update_core.v is the core file of the Remote Update IP which can't be simply modified.


The RSU internal circuity can be used in Quarus Prime Lite edition as well. I think the options under the Assignments tab 'Greyed' out due to no project being opened. Please refer to this manual link https://www.intel.com/content/www/us/en/docs/programmable/683695/19-4-19-1-0/enabling-remote-system-upgrade-circuitry-61263.html, the devices available are Arria 10, Cyclone 10 GX, Arria II, Arria V, Cyclone V, Stratix IV, Stratix V, Cyclone IV, Intel Cyclone 10 LP


Thanks,

Regards,

Sheng
