Honored ContributorExecute gate level simulation, the read empty signal of the FIFO is unknown
http://www.alteraforum.com/forum/attachment.php?attachmentid=11743&stc=1

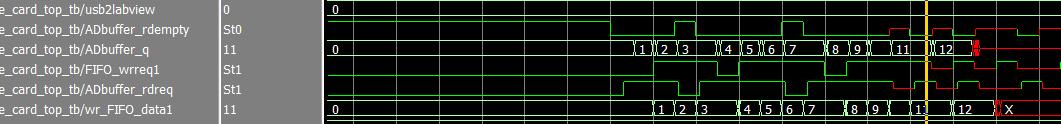

simulation:gate level simulation Where,the ADbuffer rdempty signal is the rdempty pin of the FIFO ,I don't know why the signal turs to an unknown state after some time.2 Replies
Altera_ForumAre you accidently driving ADbuffer_rdempty from the testbench?
- Altera_Forum
always@(negedge clk or negedge rst_n)
begin if (~rst_n) begin ADbuffer_rdempty_r1 <= 1'b0; end else if(~ADbuffer_rdempty) begin ADbuffer_rdempty_r1 <= ~ADbuffer_rdempty; end else begin ADbuffer_rdempty_r1 <= ADbuffer_rdempty_r1; end end assign ADbuffer_rdreq = ADbuffer_rdempty_r1 & (!ADbuffer_rdempty); ADbuffer_rdempty is the rdempty signal of the FIFO. The wrclk of the FIFO is 80MHz,and the rdclk of the FIFO is 125MHz，when the FIFO is not empty ,I will read the data in the FIFO. The Verilog code above is the rdreq created .
