New ContributorDedicated SERDES usage for ADC LTC2387-18 with Cyclone V?
Hi,
I plan to use Cyclone V with ADC LTC2387-18 (15 Msps, 18 bit).

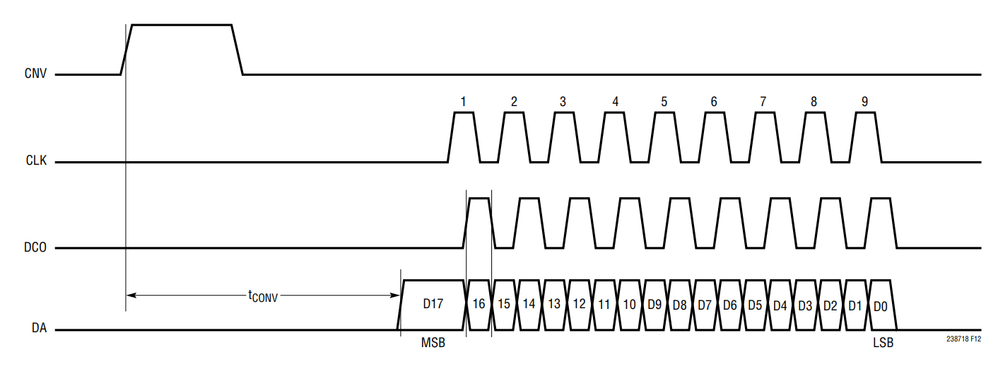

Timing diagram of ADC’s digital interface is shown below.
CNV and CLK are generated from FPGA (CNV is planned to be latched externally on the board using D-trigger in order to reduce jitter), and DCO and data (DA) are sent from the ADC.
What I want is to use IP core in order to exploit dedicated resources and latch data correctly, for example SERDES – ALTLVDS_RX core. But there is an issue - DCO signal has interruptions, it doesn’t switch permanently, that means we can't use ALTLVDS_RX core as I understand, because PLL could lose lock, and lock time is very uncertain – up to 1 ms according to Cyclone V datasheet. As I understand, we can’t use ALTLVDS_RX without PLL, just clocking dedicated SERDES directly from DCO.
In that case we need to use internal FPGA resources – registers from LEs, I suppose. It is a bit strange if it is so. But maybe somebody had experience with such types of ADCs and can help me. Maybe there are ways for using SERDES with such DCO signal or another IP cores.
Thanks!
Vadim
Hi Vadim
I hope I understand your situation correctly.
Yes, the ALTLVDS_RX is tied with a PLL. If your design has limitation towards the PLL lock time on the spec, then you have to create logics to implement the receiver.
Unfortunately we don't have sample reference design for this logic creation. For recommendation, we can make use of shift register and parallel register to construct the LVDS receiver.
We shall always refer to "Design Guidelines" mentioned in the doc below:
https://www.intel.com/content/dam/www/programmable/us/en/pdfs/literature/hb/cyc/cyc_c51009.pdf
Thanks.
Eng Wei
