Carry chain on Cyclone V GX using a 1bit adder

Hello everyone,

I am new to the world of FPGAs, and I need to do a Time to Digital Converter, thus I would need to use a carry chain to precisely mesure time.

I tried a few different things:

- Using the "CARRY_SUM" primitive : I have no idea if I used it right, I basically took 5 of them and connected the cout of one to the cin of the next. It wasn't recognized as a carry chain at all by Quartus

- Using a 4 bit LPM_ADD_SUB: This actually kind of worked, but I would like to convert it to a 1 bit adder, and have 1 adder = 1 ALM, just for things to be easier.

Right now I have created a 1 bit LPM_ADD_SUB, and added it in a VHDL component as follows :

LIBRARY ieee;
USE ieee.std_logic_1164.all;

ENTITY carryChainElement IS
	PORT (
		a,b: IN std_logic;
		cin: IN std_logic;
		cout: OUT std_logic;
		sum: OUT std_logic
	);
END carryChainElement;

ARCHITECTURE RTL OF carryChainElement IS
	COMPONENT addSub
		PORT (
			dataa: IN std_logic_vector(0 downto 0);
			datab: IN std_logic_vector(0 downto 0);
			cin: IN std_logic;
			cout: OUT std_logic;
			result: OUT std_logic_vector(0 downto 0)
		);
	END COMPONENT;
BEGIN
	addSub1: addSub
		PORT MAP (
			dataa(0) => a,
			datab(0) => b,
			cin => cin,
			cout => cout,
			result(0) => sum
		);

END RTL;

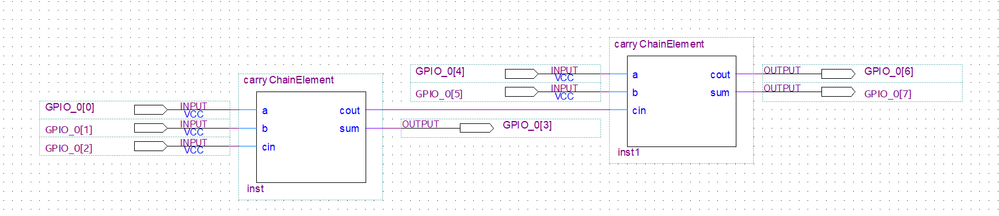

Then I added this component to my .bdf file like this (I added the input and output pins because if I put a constant value in a and b, then Quartus would have optimized it away, I also did the same in my other attemps with the CARRY_SUM primitive and the 4 bit adder) :

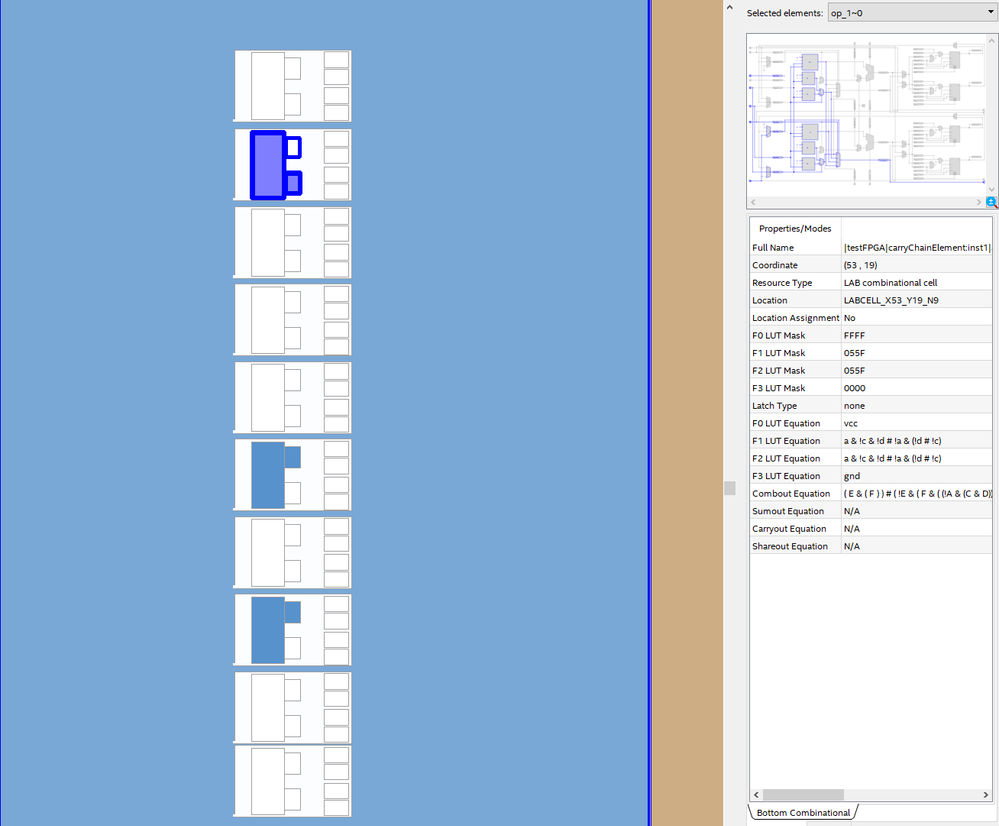

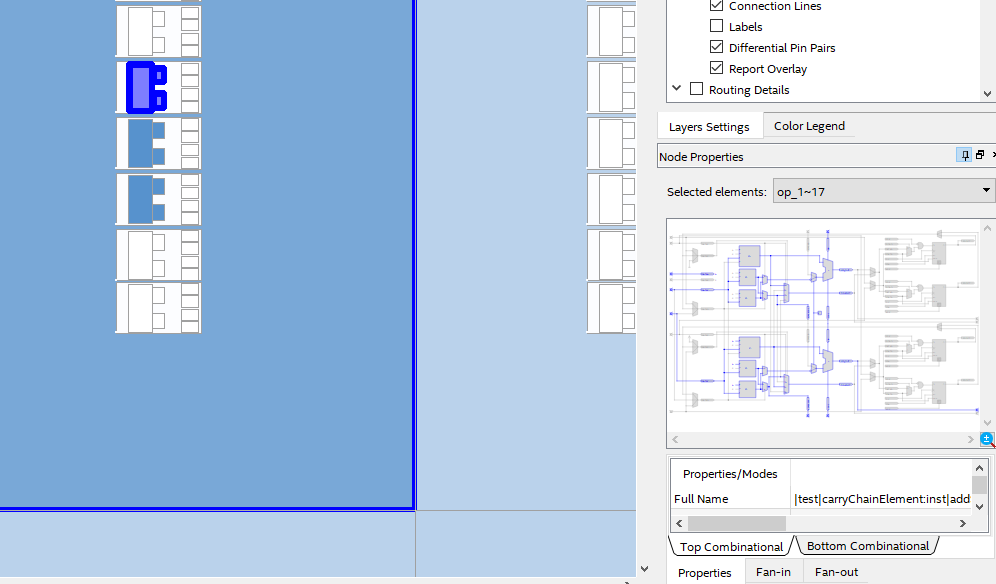

After the compilation, the chip planner gives me this result :

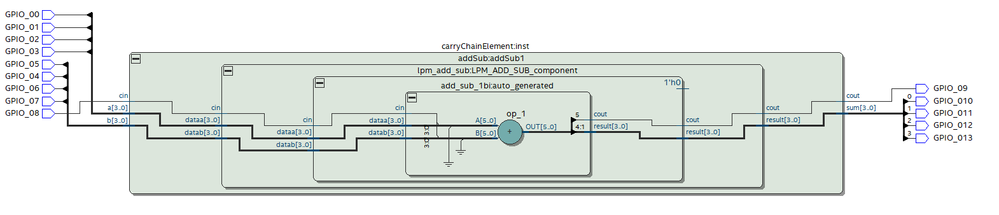

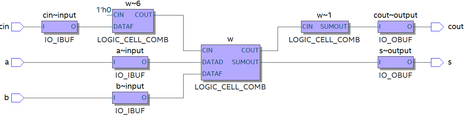

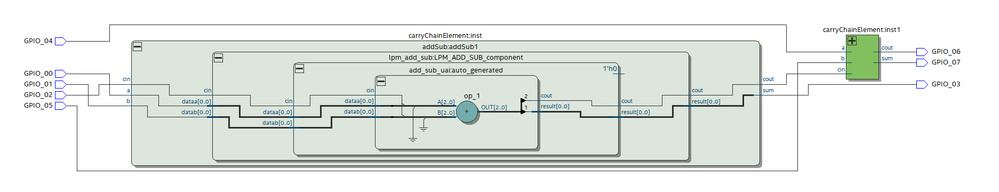

And finally, the RTL viewer looks like this :

As you can see, Quartus does not recognize it as a carry chain.

I have read the documentation on the Cyclone V, and I understand the concept of ALMs, Arithmetic mode, etc... I just don't know how to actually implement it.

Do anyone have any leads on how I could fix my current attemps with the 1bit adder ?

Thanks a lot,

Benjamin
