bug of SPI ss_n?

Software version：Quartus Prime Lite Edition 18.1

I would like to let DE0-Nano be a SPI Master to control 3 SPI slave.

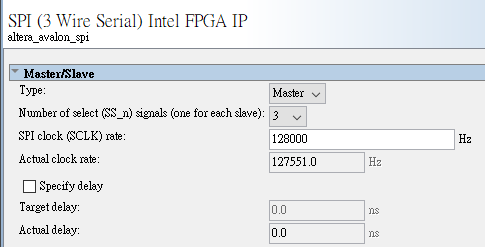

I add SPI IP and set ss_n as 3.

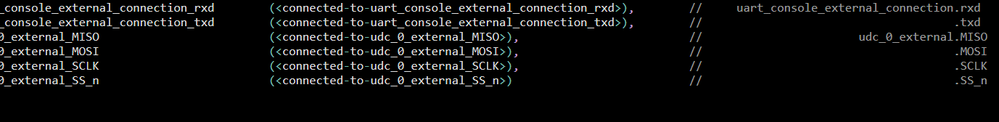

After generating verilog file, there is only one xx_external_SS_n in xxx_inst.v for user.

Is it a bug?

 

 

2 Replies

  • Eliath_G_Intel's avatar
    Eliath_G_Intel
    Icon for Occasional Contributor rankOccasional Contributor
    5 years ago

    Hi!


    First of all, thanks for reaching us,


    regarding your question, the reason why it seems to be just one xx_external_SS_n in the *_inst.v file it's because appears as an array, not as individual connections.

    if you navigate to Soc_system -> synthesis ->submodule_spi.v you'll find that its declared as 'output wire [2:0] spi_o_external_ss_n'.


    Please let me know any questions you may have.


    Regards,

    -Eliath Guzman


    • CPaul10's avatar
      CPaul10
      Icon for New Contributor rankNew Contributor
      5 years ago

      Thanks for your reply.

      I defined the pin as 2 bits, and it works well.

      Many thanks.
