Arria10 POR trip level

Hi there

We use 4 pcs 10AX057 in one board, one chip met AS configuration failure occasionally when powered up. Now I doubt the power up sequence maybe out of spec.

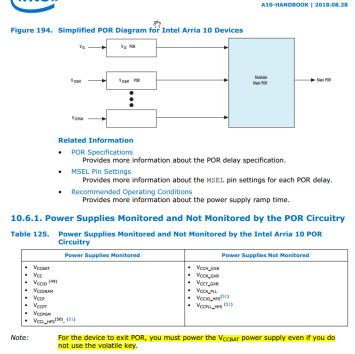

(1)Would like to ask what is the POR trip voltage levels for all the powers that monitered by POR circuit? Is it 90% of nominal voltage?

I will need to measure the POR delay time, which is the time interval between the last VCCIO trip level and nSTATUS pin.

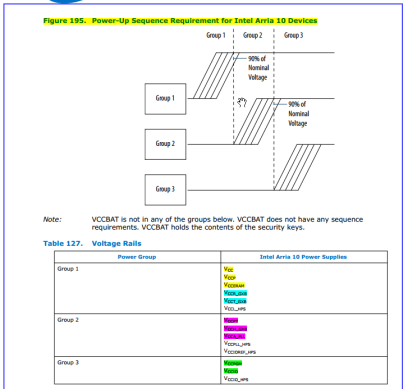

In our sustem, VCC=VCCP=VCCERAM =0.95V, VCCPT=VCCPGM=VCCBAT=VCCIO=1.8V.

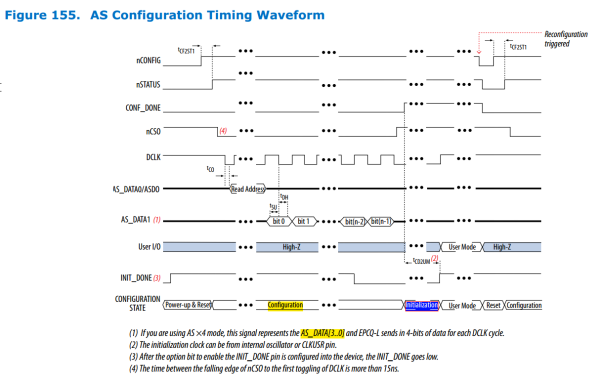

I measured nCSO pin (Micron MT25 series flash chip) begin to toggle low repeatedly when the VCCPGM_1.8V power ramps to about 1.2V, I think this is incorrect.

(2) this troubleshooter link seems not working: (https://www.intel.com/content/www/us/en/support/programmable/support-resources/configuration/troubleshooting.html#), if you click the 8th item "

• The nCONFIG and/or nSTATUS pins do not release high after the device is powered up ›

", it still stay in this webpage. pls help check. Thanks.
