Arria 10 IBIS AMI model selector for supporting VOD setting 12.

Hello,

I had arria 10 IBIS_AMI model and try to simulate transceiver output with "A10_V12_R100_SLEW4" model selector option.

I am using HyperLynx.

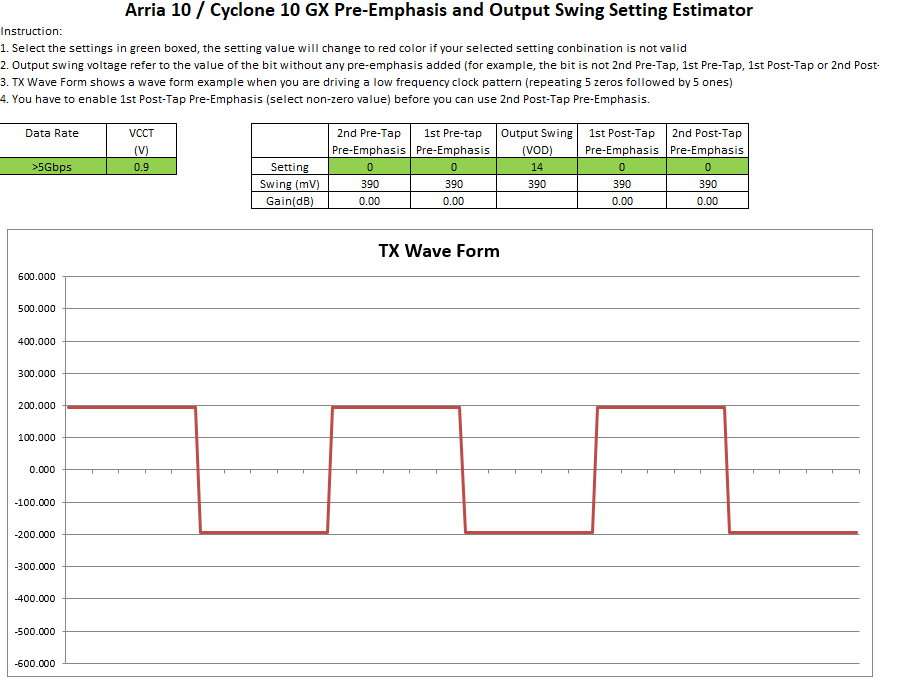

By the excel file(arria-10-cyclone-10gx-pre-emphasis-and-output-swing-settings.xlsx) from Intel, I expect 330mVp-p output w/o no pre and post tap.

But I always have 1Vp-p at the transceiver output with HyperLynx tool.

please let me know how I could have consistent result between excel file and Arria10 IBIS-AMI with HyperLynx.

7 Replies

  • Vincent222's avatar
    Vincent222
    Icon for New Contributor rankNew Contributor
    3 years ago

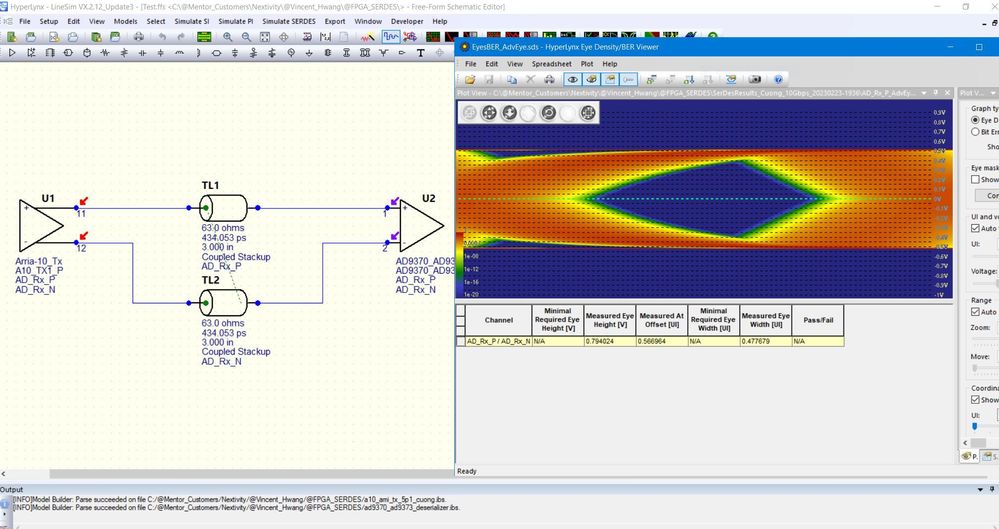

    the eye diagram from hyperlynx is above and always have the same amplitude.

  • Kshitij_Intel's avatar
    Kshitij_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi Vincent,


    There is a possibility the VOD has not been set as 12 even though you are setting it. Please check once are you correctly setting the VOD, VCCT and data rate?


    Thank you

    Kshitij Goel


  • Kshitij_Intel's avatar
    Kshitij_Intel
    Icon for Frequent Contributor rankFrequent Contributor
    3 years ago

    Hi,


    As we do not receive any response from you on the previous answer that we have provided. Please login to ‘https://supporttickets.intel.com’, view details of the desire request, and post a response within the next 15 days to allow me to continue to support you. After 15 days, this thread will be transitioned to community support. The community users will be able to help you on your follow-up questions.

    Thank you

    Kshitij Goel


    • Vincent222's avatar
      Vincent222
      Icon for New Contributor rankNew Contributor
      3 years ago

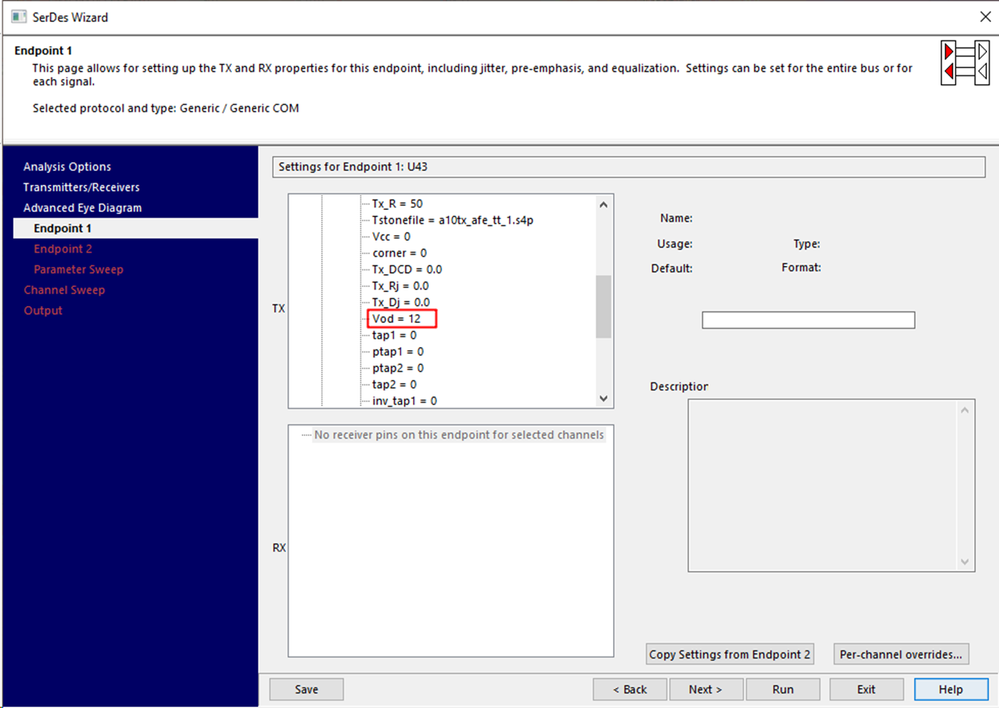

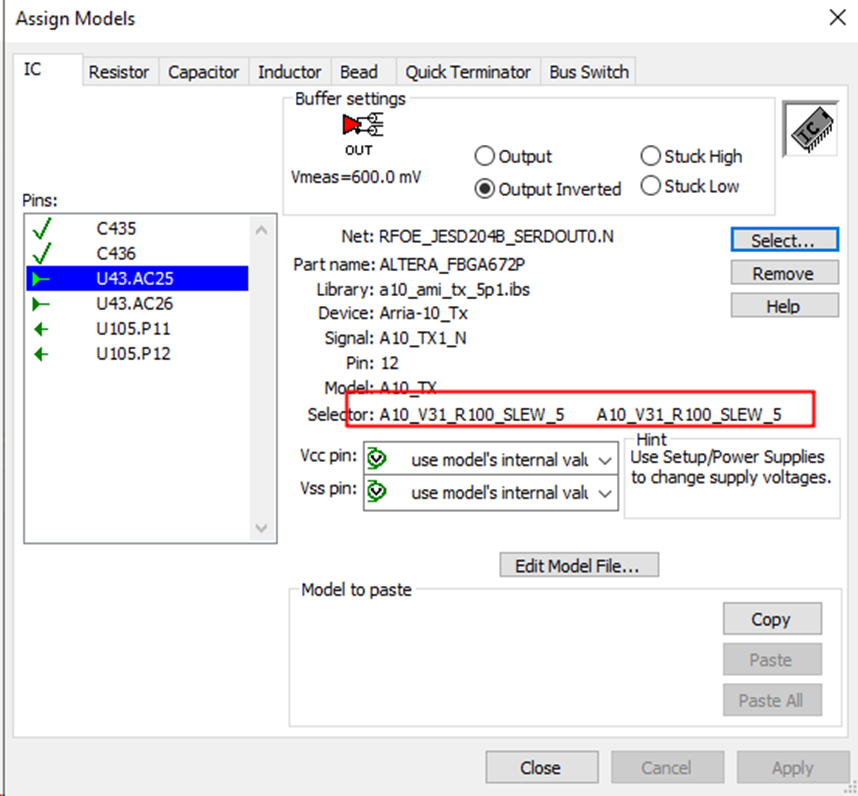

      I set VCCT, VCC and data rate correctly and changed VOD by selecting corresponding model by model selector.

      But I could not have any difference.

      DO you have any sim result with this IBIS_AMI model in any simulator to clarify the VOD amplitude?

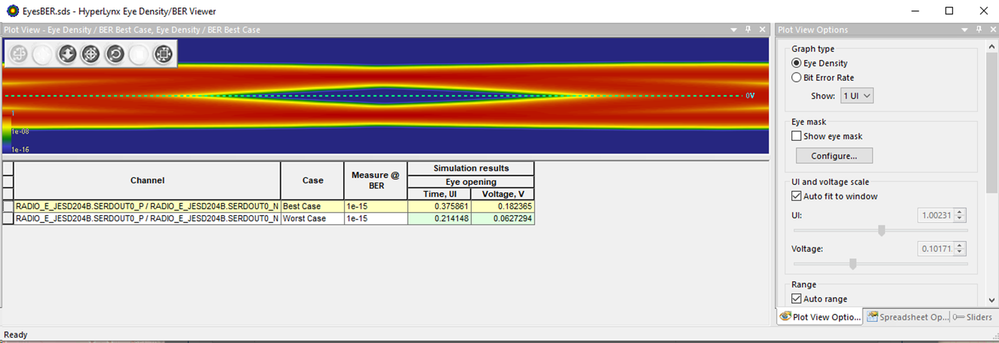

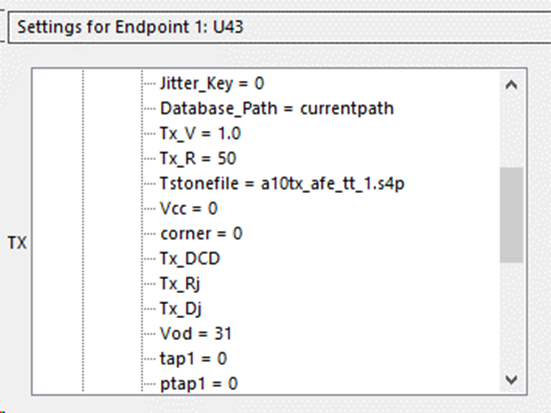

      eye diagram with A10_V31_R100_SLEW_5 are below..

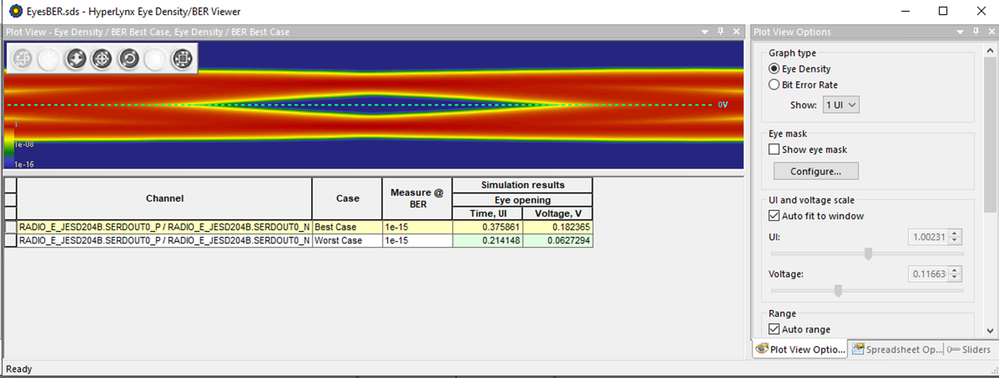

      eye diagram with A10_V12_R100_SLEW_5 are below..
