Any FPGA doc with pin overview on package?

When doing FPGA pin placement it is useful to have an image with overview of available pins on the package, to use pins in a way that reduce PCB routing. An example for is shown below for a non-Intel FPGA.

However, I have been unable to find a similar pin image overview of for example a Cyclone V FPGA device.

Is there any Intel FPGA documentation that gives an overview of the pins on the package on for example a Cyclone V FPGA device ?

Thanks in advance.

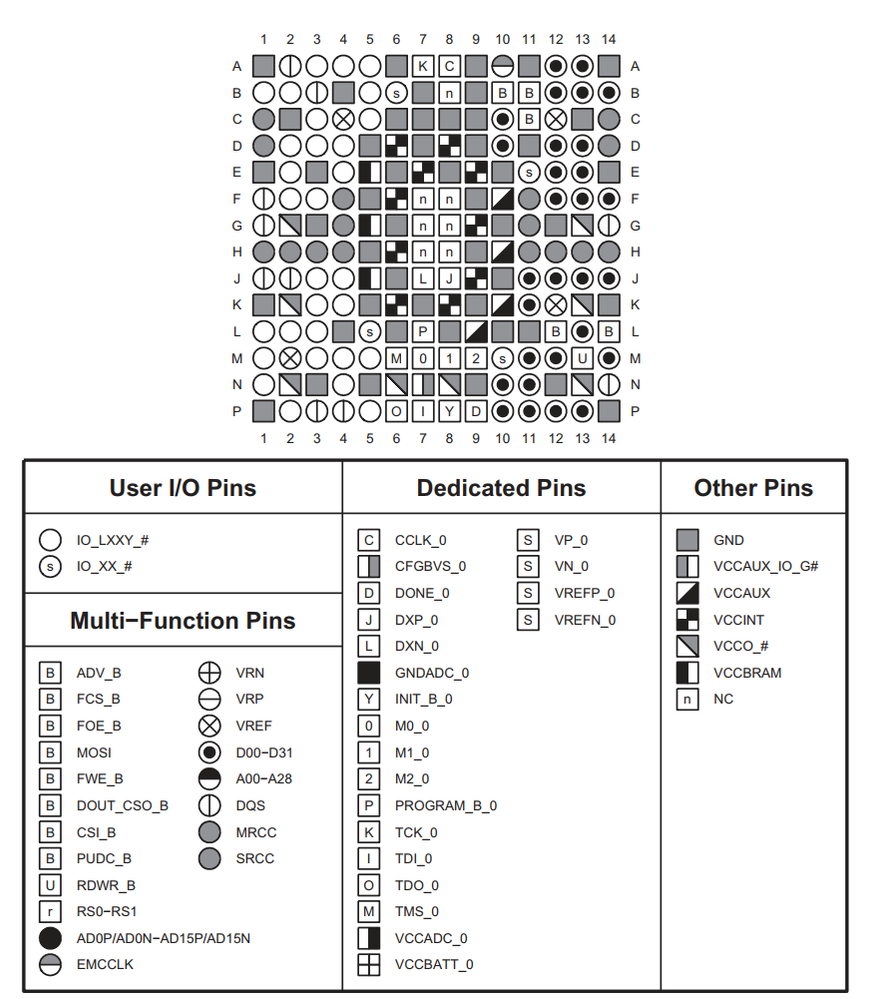

Image below shown pin location for a non-Intel FPGA.

3 Replies

  • sstrell's avatar
    sstrell
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    The Pin Planner tool from the Assignments menu in Quartus shows this exact view for performing pin placement and creating other I/O-related assignments.

  • NurAiman_M_Intel's avatar
    NurAiman_M_Intel
    Icon for Super Contributor rankSuper Contributor
    4 years ago

    I’m glad that your question has been addressed, I now transition this thread to community support. If you have a new question, feel free to open a new thread to get the support from Intel experts. Otherwise, the community users will continue to help you on this thread. Thank you.”


  • MoZdk's avatar
    MoZdk
    Icon for Occasional Contributor rankOccasional Contributor
    4 years ago

    Thanks, that is definitely usable for specific projects.

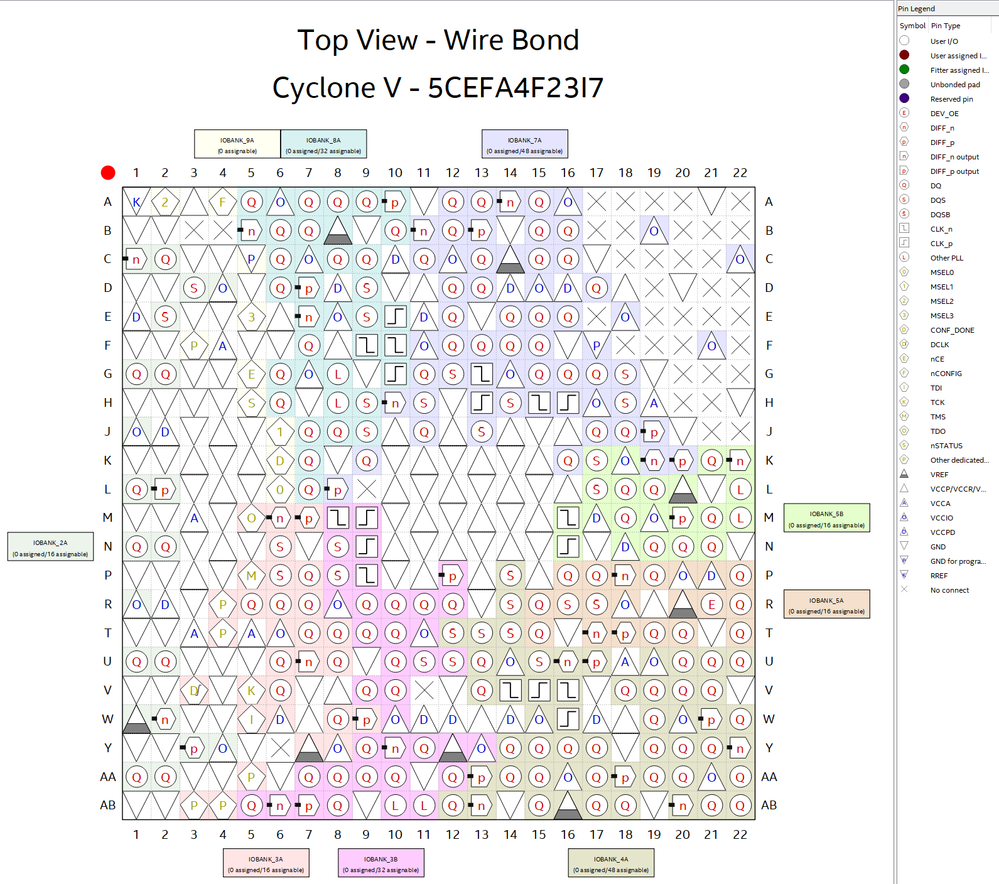

    Was able to get this nice picture, for reference:
