Forum Discussion
MoZdk
Occasional Contributor
Occasional ContributorAny FPGA doc with pin overview on package?

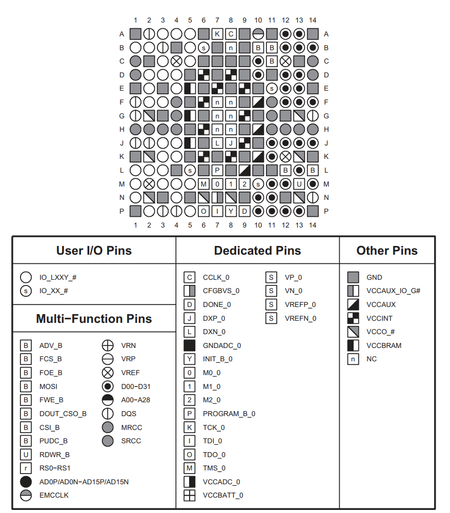

When doing FPGA pin placement it is useful to have an image with overview of available pins on the package, to use pins in a way that reduce PCB routing. An example for is shown below for a non-Inte...
sstrell
Super Contributor
Super ContributorThe Pin Planner tool from the Assignments menu in Quartus shows this exact view for performing pin placement and creating other I/O-related assignments.
